PT-5R/T IR Extender & Repeater
Please sign in so that we can notify you about a reply
The PT-5T and PT-5R are a Twisted pair Transmitter and Receiver for Infrared Signals. the Units Control Up to Five Devices Via theIR Own Remote Control IR Transmitters at Distances of Up to 250m (820ft) over Twisted pair Cable.
Features

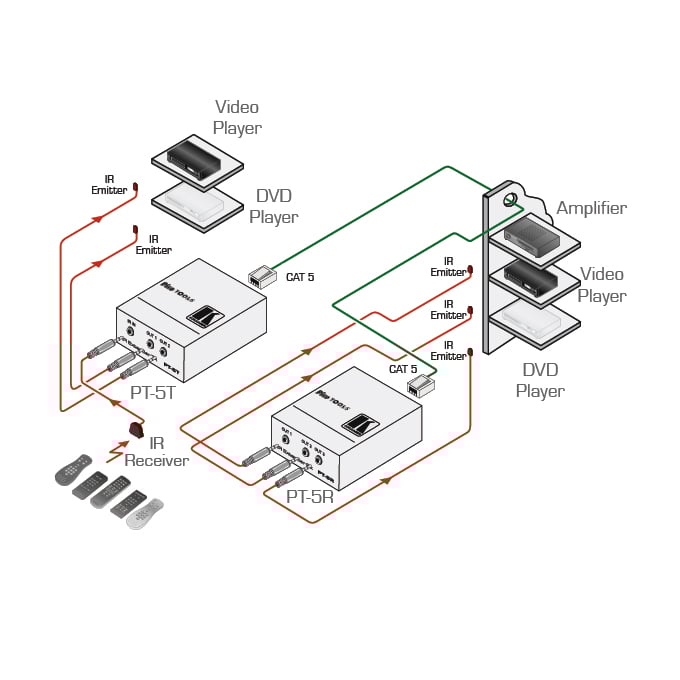

- Multi-Unit IR Control-Controls 2 Local and 3 Remote Devices (DVDs, amplifiers, air Conditioners, Etc.) Over Their IR Ports.
- Range-Up to 250m (820ft) Via Twisted Pair.
- Flexible Operation — Operates Devices That are Stacked away In Closets, Cabinets and Other Rooms.
- Pt–5t-Input: 1 IR Receiver On a 3.5mm Mini Jack;Outputs: 2 IR Emitters On 3.5mm Mini Jacks;1 Twisted Pair On an RJ-45 Connector.
- PT–5R-Input: 1 Twisted Pair On an RJ–45 Connector;Outputs: 3 Ir Emitters On 3.5mm Mini Jacks
- Cable — Utp (unshielded Twisted Pair) Or Stp (shielded Twisted Pair) Such as Cat 5.
- Sold as a Pair.
Brand:
Kramer
Part number:
30-000490
Product Type:
IR Extender & Repeater
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Multi-Unit IR Control, Flexible Operation, Cable-UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5, Sold as a Pair
Applications:
High-Quality Home Theatre Installations, Studios, Airports, Offices and Hospitals, Security and Military
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply, 1xIR Receiver with 2m Cable and 3.5mm Mini Jack, 5xIR Emitters with 2m Cables and 3.5mm Mini Jack
Storage Temperature Range:
-40 to +70°C
Inputs and Ports
Input Port Type:
1xIR Receiver, 3.5mm Mini Jack (PT-5T), 1 Twisted Pair RJ45 Connector (PT-5R)
Output Port Type:
2xIR Emitters on 3.5mm Mini Jacks, 1xTwisted Pair on a RJ45 Connector (PT-5T), 3xIR Emitters on 3.5mm Mini Jacks (PT-5R)
Dimensions
Width:
5cm
Depth:
6.6cm
Height:
2.3cm
Weight:
0.15kg
