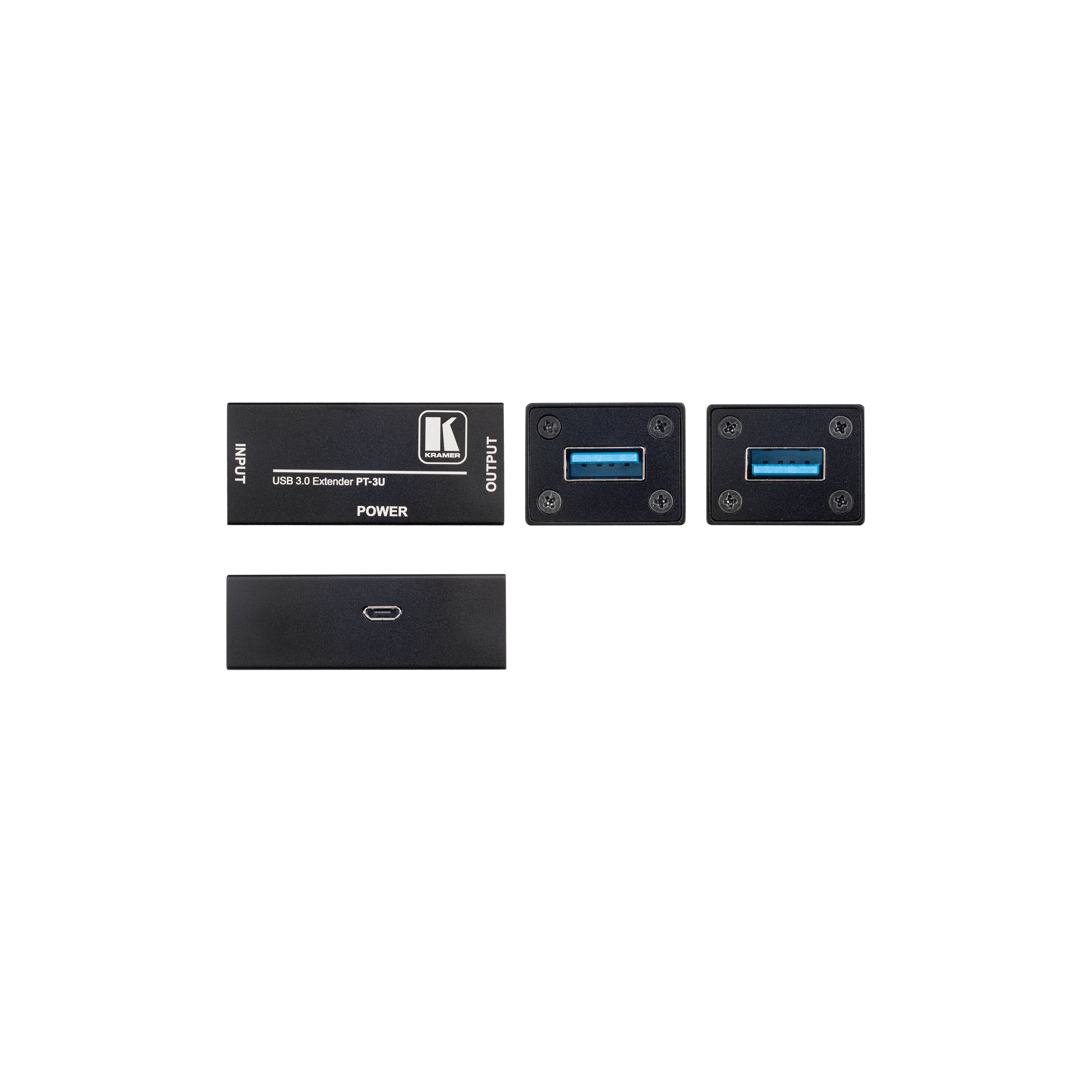

PT-3U Active USB 3.0 Extender
Please sign in so that we can notify you about a reply
PT−3U is an innovative active USB 3.0 extender that extends the USB cable distance between the host and the device by reclocking and equalizing the USB signal. Placing PT−3U in the transmission path, removes dropout and digital noise (sparkles) in your installation that may result from using long USB cables.
Features
- True Plug & Play — No additional driver program is needed.
- USB 3.0 Super Speed (5Gbps) Standard — Compliant with USB 3.0.
- Backwards Compatible — USB 2.0, 1.1
- Optional external power supply.
- Buffers incoming & outgoing signal.
- Certifications — CE, FCC, REACH, ROHS.
Brand:
Kramer
Part number:
50-00016290
Specifications
Product Type:
Active USB 3.0 Extender
Maximum Operating Temperature:
+60°C
Colour:
Black
Special Features:
True Plug & Play, USB 3.0 Super Speed (5Gbps) Standard, Backwards Compatible, Optional external power supply, Buffers incoming & outgoing signal
Humidity:
10 to 80%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +70°C
Inputs and Ports
Input Port Type:
USB 3.0: USB Type A Female Connector
Output Port Type:
USB 3.0: on a USB Type-A Female Connector
Dimensions
Width:
2.6cm
Height:
2cm
Other
Standards Met:
CE, FCC Compliant, REACH, RoHS Compliant
