PT-101H2 4K HDR HDMI Repeater
Please sign in so that we can notify you about a reply

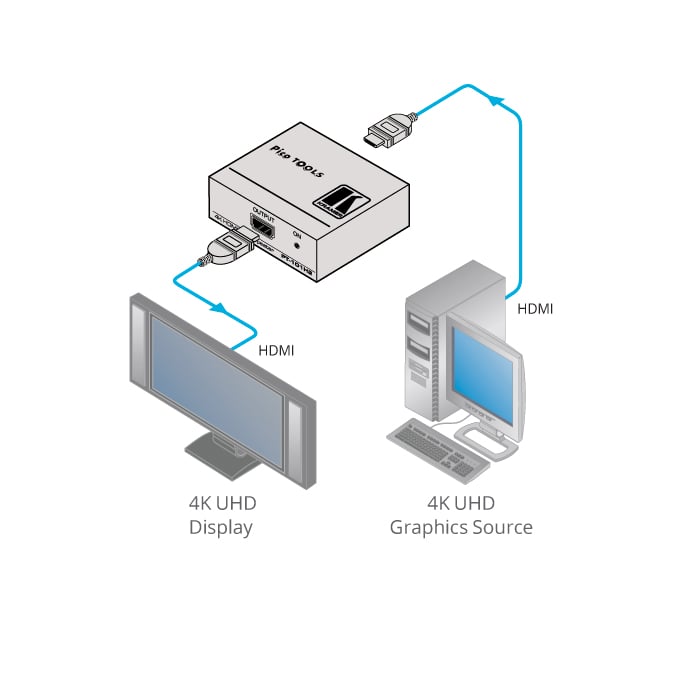

PT−101H2 is a high−performance 4K HDR repeater and extender for HDMI and HDCP 2.2 signals. For 4K@30Hz, it extends the range up to 20m (66ft) (15m to the input, 5m from the output).
Features
- Max. Resolution-4K @ 60hz (4:4:4).
- Range Extension-4K @ 60hz (4:4:4) Up to 10m (33ft), (5m On The Input to The Pt–101h2 and 5m On The Output);4K @ 30hz (4:4:4) Up to 20m (66ft) (15m On The Input to The Pt–101h2 and 5m On The Output).
- Max. Data Rate-17.82Gbps (5.94Gbps Per Data Channel).
- Kramer Equalization & Re–Klocking™ Technology-Rebuilds The Digital Signal to Travel Longer Distances.
- HDMI Output Power Follows Input.
- HDR (High Dynamic Range) Support.
- Transparent HDCP 2.2 Support.
Brand:
Kramer
Part number:
50-80409090
Product Type:
4K HDR HDMI Repeater
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Max. Resolution, Range Extension, Max. Data Rate-17.82Gbps (5.94Gbps per data channel), Kramer Equalization & re-Klocking™ Technology, HDMI Output Power Follows Input, HDR (High Dynamic Range) Support, Transparent HDCP 2.2 Support
Applications:
Home Theatre, Presentation and Multimedia, Rental and Staging, Education and Corporate
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply 5.2V DC/2A
Storage Temperature Range:
-40 to +70°C
Performance
HDMI Compliance Type:
1.4, 2.0
HDCP Compliance Type:
1.4, 2.2
Maximum Output Resolution:
Up to 4K@60Hz (4:4:4)
Inputs and Ports
Input Port Type:
HDMI
Output Port Type:
1xHDMI on An HDMI Connector
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
Other
Standards Met:
CE, RoHS Compliant, WEEE
