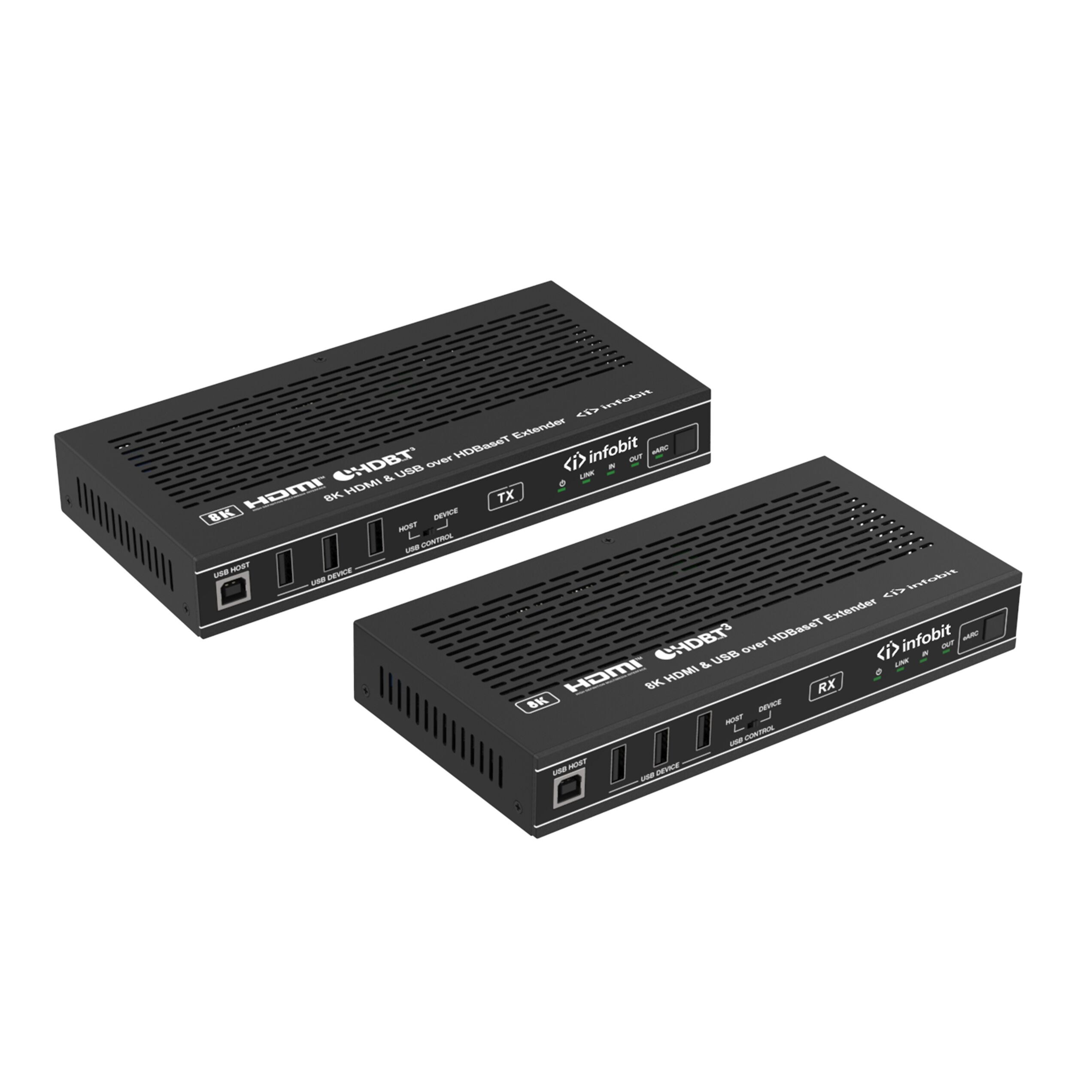

iTrans E90U8K HDMI 2.1 8K and USB over HDBaseT extenders (Tx and Rx), 90m for 8K/30Hz
Please sign in so that we can notify you about a reply
This 8K HDMI & USB over HDBaseT Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 90m/295ft via a single CAT6A/7 cable. Video resolution is up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, 4K60Hz 4:4:4. It supports eARC/ARC from RX's HDMI output pass-through to TX's HDMI input or de-embedding to TX's HDMI output port. Besides, it supports USB 2.0 signal transmission (Host/Device is configurable) and bidirectional POC function
Features- HDMI 2.1, HDCP 2.3 and HDBaseT 3.0 compliant
- Support up to 40Gbps FRL and 18Gbps TMDS video bandwidth
- Video resolution is up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
- Support all industry standard video resolutions including VGA-WUXGA and 480i-8K30
- VRR, FVA, ALLM support
- HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
- HDMI audio formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Signal transmission distance can be extended up to 90m/295ft via a single CAT 6A/7 cable
- Support eARC/ARC from RX to TX sound system
- Advanced EDID management through EDID DIP switch
Brand:
Infobit
Product Type:
HDBaseT Extender
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Bi-Directional 24V POC Function
Power Rating:
20.4W
Chassis Material:
Aluminium (Front Panel), Metal (Enclosure)
Applications:
Home, Commercial
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDBaseT Extender (Transmitter), 1xHDBaseT Extender (Receiver), 1xIR Blaster Cable (1.5 Meters), 1xIR Wideband Receiver Cable (1.5 Meters), 2x3Pin-3.81mm Phoenix Connectors, 4xMounting Ears, 8xMachine Screws (KM3*4), 8xRubber Feet, 1x24V/1A Locking Power
Storage Temperature Range:
-20 to +60°C
Performance
HDMI Compliance Type:
2.1
HDCP Compliance Type:
2.3
Maximum Input Resolution:
8K@30 (4:4:4) 10bit, 4K@120Hz (4:4:4) 10bit
Maximum Output Resolution:
8K@30 (4:4:4) 10bit, 4K@120Hz (4:4:4) 10bit
Output Signal Type:
RGB (4:4:4), YCbCr (4:4:4)/(4:2:2), YCbCr (4:2:0), Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos, DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X

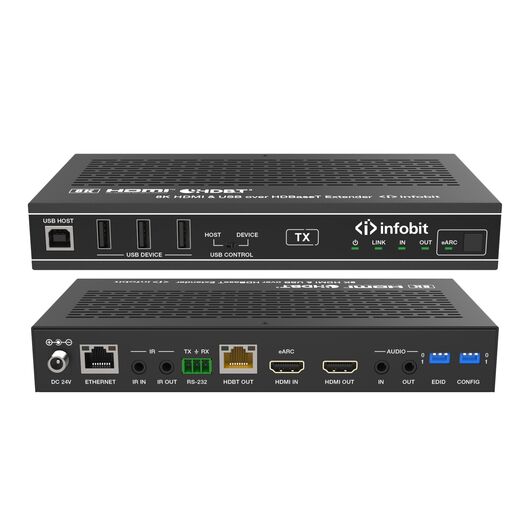

Inputs and Ports
Input Port Type:
1xHDMI, 1xAudio, 1xHDBT
Output Port Type:
1xHDMI, 1xHDBT, 1xAudio
I/O Interface Type:
RS232, RJ45
Number of Ports:
26
Input Signal Type:
RGB (4:4:4), YCbCr (4:4:4)/(4:2:2), YCbCr (4:2:0), Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos, DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
20cm
Depth:
10cm
Height:
3cm
Weight:
571g
Other
Standards Met:
US/EU Standards, CE/FCC/UL Certified
