iTrans E150SK HDMI 4K60 over HDBaseT extenders (Tx and Rx), 150m for 1080p, 120m for 4K/60Hz, KVM
Please sign in so that we can notify you about a reply

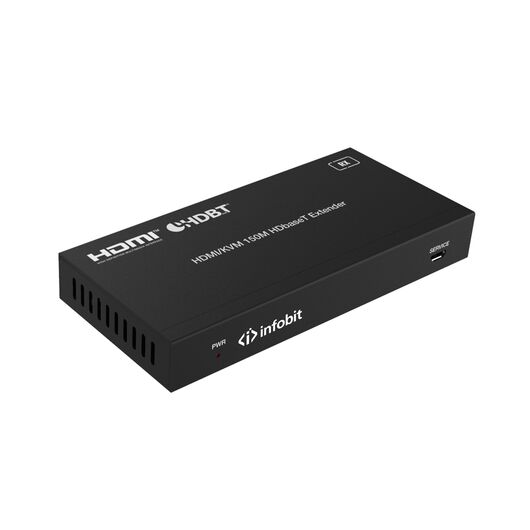

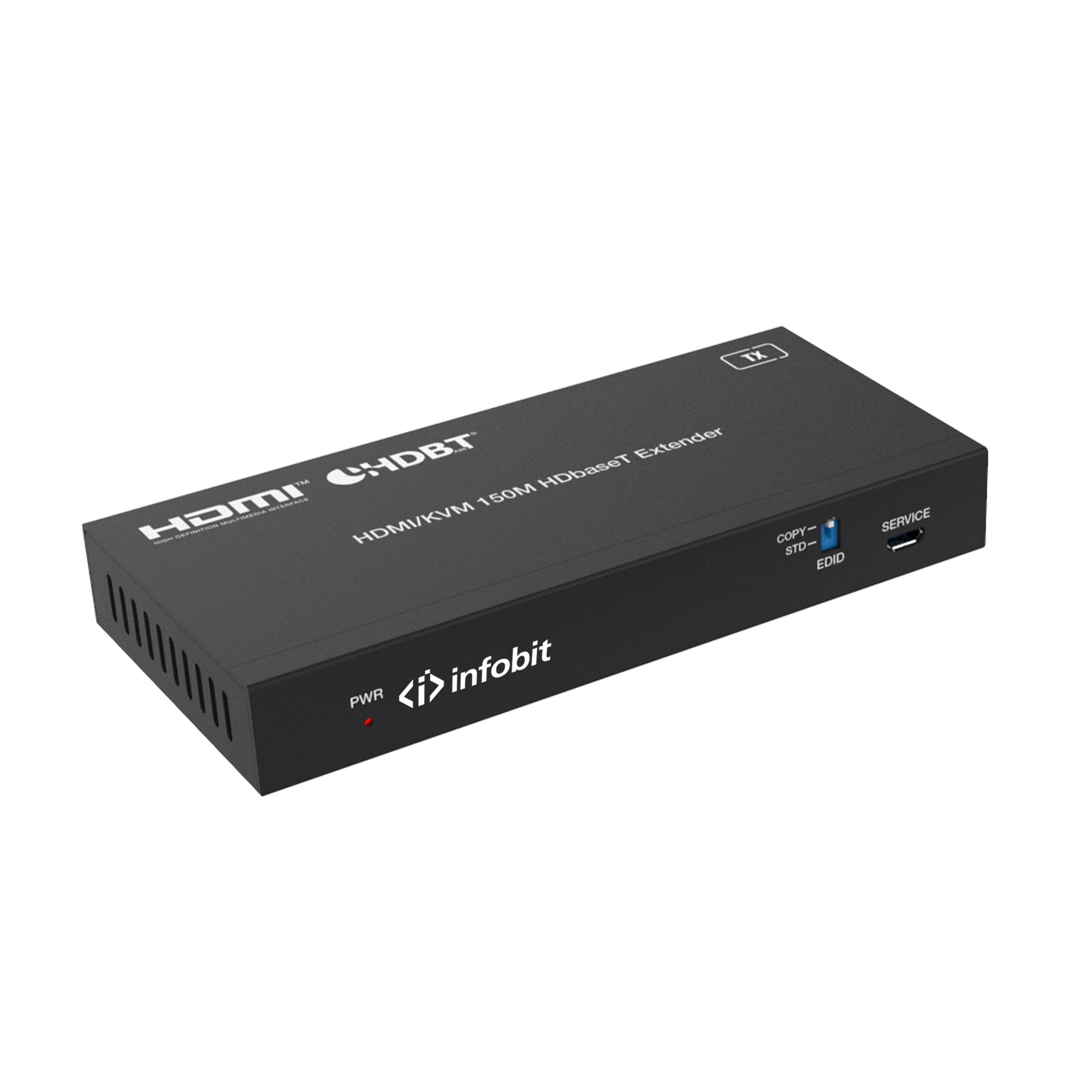

This 18Gbps HDBaseT Extender can extend HDMI signal, bi-directional IR control signal and USB KVM signal to a distance up to 150m via a single CAT6 cable. It converts HDMI signal to standard HDBaseT sign a land transmits it through LAN cable. It can easily control signal source device or display device from the remote end through bi-directional IR signal passthrough function. Video resolution up to 4K2K@60Hz YUV 4:4:4. It also supports USB KVM and POC function
Features- HDMI2.0b, HDCP 2.2 and USB 1.1 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz YUV 4:4:4
- The transmission distance can be extended up to 492ft / 150m at the resoution of 1080P@60Hz, or 394ft / 120m at 4K2K@60Hz 4:4:4 via a single CAT6 cable
- Support bi-directional IR signal and USB KVM signal pass-through
- Support bi-directional POC (Power over Cable) function
- Compact design for easy and flexible installation
Brand:
Infobit
Product Type:
HDBaseT Extender
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Service Port Type:
1xMicro USB
Special Features:
Compact Design for Easy and Flexible Installation
Power Rating:
10W
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x18Gbps HDBaseT Extender (Transmitter), 1x18Gbps HDBaseT Extender (Receiver), 1xIR Blaster Cable (1.5 meters), 1xIR Receiver Cable (1.5 meters), 1xUSB Cable (1.5 meters), 4xMounting Ears, 8xMachine Screws, 1x24V/1A Locking Power Supply, 1x User Manual
Storage Temperature Range:
-20 to +60°C
Performance
HDMI Compliance Type:
2.0b
HDCP Compliance Type:
1.4, 2.2
Maximum Input Resolution:
4K2K@60Hz YUV (4:4:4)
Maximum Output Resolution:
4K2K@60Hz YUV (4:4:4)
Output Signal Type:
RGB, YCbCr_(4:4:4), YcbCr_(4:2:2), LPCM 7.1CH, Dolby True HD, and DTS-HD Master, HDR, HDR10, HDR10+, Dolby Vision, HLG
Inputs and Ports
Input Port Type:
1×HDMI, 1×IR, 1×HDBT, 1xUSB
Output Port Type:
1×HDBT, 1×IR, 1×HDMI, 2×USB
I/O Interface Type:
RJ45
Number of Ports:
13
Input Signal Type:
RGB, YCbCr_(4:4:4), YcbCr_(4:2:2), LPCM 7.1CH, Dolby True HD, and DTS-HD Master, HDR, HDR10, HDR10+, Dolby Vision, HLG
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
14cm
Depth:
6.5cm
Height:
1.8cm
Weight:
246g
Other
Warranty:
3 year
