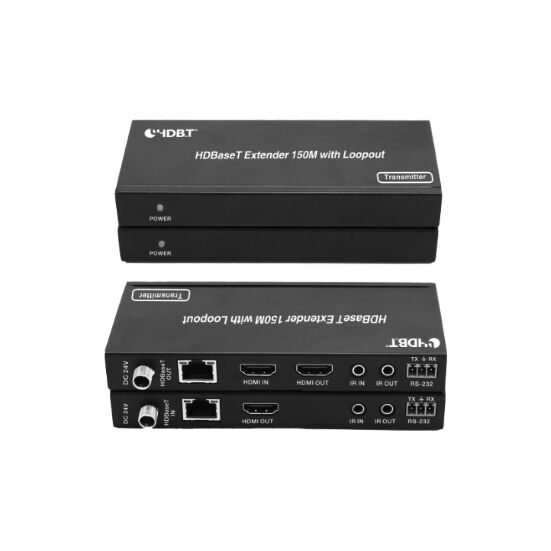

iTrans E150CL HDMI over HDBaseT extenders (Tx and Rx), 150m for 1080p. Loopout, Tx and Rx sold in pair
Please sign in so that we can notify you about a reply
The HDMI Extender with Loopout can extend HDMI signal over 500 feet/150 meters to an HDMI compatible display via single Cat5e/6 cable. It also supports bi-directional Infrared control signal and RS-232 transmission together with HDMI signal, it allows you to easily control your DVD player at TV side or control your TV at the DVD player side when using this extender.
Features- HDMI 1.4, HDCP 1.4 and DVI compliant
- Video resolutions up to 1080p@60Hz (YUV4:4:4)
- HDMI High Bit Rate(HBR) audio pass through
- 150 meters transmission distance over CAT6 cable
- POC (Power over Cable), either TX or RX is powered by one 24V@1A power supply
Brand:
Infobit
Product Type:
HDBaseT Extender
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Bi-Directional RS-232 Signal Transmission
Power Rating:
6W
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI Extender Transmitter, 1xHDMI Extender Receiver, 1xWideband IR Emitter Cable, 1xWideband IR Receiver Cable, 1x24V/1A Power Adaptor, 1xUser Manual
Storage Temperature Range:
-20 to +60°C
Performance
HDMI Compliance Type:
1.4
HDCP Compliance Type:
1.4
Maximum Input Resolution:
1080pixels@60Hz
Maximum Output Resolution:
1080pixels@60Hz
Output Signal Type:
1080p@60Hz (YUV(4:4:4)), RGB(4:4:4), LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Inputs and Ports
Input Port Type:
1xHDMI, 1xIR, 1xHDBaseT
Output Port Type:
1xHDBaseT, 1xHDMI, 1xIR
I/O Interface Type:
RS232, RJ45
Number of Ports:
11
Input Signal Type:
1080p@60Hz (YUV(4:4:4)), RGB(4:4:4), LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
14cm
Depth:
6.5cm
Height:
1.8cm
Weight:
240g
Other
Standards Met:
US/EU Standards, CE/FCC/UL Certified, RoHs Complaint
Warranty:
3 year
