iTrans E100HC HDMI 4K60 HDMI/USB-C over HDBaseT 3.0 Extender (100m) with USB 2.0
Please sign in so that we can notify you about a reply

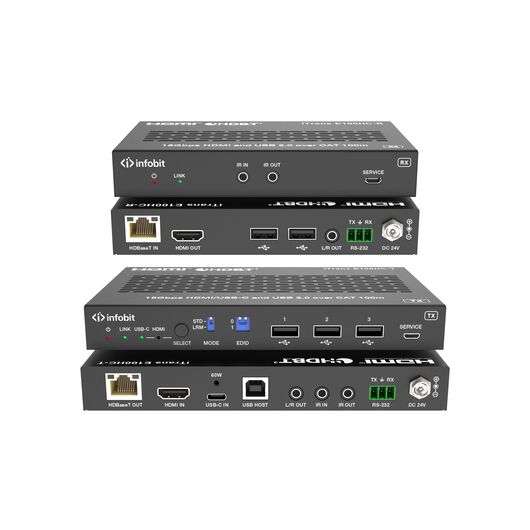

This 18Gbps HDBaseT 3.0 Extender can extend uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and USB 2.0 signals up to 328ft/100m via a single CAT6A/7 cable. Video resolution is up to 4K2K@60Hz YUV 4:4:4. The transmitter features with 1x HDMI input, 1x USB-C input (60W charging), 1x USB Host and 3x USB Device ports. It can switch between HDBT Standard Mode (as factory default) and HDBT Long Reach Mode. The receiver features with 1x HDMI output, 2x USB Device ports. Both transmitter and receiver support 3.5mm analog audio de-embedding, EDID management, bi-directional IR and RS-232 signal pass-through. This product supports bi-directional 24V POC function
Features- Compliant with HDCP 2.3, 18Gbps video bandwidth
- HDBaseT 3.0 VS3000 chipset based design
- Support video resolution up to 4K2K@60Hz (YUV 4:4:4) as specified in HDMI 2.0b
- 4K60/4K30/1080P signal transmission distance up to 328ft/100m via a single CAT6A/7 cable (HDBT Standard Mode)
- 1080P 8bit signal transmission distance up to 492ft/150m via a single CAT6A/7 cable (HDBT Long Reach Mode)
- TX features with 1x HDMI input, 1x USB-C input, 1x HDBT output, 1x USB 2.0 host and 3x USB 2.0 clients
- RX features with 1x HDMI output, 2x USB 2.0 clients
- USB-C and HDMI signal inputs support auto or manual switching mode
- Auto switching supports HDMI 5V or signal detect selection
- USB-C supports DP-ALT mode for A/V, USB 2.0 data and power charging up to 60 watts
- TX/RX USB-A client ports VBUS on or off depends on USB host is connected or not
- HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
- 4K to 1080p downscaling features on HDMI output, no frame rate conversion
- Both TX and RX support analog audio de-embedding
- RS-232 signal pass-through and guest-mode control
- Support bi-directional IR signal pass-through, USB 2.0 signal transmission
- Advanced EDID management
- Each USB-A port provides power up to 5V/500mA
- Support bi-directional 24V POC, with POC switch
- Compact design for easy and flexible installation
Brand:
Infobit
Product Type:
HDBaseT Extender
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Service Port Type:
1xMicro USB
Special Features:
Compact Design for Easy and Flexible Installation
Power Rating:
94.3W
Chassis Material:
Metal
Applications:
Home, Commercial
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1×18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Transmitter), 1×18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Receiver), 1×IR Blaster Cable (1.5 Meters), 1×IR Wideband Receiver Cable (1.5 Meters), 2×3Pin-3.81mm Phoenix Connector (Male), 4×Mounting Ear
Storage Temperature Range:
-20 to +60°C
Performance
HDMI Compliance Type:
2.0b
HDCP Compliance Type:
2.3
Maximum Input Resolution:
4096x2160pixels@60Hz
Maximum Output Resolution:
4096x2160pixels@60Hz
Output Signal Type:
RGB, YCbCr (4:4:4), YCbCr (4:2:2), YCbCr (4:2:0), LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD, LPCM 2CH
Inputs and Ports
Input Port Type:
1xHDMI, 1xUSB-C, 1xHDBaseT
Output Port Type:
1xHDBaseT, 1xL/R, 1xHDMI
I/O Interface Type:
RS232
Number of Ports:
21
Input Signal Type:
RGB, YCbCr (4:4:4), YCbCr (4:2:2), YCbCr (4:2:0), LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD, LPCM 2CH
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
17cm (Transmitter), 14.4cm (Receiver)
Depth:
10.2cm (Transmitter), 7.8cm (Receiver)
Height:
2.2cm (Transmitter), 2.3cm (Receiver)
Weight:
484g (Transmitter), 318g (Receiver)
Other
Standards Met:
US/EU Standards, CE/FCC/UL Certified
