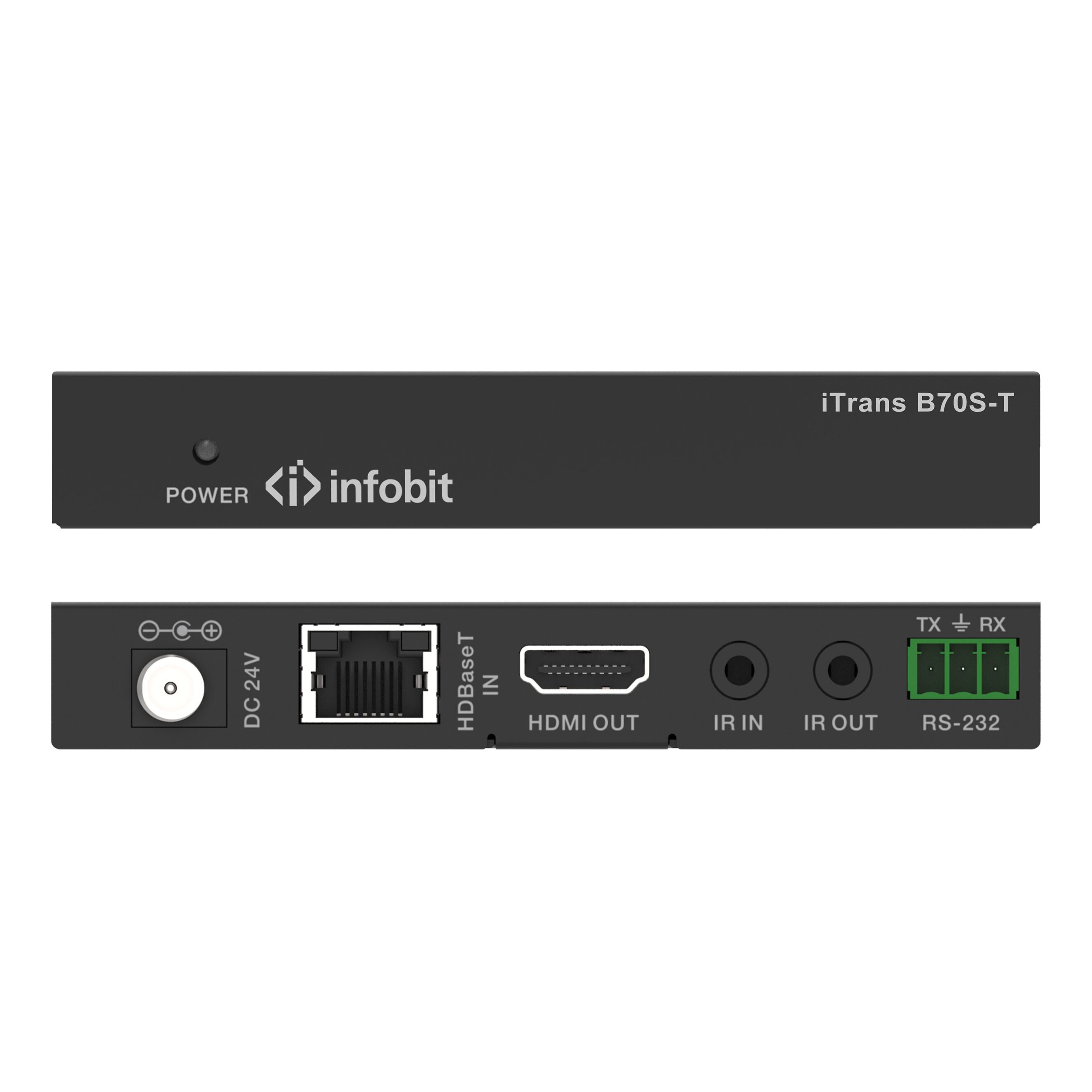

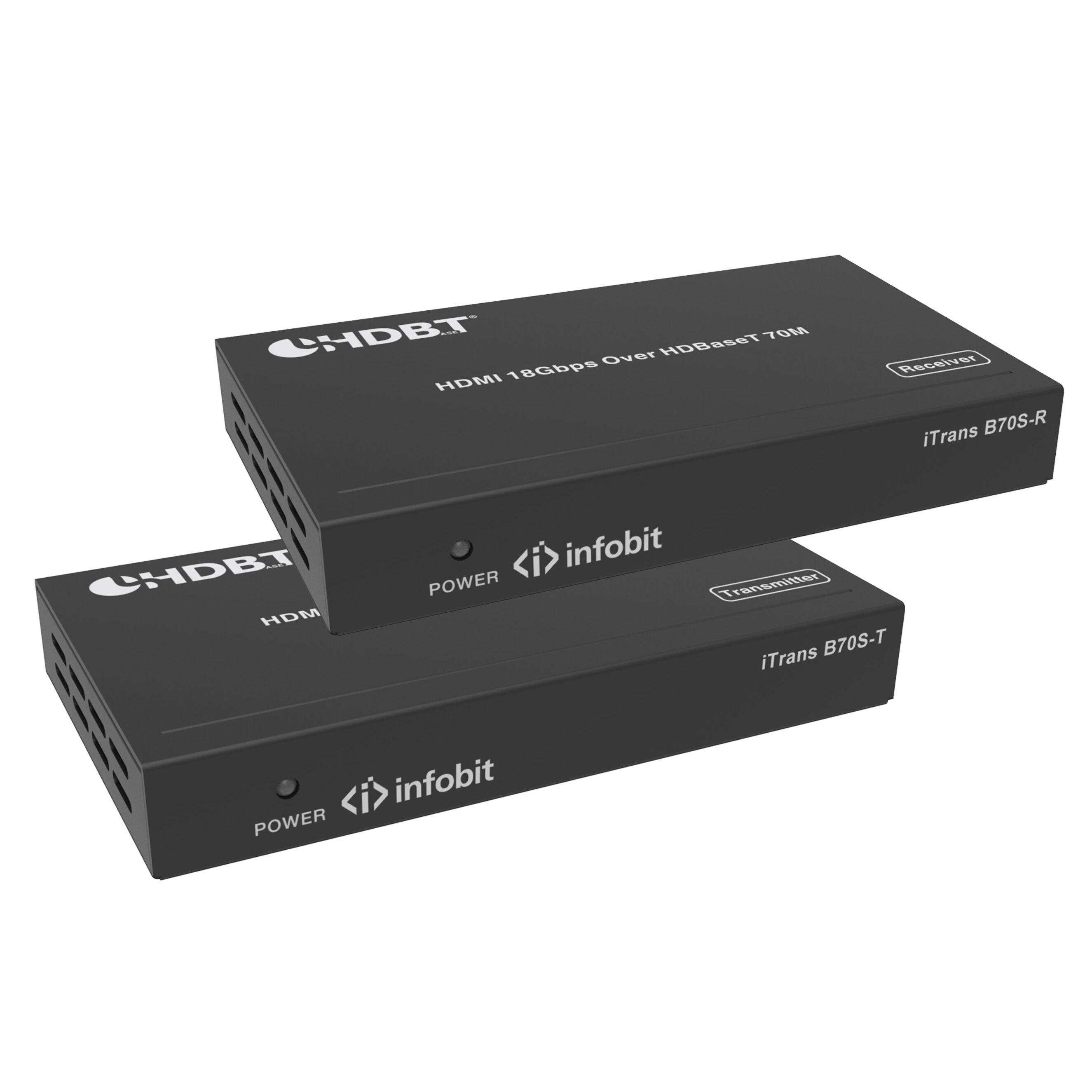

iTrans B70S HDBaseT Extender, 24W, 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, 1080P 3D@60Hz, 1xHDMI, 1xIR, 1xHDBaseT
Please sign in so that we can notify you about a reply
The 18Gbps HDMI Extender is a tool which can extend your HDMI signal over 230fts/70meters to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by LAN cable. It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 230fts outside, also you can control the Sink in the Source side which is 230fts outside by using the HDMI Extender
Features- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- 10bits HDR (High Dynamic Range) pass through
- Supports HDMI High Bit Rate(HBR) audio pass through
- Supports CEC bypass
- Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
- POC (Power Over Cable) function is supported, either TX or RX is powered by 24V@1A power supply, the another does not need power supply from the DC jack. POC Power consumption is less than 10W.
Brand:
Infobit
Product Type:
HDBaseT Extender
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Supports CEC bypass
Power Rating:
24W
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI 18Gbps Transmitter, 1xHDMI 18Gbps Receiver, 2xWideband IR Tx, 2xWideband IR Rx, 1x24V/1A Power Adaptor, 1xUser Manual
Storage Temperature Range:
-20 to +60°C
Performance
HDMI Compliance Type:
2.0b
HDCP Compliance Type:
2.2
Maximum Input Resolution:
4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, 1080P 3D@60Hz
Maximum Output Resolution:
4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz, 1080P@120Hz, 1080P 3D@60Hz
Output Signal Type:
LPCM 2/5.1/7.1CH, Dolby Digital+, Dolby True HD, DTS 5.1, DTS-X, DTS-HD Master Audio, Dolby Atmos Optical: LPCM 2CH, LPCM5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH, RGB, YCbCr (4:4:4), YCbCr (4:2:2)
Inputs and Ports
Input Port Type:
1xHDMI, 1xIR, 1xHDBaseT
Output Port Type:
1xHDBaseT, 1xIR, 1xHDMI
I/O Interface Type:
RS232
Number of Ports:
10
Input Signal Type:
LPCM 2/5.1/7.1CH, Dolby Digital+, Dolby True HD, DTS 5.1, DTS-X, DTS-HD Master Audio, Dolby Atmos Optical: LPCM 2CH, LPCM5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH, RGB, YCbCr (4:4:4), YCbCr (4:2:2)
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
11.5cm
Depth:
6.5cm
Height:
1.7cm
Weight:
405g
Other
Standards Met:
US/EU Standards, CE/FCC/UL Certified
Warranty:
3 year
