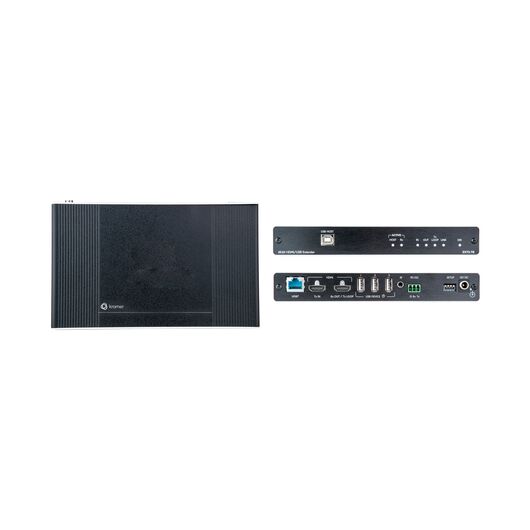

EXT3-TR 4K60 4:4:4 HDMI Extender with USB, RS–232, & IR over Long–Reach HDBaseT 3.0
Please sign in so that we can notify you about a reply
EXT3-TR is a high-performance, long-reach HDBaseT 3.0 extender for 4K60Hz (4:4:4) HDMI, USB, RS-232, and IR signals over twisted pair, flexibly set as transmitter-side or receiver-side device. EXT3-TR transmitter-side converts all input signals into the transmitted HDBaseT 3.0 signal. EXT3-TR receiver-side receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution.
Features- High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. EXT3-TR is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables
- HDMI Signal Extension - HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
- HDMI Mirroring - Transmitter-side extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain
- Flexible USB 2.0 Extension - An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices
- Multi-channel Audio Transmission - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound
- Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control
- Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line
- Cost-effective Maintenance - Status LED indicators for HDMI, Loop, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting
- Easy and Elegant Installation - MegaTOOLS fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter
Brand:
Kramer
Part number:
50-80572390
Product Type:
Video Extender
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Service Port Type:
1xUSB 2.0 Host, 3xUSB 2.0 Device, 1xIR, 1xRS-232
Special Features:
High Performance Standard Extender, HDMI Signal Extension, HDMI Mirroring, Flexible USB 2.0 Extension, Multi-channel Audio Transmission, Ethernet Extension, Bidirectional RS-232 Extension, Bidirectional Infrared Extension, Cost-Effective Maintenance, Easy
Chassis Material:
Aluminium
Applications:
Corporate - Hybrid and Online Meetings, Education - Hybrid and Online Learning and Training, Any AV, Ethernet and USB Room Extension Applications Such as Conference Rooms, Boardrooms, and Training Facilities
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter, Bracket, Rubber Feet
Storage Temperature Range:
-40 to +70°C
Performance
HDCP Compliance Type:
2.3
Output Signal Type:
4K@60Hz 4:4:4 24bpp
Inputs and Ports
Input Port Type:
1xHDMI on a HDMI Female Connector (Transmitter-Side), 1xHDBT on an RJ-45 Female Connector (Receiver-Side)
Output Port Type:
1xHDBT on an RJ-45 Female Connector (Transmitter-Side), 1xLOOP on a HDMI Female Connector (Transmitter-Side), 1xHDMI: on a HDMI Female Connector (Receiver-Side)
I/O Interface Type:
Bidirectional RS-232, Bidirectional IR
Number of Ports:
6
Dimensions
Width:
19cm
Depth:
11.6cm
Height:
2.7cm
Weight:
0.6kg
Shipping Weight:
1.2kg
Other
Standards Met:
CE, RoHs, WEEE
