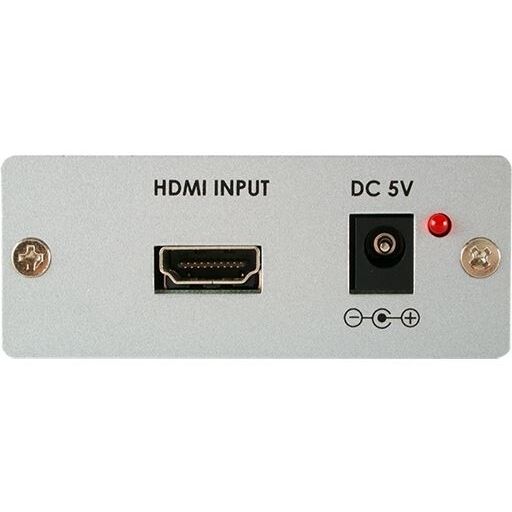

CP-1269HM HDMI Repeater
Please sign in so that we can notify you about a reply
HDMI repeater is introduced to the communication line between the signal source and the display and performs up to 40 dB of signal equalization, compensating for signal loss during transmission via HDMI/DVI cable, dampens digital noise. Allows to extend the signal transmission distance up to 50 m while maintaining perfect image quality. HDTV compatible.
Features
- Complies with HDCP 1.1 requirements, compatible with HDMI (when using an adapter, DVI signals can be used)
- Fully automatic signal equalization up to 40 dB at 2.25 Gbps bit rate
- Distance between signal source and repeater: up to 40 m for 1080p60/8-bit signals and up to 30 m for 1080p60/12-bit signals; no more than 10 m between the repeater and the display device
- Supports resolutions up to WUXGA/1080p
- Can be powered via HDMI, it is highly recommended to use an external power supply (included) for long lines
- Easy connection in Plug&Play mode
- Power supply included
Brand:
Cypress Technology
Product Type:
HDMI Repeater
Specifications
Special Features:
Fully Automatic Equalization Up to 40dB@825MHz (1.65Gbps), No System Control Required, Extend Cable Runs Up to 40-50m From the Source to the Equalizer Plus 10m From the Equalizer to the Projector, TV/Monitor, Maintains High HDMI Single Link Video Resoluti
Performance
Maximum Output Resolution:
Up to UXGA/1080pixels
No reviews found
