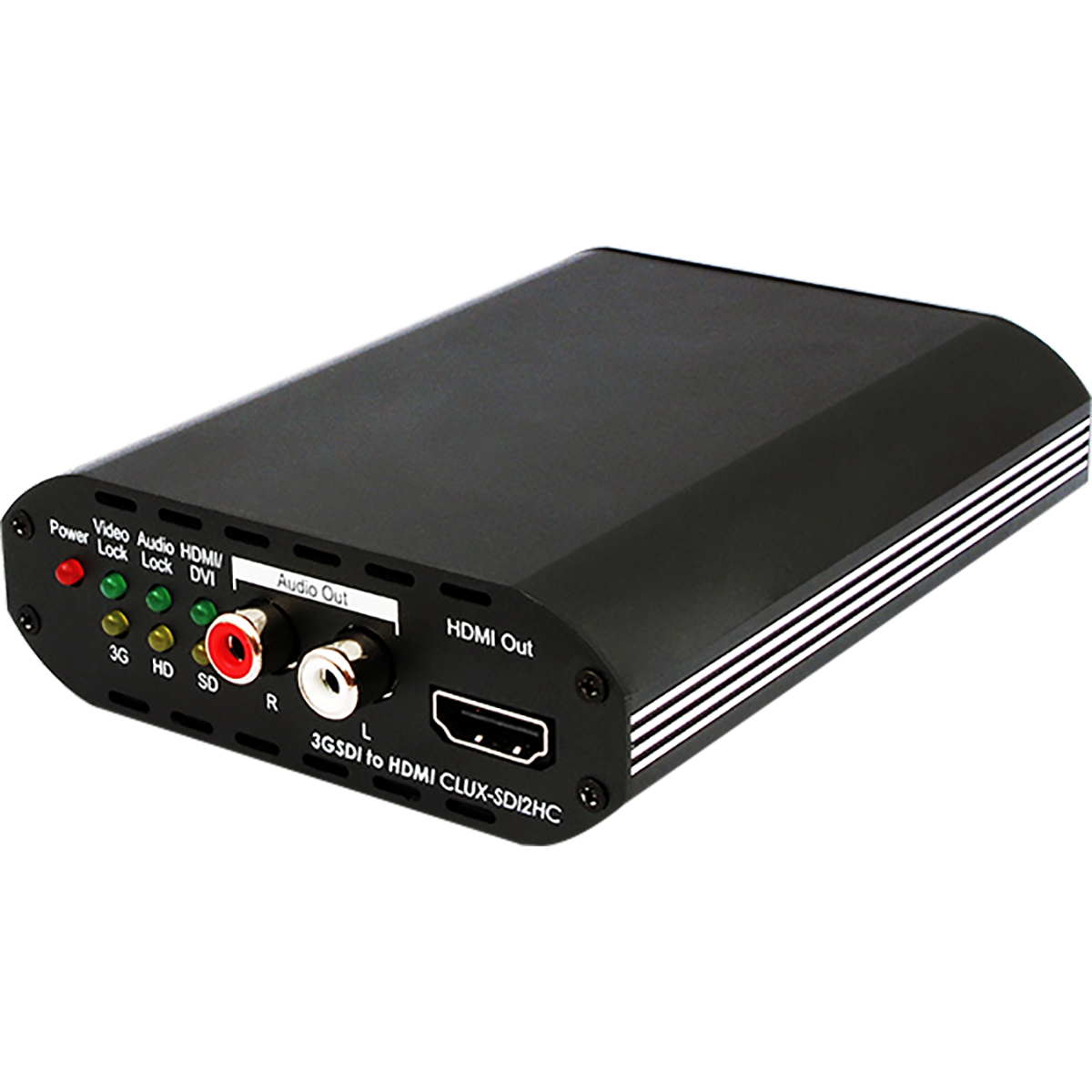

CLUX-SDI2HC 3G-SDI Extender with HDMI Converter
Please sign in so that we can notify you about a reply
The SDI to HDMI Converter allows Sd, HD and 3G-SDI Signals to Be Shown On HDMI Display. This Means That it is Now Easier for Professionals to Distribute and Extend theIR SDI Signal While Giving the ability to Display Work On HDMI Displays. Furthermore, Thanks to L/ R audio Outputs users Can Output audio In analog formats While the Loop-Through 3G-SDI Design Benefits users By Letting them Simultaneous Show Content On Both SDI and HDMI Displays.
Features
- Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection

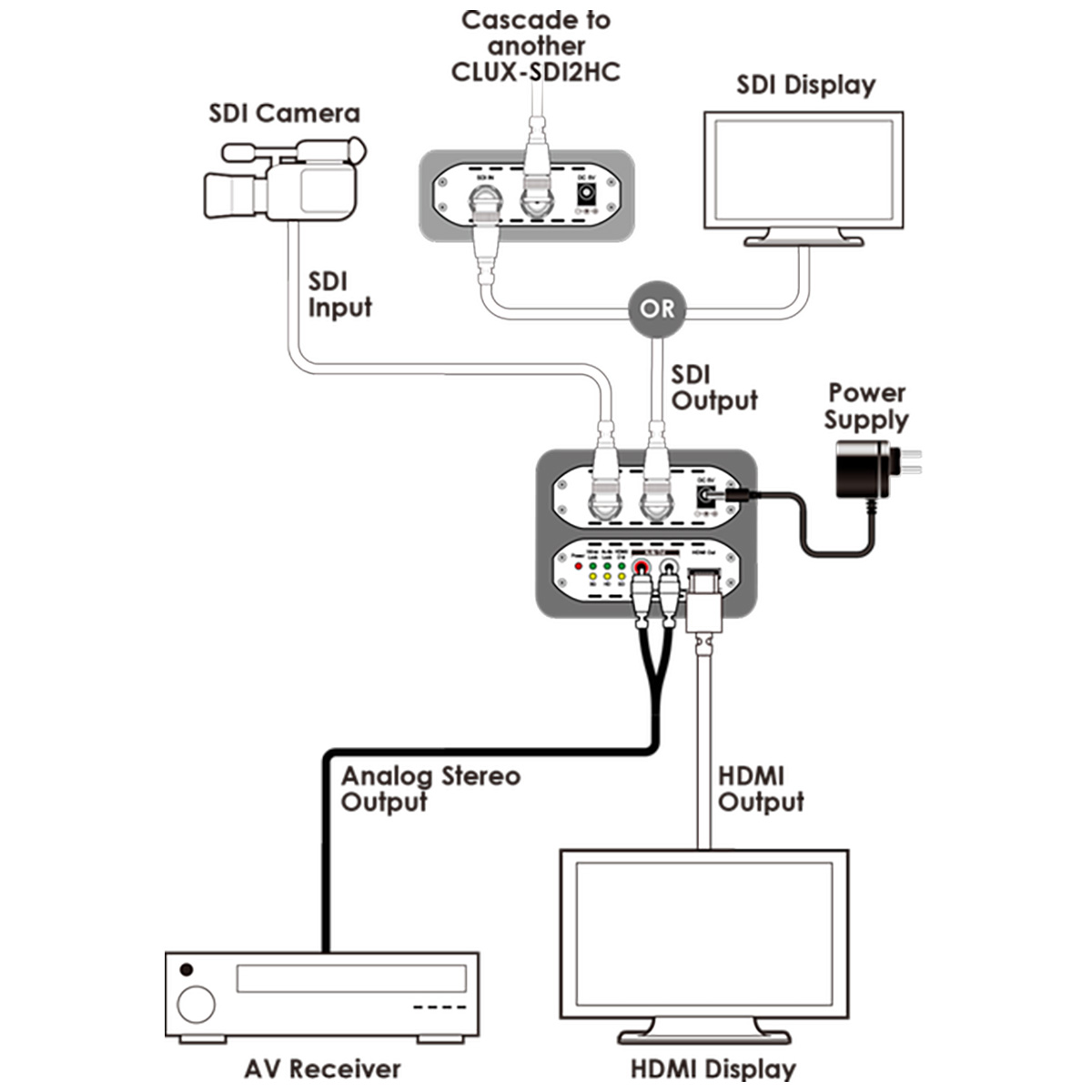

- Supports HDMI and SDI (bypass) output simultaneously
- SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
- Converts SDI signal to HDMI:
1. SD-SDI (SMPTE 259M-C) to 480i/576i
2. HD-SDI (SMPTE 292M) to 720p@50/59.94/60, 1080i@50/59.94/60
3. 3G-SDI (SMPTE 424M/425M-AB) to 1080p@23.98/24/25/29.97/30/ 50/59.94/60, 1080PsF@23.98/24/25/29.97/30
- Supports SDI input modes:
1. SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
2. HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s)
3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
- Equalized and re-clocked loop output
- Alternative audio output to coaxial and analog 2 CH
- Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Note: Tested with Belden 1694A cable. Operating distances may vary with other specifications of cable.
Brand:
Cypress Technology
Product Type:
3G-SDI Extender with HDMI Converter
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Supports SD-SDI, HD-SDI and 3G-SDI Input Signals with Auto-Detection, Supports HDMI and Sdi (bypass) Output Simultaneously, Sdi Interface Operates At Bitrates Of 2.97Gbps, 2.97/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps and 270Mbps, Converts Sdi Signal to HDMI
Power Rating:
4W
Chassis Material:
Aluminium
Applications:
Sdi Signal Loop-Out and Extension, Converts Sdi Signal (SD/HD/3G) to HDMI
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Inputs and Ports
Input Port Type:

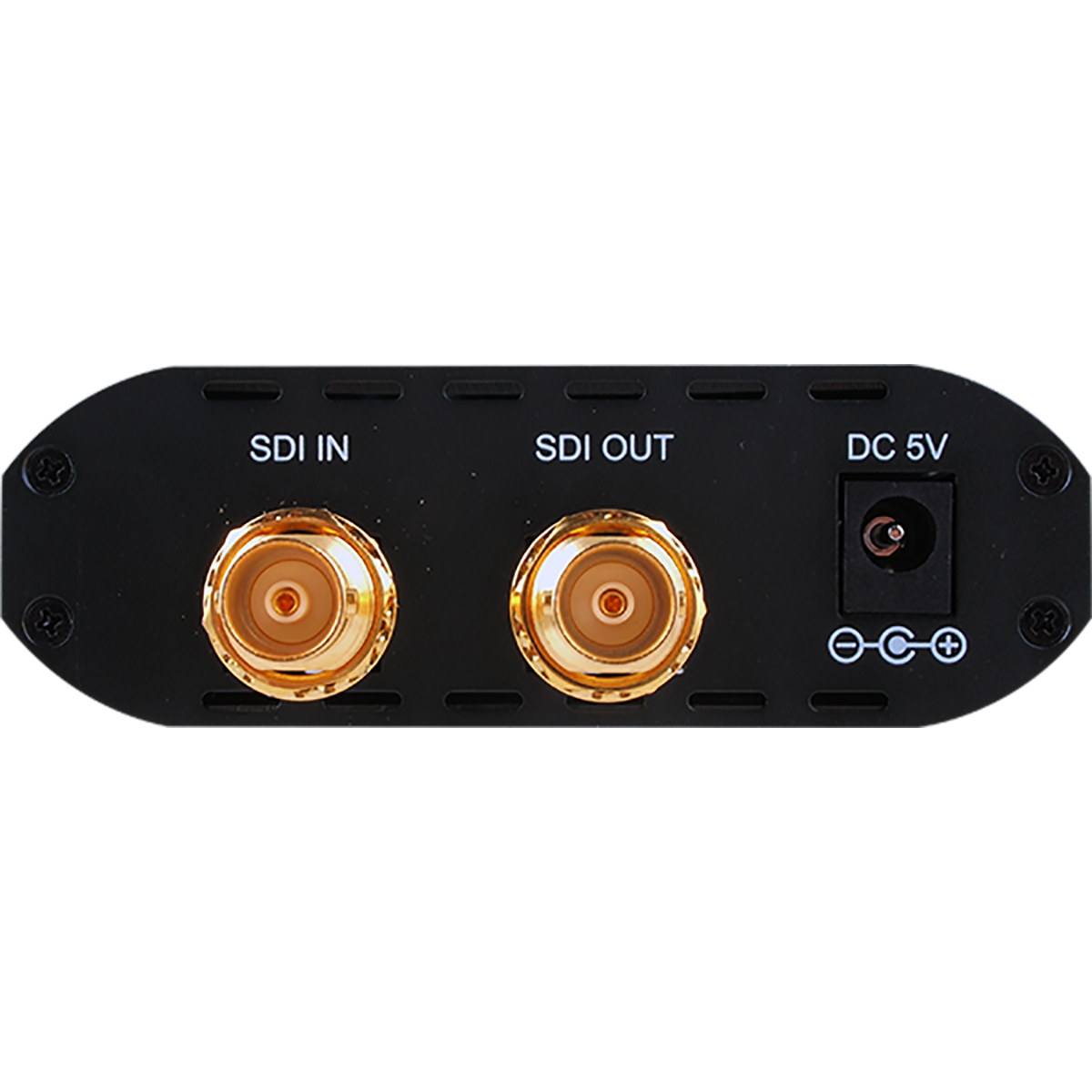

1xBNC (SD/HD/3G-SDI)
Output Port Type:

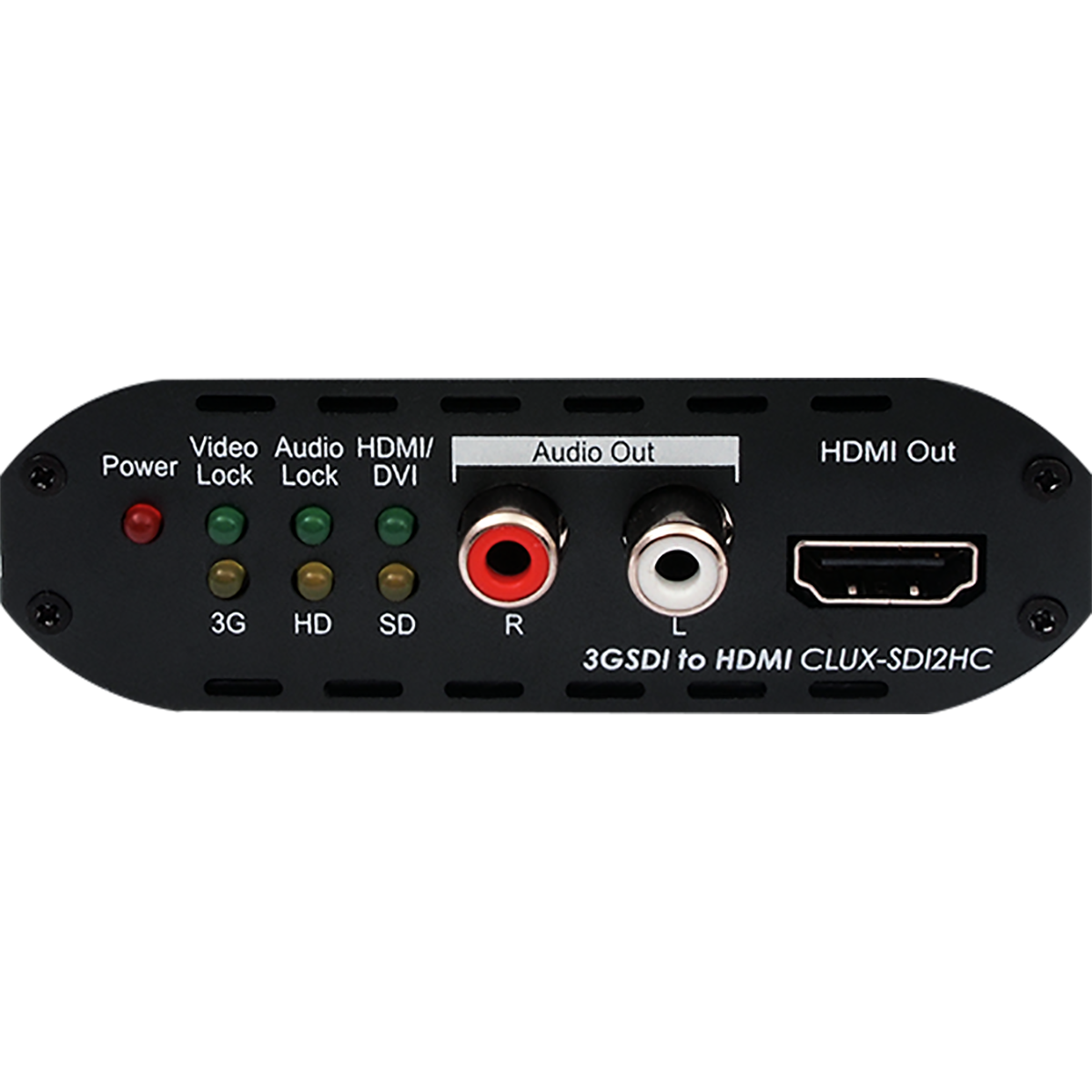

1xBNC (SD/HD/3G-SDI), 1xHDMI, 2xRCA
Input Signal Type:
3G-SDI
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
13.7cm
Depth:
9cm
Height:
2.5cm
Weight:
225g
Other
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Certified
