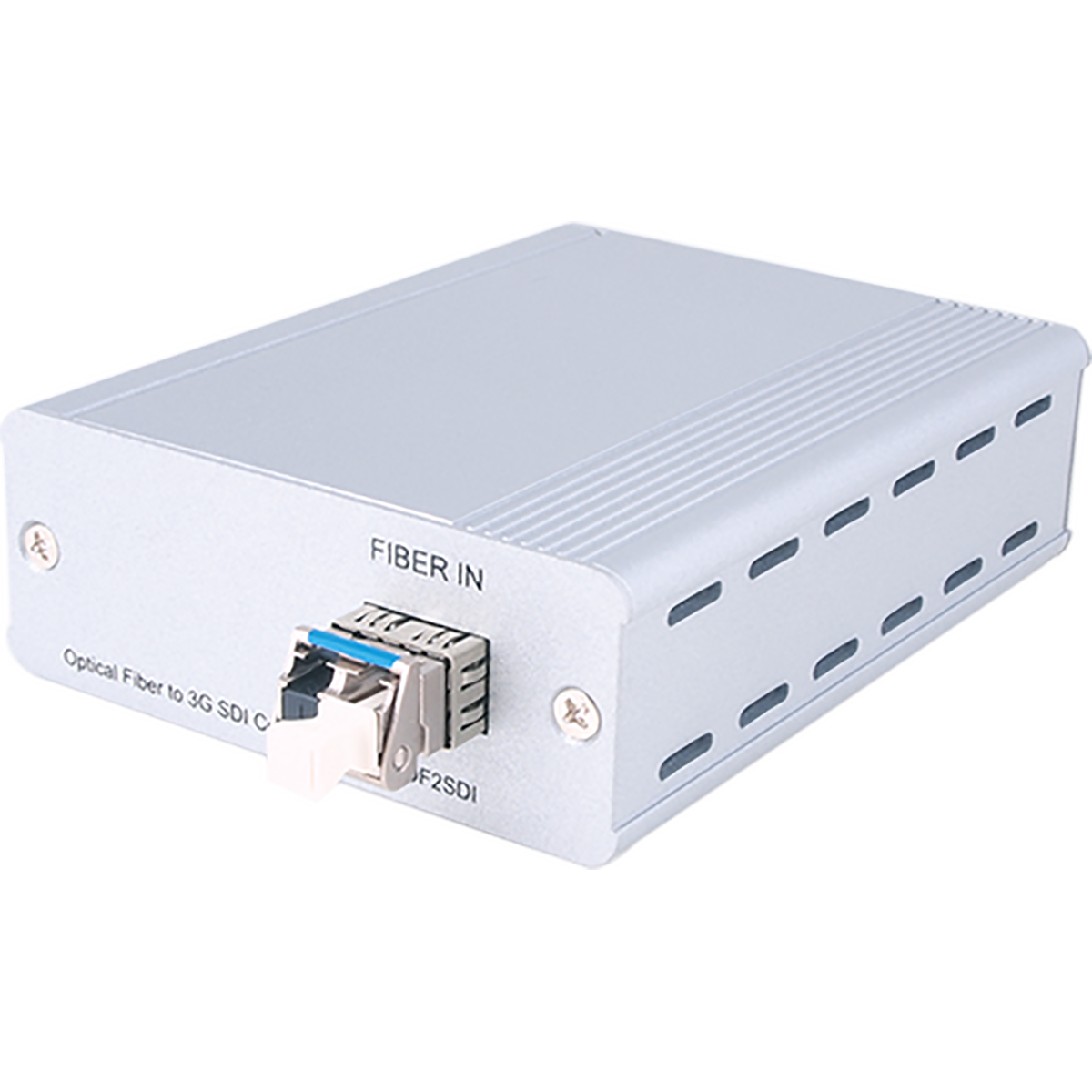

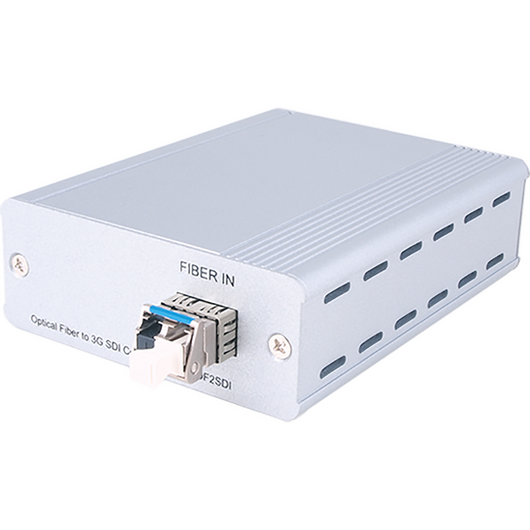

CLUX-OF2SDI SDI over Optical Fiber Extender
Please sign in so that we can notify you about a reply

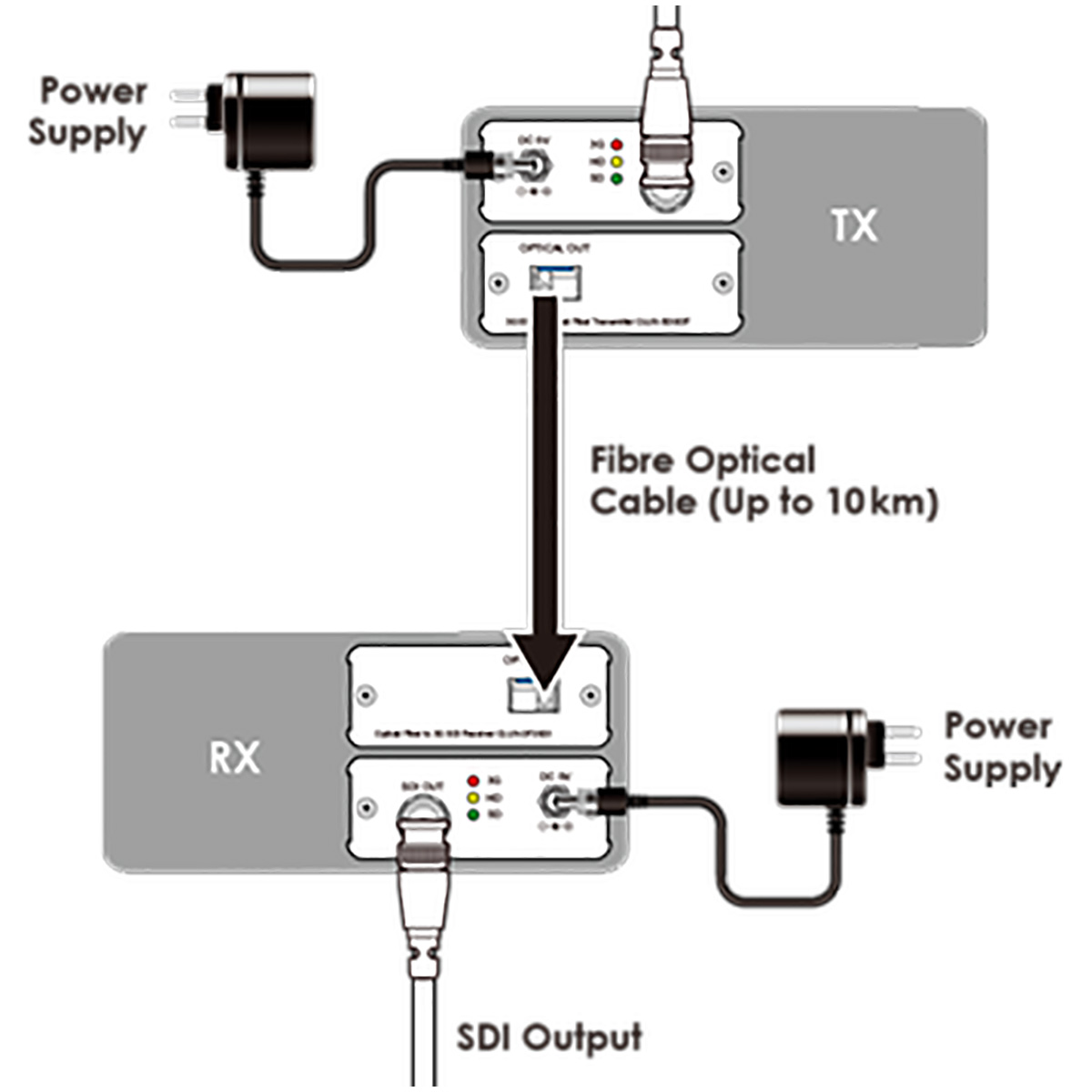

The SDI to Optical Fiber Extender Set is Designed to Extend Your SDI Signals over Optical Fiber for Long Distance Transmission Up to 10km. Signals From 50 Mb/S to 3 Gb/S Bandwidth Can Be Sent Without Loss or Compression With Thinner, Lighter Cables for Easy Installations.
Features
- SMPTE 287-2006 Compliant
- Robust Error-Free Transmission Of Signals From 50mb/S to 3Gb/S Up to 10 Km Over Single-Mode Fiber (distance is Dependent On the Fiber Module Used)
- Supports Video Pathological Patterns for Sd-SDI, HD-SDI and 3G-SDI
- Supports SDI Input Modes:1.Sd-SDI: Smpte 259m-C, at Bitrates Of 270 Mbit/S2.HD-SDI: Smpte 292m, at Bitrates Of 1.485 Gbit/S and 1.485/1.001 Gbit/S3.3G-SDI: Smpte 424m/425m-ab, at Bitrates Of 2.970 Gbit/S and 2.970/1.001 Gbit/S
- Supports Integrated SDI audio Up to Maximum 16 Channels Of 48 Khz audio
- automatic Video Mode Detection (3G/HD/SD)
- Faster Data Transmission
- Lower Power Consumption
Brand:
Cypress Technology
Product Type:
SDI Over Optical Fibre Extender
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
SMPTE 287-2006 Compliant, Robust Error-Free Transmission Of Signals From 50mbps to 3gbps Up to 10km Over Single-Mode Fibre (distance Is Dependent on the Fibre Module Used), Supports Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI, Supports Sdi I
Power Rating:
3W
Chassis Material:
Aluminium
Applications:
Broadcast Signal Extension, Surveillance-Monitor a Remote Camera, Television Studio-Transmit a Signal from One Building to Another
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Inputs and Ports
Input Port Type:
1xBNC (SD/HD/3G-SDI)
Output Port Type:
1xSingle-Mode Fibre Optical (LC Connector)
Dimensions
Width:
7.85cm
Depth:
14.3cm
Height:
3cm
Weight:
200g
Other
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Certified
