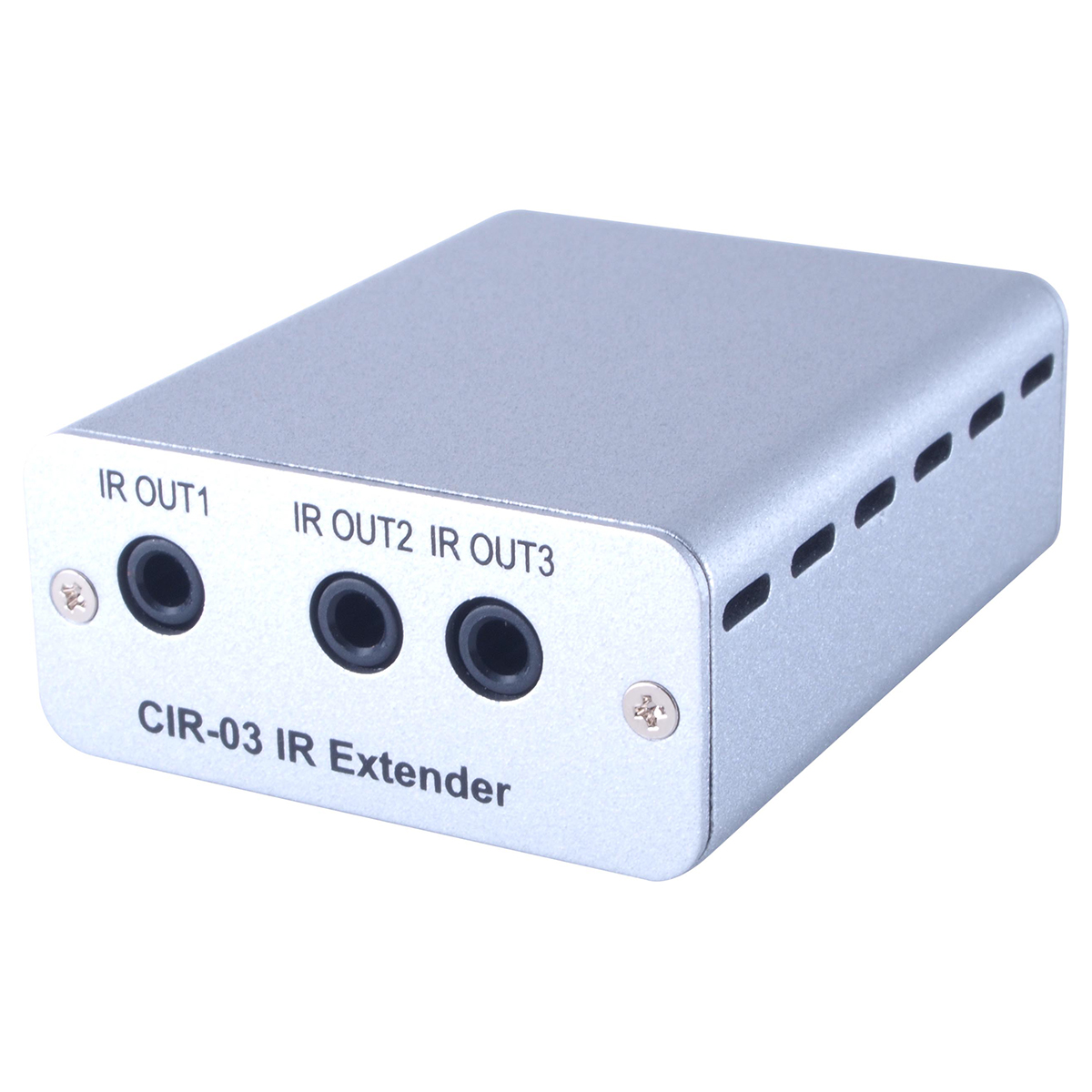

CIR-03 Infrared over Single CAT5e/6/7 Extender
Please sign in so that we can notify you about a reply
The IR Extender And The IR Repeater Box Are Perfect For Controlling Source Devices Over Long Distances Using Cat5 Cable. By Using The Built-In IR Receiver Of The IR Repeater, Users Are Able To Control Up To Five Sources (with The Original Remote Controls) At The Same Time At A Distance Of Up To 250 M. There Are No Space Limitations With These Devices, Which Means Even If The Sources Are In A Different Room Or Even Another Floor Than The Display, The Performance Stays The Same. The IR Extender And The IR Repeater Box Give Users An Easy And Convenient Way To Control TheIR DesIRed Source. If However, Users Only Wish To Control Sources In The Same Room Then The IR Repeater Box Will Be Enough To Control Up To 2 Sources. The IR Extender Box Is Designed For Longer Distances And Extra Source Device Control Than The IR Repeater Box.
Features
- Supports Up to 5 Outputs (3 for Infrared Extender, 2 for Infrared Repeater
- Control Source Devices anywhere Within 250 M, Can Be Run Through Walls and Ceilings
- Transmits Infrared Signals Only
- it allows the Use Of Existing Remote Controls
- Only One Ir Receiver is Needed
- Ir Receiver’s Frequency Range is 30~50 Khz
Brand:
Cypress Technology
Product Type:
Infrared Over Cat5 Extender
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Silver
Special Features:
Supports Up to 5 Outputs (3 for Infrared Extender, 2 for Infrared Repeater, Control Source Devices Anywhere Within 250 M, Can Be Run Through Walls and Ceilings)
Power Rating:
0.5W
Chassis Material:
Aluminium
Applications:
TV Sales Displays in Consumer Electronic Stores, Home Theatre Installations, Lecture Room Display, Home Entertainment
Humidity:
20 to 60%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Inputs and Ports
Input Port Type:

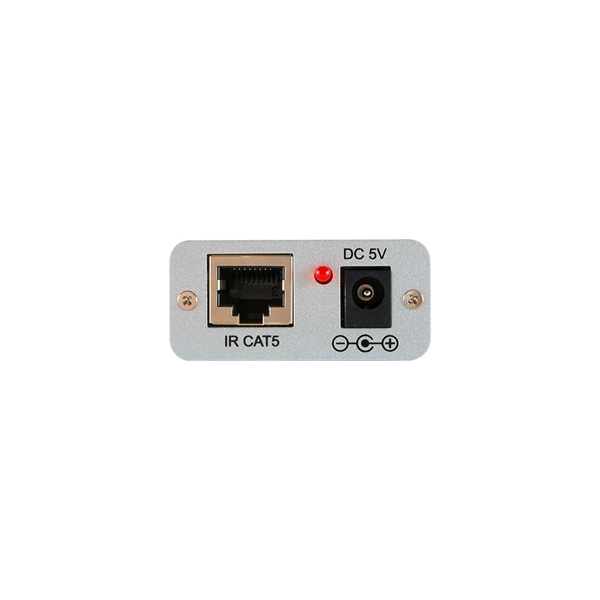

1xIR CAT5 (CAT5E)
Output Port Type:

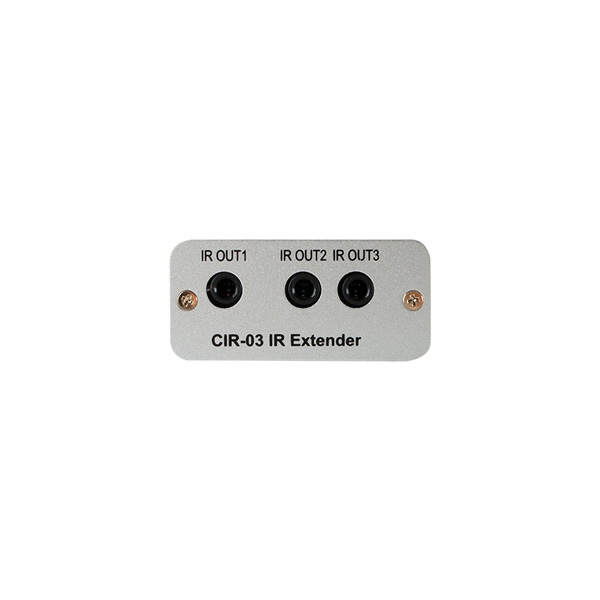

3xIR Blaster (3.5mm)
Power
ESD Protection Rating:
±10kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
6.2cm
Depth:
5cm
Height:
2.3cm
Weight:
78g
Other
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Certified
