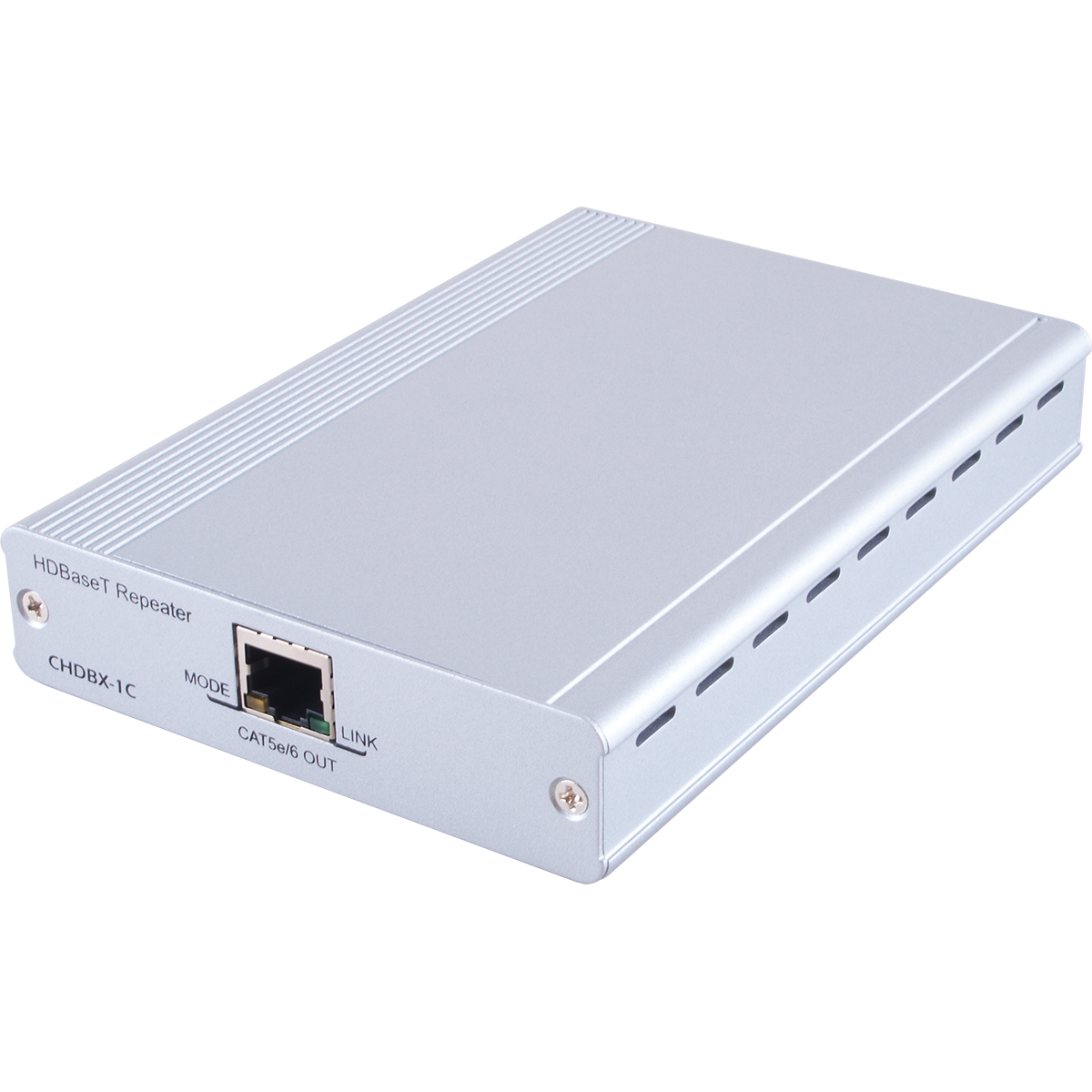

CHDBX-1C CAT5e/6/7 Repeater with 24V PoC and LAN Serving
Please sign in so that we can notify you about a reply
The HDBaset™ Repeater allows HDBaset Systems to Be Extended and Cascaded. The Model Supports The Highest Quality of Uncompressed High-Definition HD Video Up to 4K×2K (Ultra HD), Up to 8 Channels of Uncompressed Multi-Channel audio, RS-232 and IR Control Systems, Poe and Ethernet, Complete HDBaset 5play™ Convergence With Just a Simple Connection over a Single Cat5e/6/7 Cable.
Features
- HDMI, DVI and HDCP Compliant
- Supports 3d Over HDMI and 4K×2K (Ultra HD) Resolution
- Supports Cec Bypass
- Doubles Up The Distance Of HDbaset Transmission Between Transmitter and Receiver, With a Single Repeater
- Uncompressed Video Support Up to 1080p@60hz/36-Bit and 4K×2K (Ultra HD)
- audio Support Up to Lpcm 7.1ch, Dolby TrueHD and Dts-HD Master audio
- 5play™ Convergence: Full Uncompressed HD Video, audio, Ethernet, Power and Controls (IR and RS-232) Over a Single Cat5e/6/7 Cabl
- Powered By Transmitter Without Power Supply Connection (PoE)
- Installation Friendly
Brand:
Cypress Technology
Specifications
Product Type:
PoC and LAN Serving
Maximum Operating Temperature:
+40°C
Colour:
White
Special Features:
HDMI, DVI and HDCP Compliant, Supports 3d Over HDMI and 4Kx2k (Ultra HD) Resolution, Supports Cec Bypass, Doubles Up the Distance Of HDBaset Transmission Between Transmitter and Receiver, with a Single Repeater, Uncompressed Video Support Up to 1080pixels
Power Rating:
9W (PoE) or 16.2W (Not PoE)
Chassis Material:
Metal
Applications:
Hdbaset Signal Extension Up to 200m (300m with Additional Repeater Unit), Cascading Hdbaset Matrixes, Cascading Hdbaset Equipment
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C

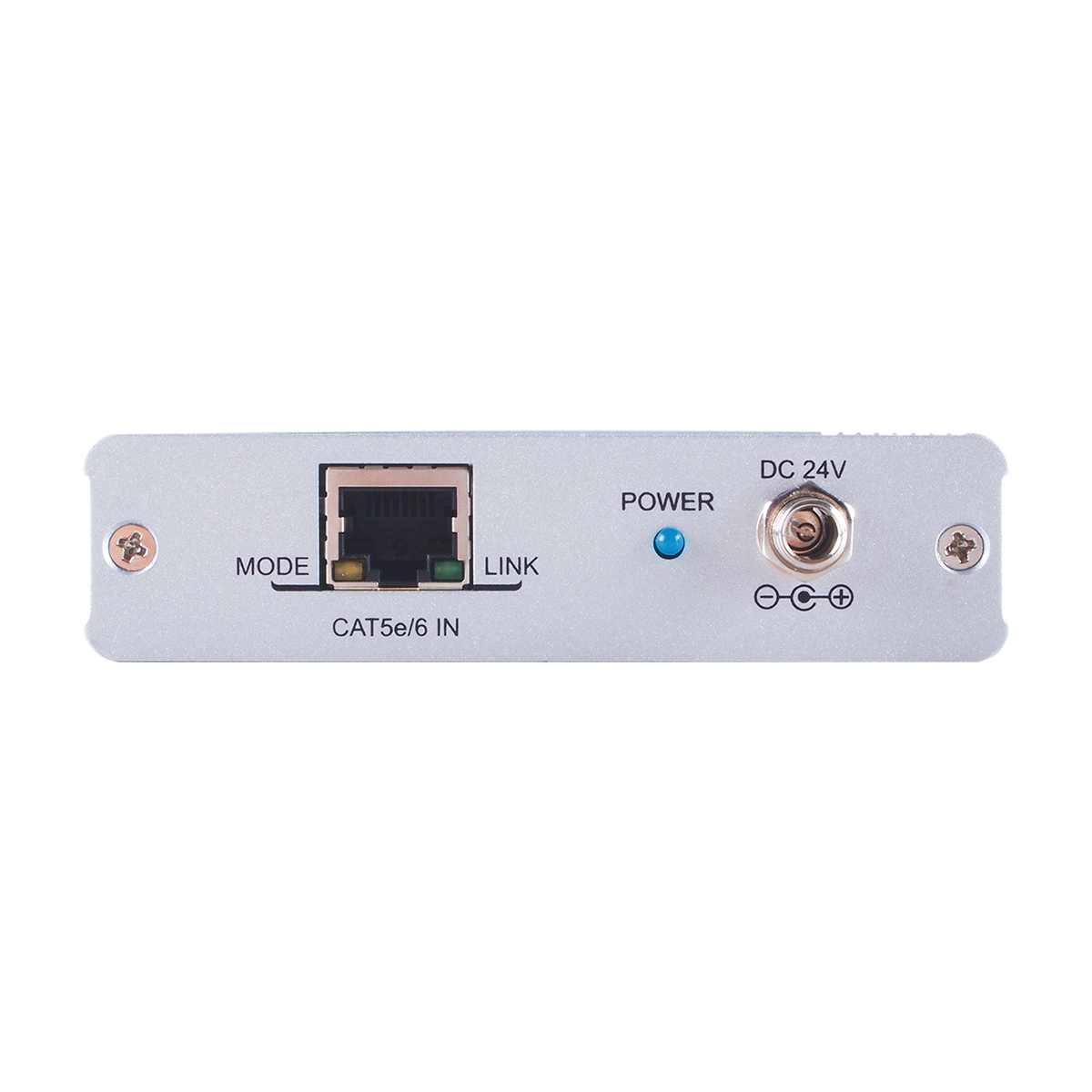

Inputs and Ports
Input Port Type:
1xCAT5e/6/7
Output Port Type:
1xCAT5e/6/7
Dimensions
Width:
10.2cm
Depth:
14.5cm
Height:
2.5cm
Weight:
324g
Other
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Certified
