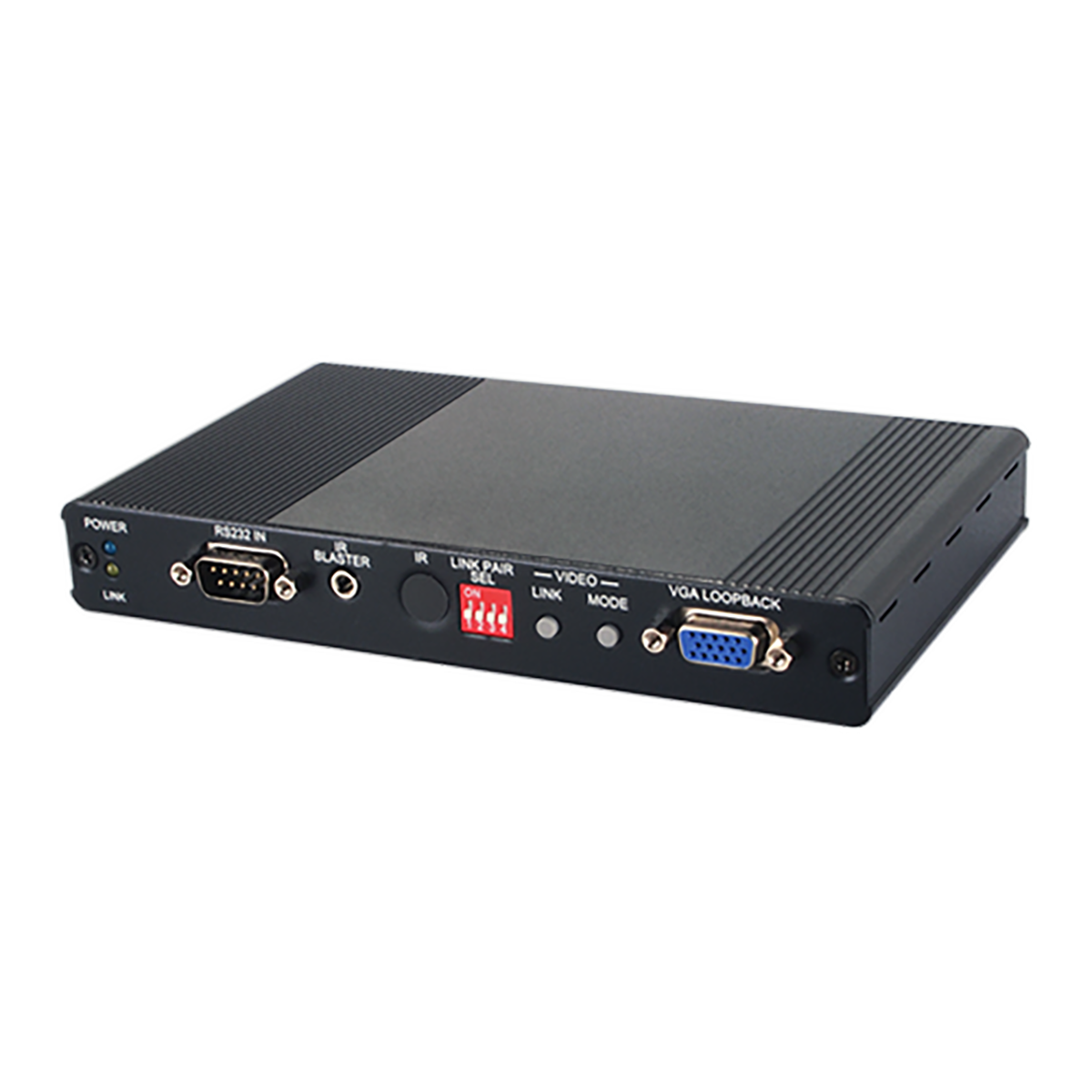

CH-U330TX HDMI or VGA over IP Transmitter with USB

Write a review
CH-U330TX
Cypress Technology
Out of stock
Log in to see price Add to wish list

This 4K UHD Multi-Function Extender With Kvm over Tcp/ip allows You to Transmit HDMI or Vga Signals over Cat.5e/6/7 Network Cable. This Extender Supports the Transmission of Ultra High-Definition Signals (up to 4K @ 30Hz 4:4:4 or 4K @ 60Hz 4:2:0) along With audio and USB Up to 100m On a Single Cable. the Transmission Distance Can Be Further Extended (up to 100m Per Segment) By using Gigabit Network Switches, allowing the user to Cascade the System Without Signal Loss or Introducing Delay. it is also Possible to He the Transmitter Operate In Multicast Mode, allowing You to Send a Single Signal to a Large Number of Receivers Within the Same Local Network. This System is Perfect for Both Residential and Commercial Installation EnvIRonments. This System also Features Bi-DIRectional IR and RS-232 Pass-Through, analog Line Level In/Out, and a Microphone Input (on the Receiver), Providing the user With a Variety of audio Options. the USB Functionality allows the System to act Like a Remote USB Hub Which, When Combined With the Vga Input/Output Feature, Provides a Flexible Remote Kvm Platform. Configuration Information is Provided Via On Screen Display (OSD) and Control is By Webgui and Front Panel Controls.

Features

  • HDMI 2.0 and DVI 1.0 Compatible, HDCP 2.2/1.4 Compliant

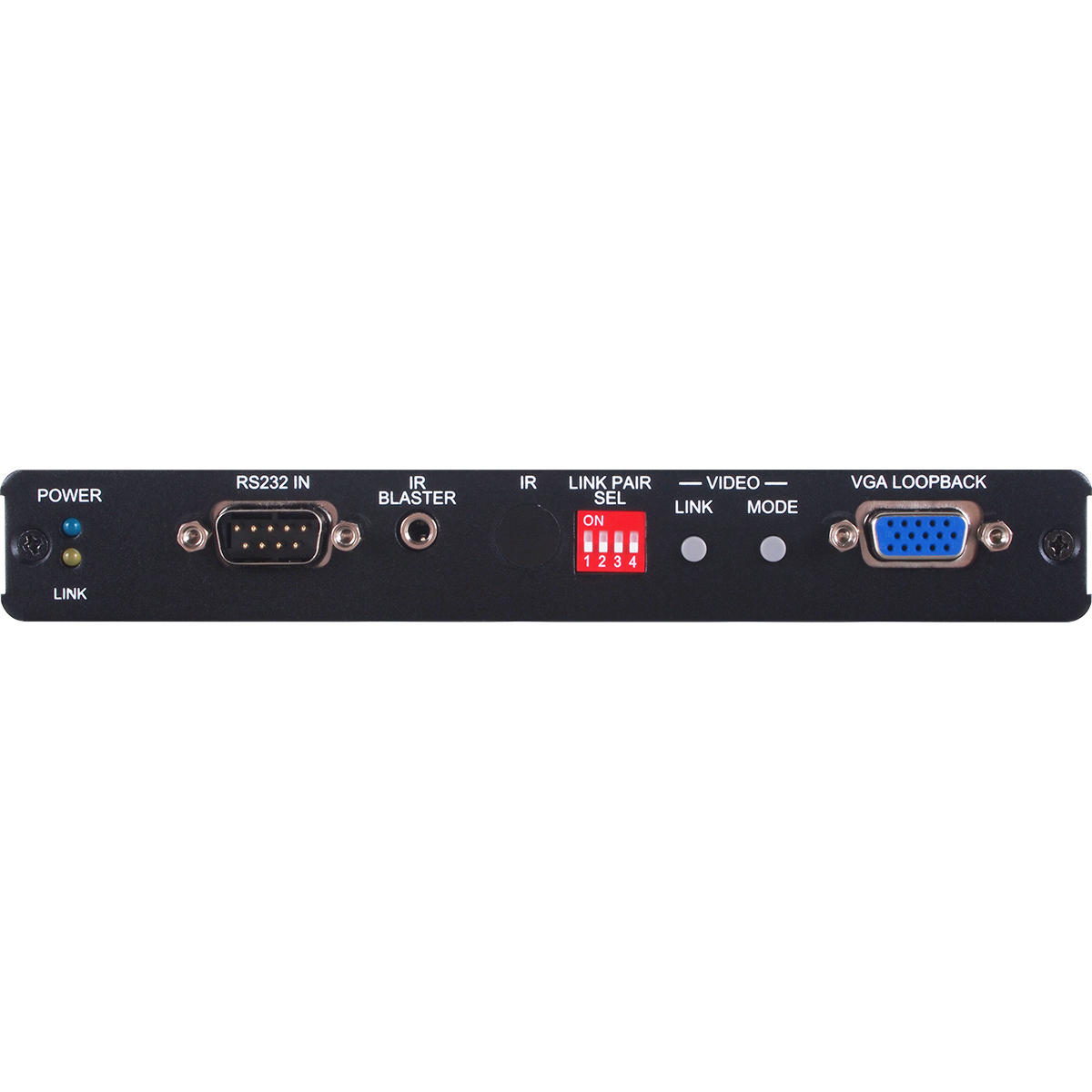

  • 1×HDMI Input and Output, 1×VGA Input and Output & 1×VGA Bypass Output
  • Video, audio and Control Transmission Over Tcp/IP HDMI Input Resolutions Up to 4K @ 60hz (YUV 4:2:0) Or 4K@30hz (YUV 4:4:4)
  • HDMI Output Resolutions Up to 4K @ 30hz (YUV 4:4:4)
  • 4K @ 50/60hz (YUV 4:2:0) Sources are automatically Converted to 4K @ 25/30hz (YUV 4:4:4) for Output
  • Supports Pass-Through Of audio formats Including Lpcm 2.0/5.1/7.1, Bitstream, and HD Bitstream
  • audio Line In On Transmitter Sends audio to the Line Out On Connected Receivers
  • Microphone Input On Receiver for Transmission to the Transmitter
  • Supports USB Keyboard and Mouse Extension
  • Supports Ir and RS-232 Bypass
  • Device Has an Info Osd and Can Be Controlled Via WebGui and Front Panel Controls
Brand:
Cypress Technology
Specifications
Product Type:
4K UHD Multi-Function Extender with Video Over IP and KVM
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDMI 2.0 and DVI 1.0 Compatible, HDCP 2.2/1.4 Compliant, 1xHDMI Input and Output, 1xVGA Input and Output & 1xVGA Bypass Output, Video, Audio and Control Transmission Over Tcp/Ip, HDMI Input Resolutions Up to 4K@60Hz (YUV 4:2:0) Or 4K@30Hz (YUV 4:4:4), HDM
Power Rating:
6.82W
Chassis Material:
Metal
Applications:
HDMI, USB, Audio, RS-232 & IR Extender, Broadcasting System Over Single Cat.5e/6, Multimedia Display on a Large Number Of Displays Via Multicast, Hotel Or Convention Centre Display Multi-Monitor Broadcast, Long Distance Hd Video Transmission, Remote Kvm C
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
1.4, 2.2
Inputs and Ports
Input Port Type:

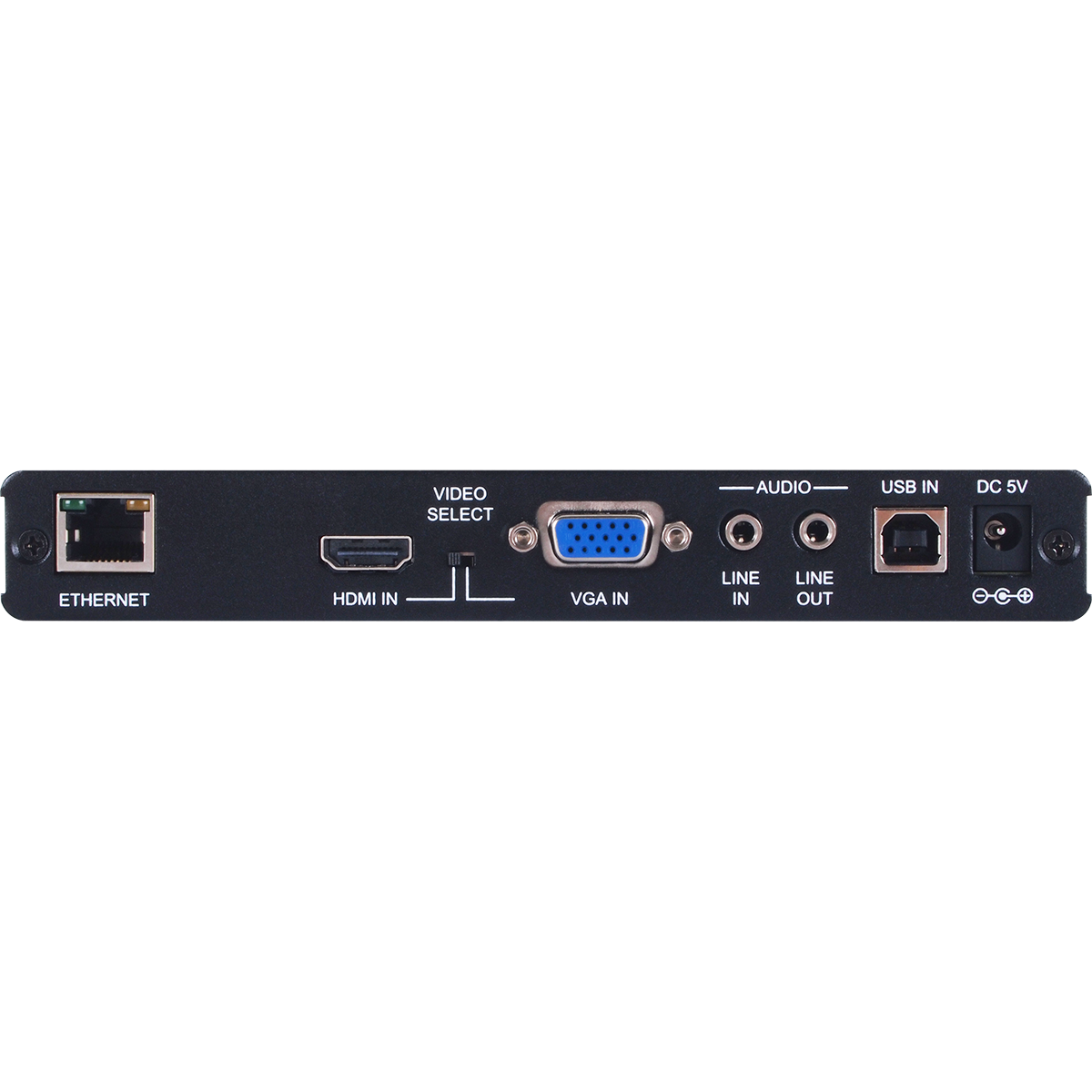

1xHDMI, 1xVGA (15-Pin D-Sub), 1xLine Audio (3.5mm), 1xUSB 2.0 (Type B), 1xRS-232 (9-Pin D-Sub)
Output Port Type:
1xCAT5e/6, 1xVGA (15-Pin D-sub), 1xLine Audio (3.5mm), 1xIR Blaster (3.5mm)
Power
ESD Protection Rating:
±12kV (Air-Gap Discharge), ±8kV (Contact Discharge)
Dimensions
Width:
18cm
Depth:
11.3cm
Height:
3cm
Weight:
395g
Other
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Certified
