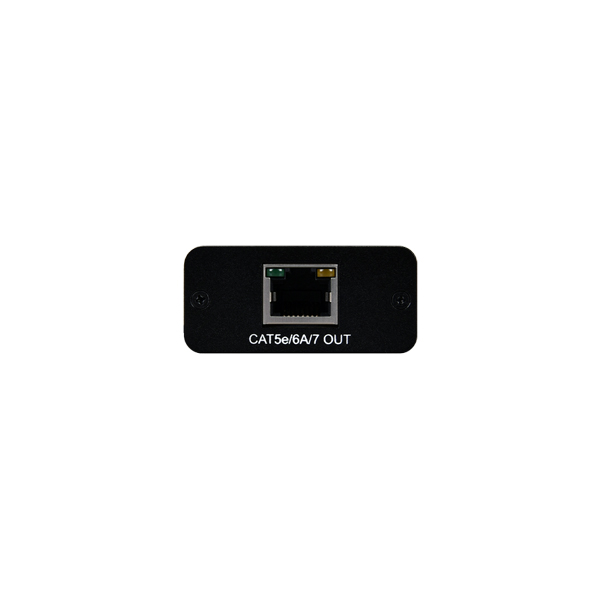

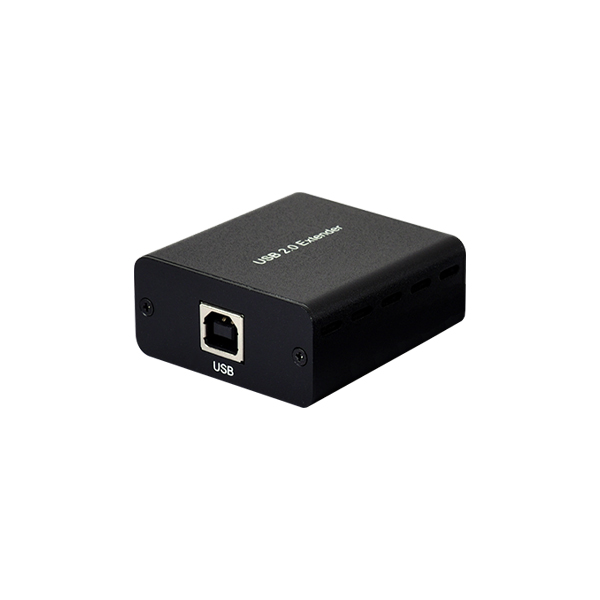

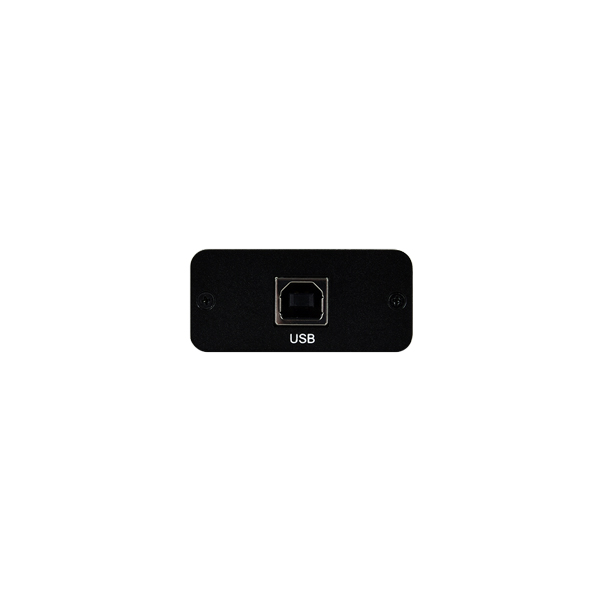

CH-710TX USB 2.0 Extender
Please sign in so that we can notify you about a reply
This Compact and Low Cost USB 2.0 Extender Set is Designed to Expand the usability and Flexibility of the Most Prevalent Interface Standard used Nowadays, USB. This Extender Provides a Simple and Efficient Way to Extend the USB 2.0 Connection From a Typical Host, Such as a Pc or Laptop, to Up to 4 Standard USB Devices Located as Far as 50 Meters away. it Extends the High Quality Data Stream over Single Cat.5e (or Better) Cable, With Full Support for the EntIRe Range of USB 2.0 Compliant Products and Data formats. the Receiver Can Supply Up to 2a of total Power (500ma Per Port) to Devices Connected to the 4 USB Type-a Ports.
Features
- Convenient Point-to-Point USB 2.0 Extension With 4 Port Hub 1 Host Port On The Transmitter and 4 Device Ports On The Receiver
- Supports Standard USB 2.0 Devices, Such as a Mouse and Keyboard, as Well as Those Requiring isochronous Transfers Such as Webcams and Portable Storage
- Supplies Up to 2a Of Power to The 4 USB Ports (500ma Per Port)
- Low Rf Emission and Robust Noise Immunity Simple Plug-and-Play Operation, No Drivers Required
Brand:
Cypress Technology
Specifications
Product Type:
USB 2.0 Extender
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Convenient Point-To-Point USB 2.0 Extension with 4 Port Hub 1xHost Port on the Transmitter and 4 Device Ports on the Receiver, Supports Standard USB 2.0 Devices, Such as a Mouse and Keyboard, as Well as Those Requiring Isochronous Transfers Such as Webcam
Power Rating:
10W
Chassis Material:
Metal
Applications:
Remote USB Extension, Security and Monitoring, Industrial Control, Conference Room and Boardroom KVM Extension
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Inputs and Ports
Output Port Type:
1xCat.5e/6/7 (RJ45)
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
5cm
Depth:
5.2cm
Height:
2.5cm
Weight:
60g
Other
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Certified
