Catalog :: AV Processing & Distribution :: Transmitters, Receivers & Transceivers :: Receivers :: CH-527RXVBD UHD+ HDMI over HDBaseT Receiver with HDR

Features

HDMI 1.4 With 3D, 4K×2K Support, HDCP & DVI Compliant
Supports CEC Bypass
Simultaneous Transmission Of Uncompressed Data Over a Single 100 M/328 Ft Cat5e/6 Cable
Uncompressed Video 1080p, 60 Hz, 36-Bit
audio Support Up to 7.1ch & Dolby TrueHD, Dts-HD
5play™ Convergence: HDMI, Lan, Bidirectionlal Poe & Control (IR & RS-232)
Installation Friendly

Brand:

Cypress Technology

Product Type:

HDMI Over HDBaseT Extender

Specifications

Maximum Operating Temperature:

+40°C

Special Features:

HDMI 1.4 with 3D, 4Kx2K Support, HDCP & DVI Compliant, Supports CEC Bypass, Simultaneous Transmission Of Uncompressed Data Over a Single 100m/328ft Cat5e/6 Cable, Uncompressed Video 1080pixels, 60Hz, 36bits, Audio Support Up to 7.1ch & Dolby TrueHD, Dts-H

Power Rating:

13W

Chassis Material:

Aluminium

Applications:

Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control

Humidity:

20 to 90%

Minimum Operating Temperature:

0°C

Storage Temperature Range:

-20 to +60°C

Performance

Maximum Input Resolution:

480i, 1080pixels@50Hz/60Hz, 1080pixels@24Hz

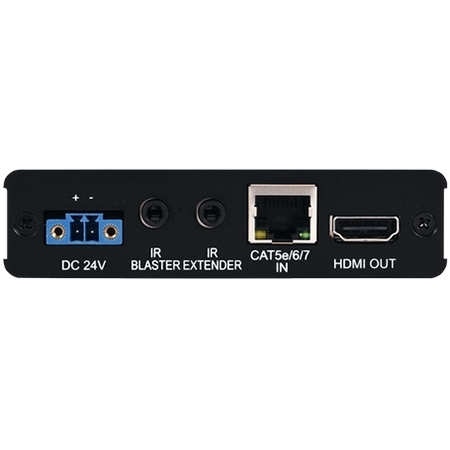

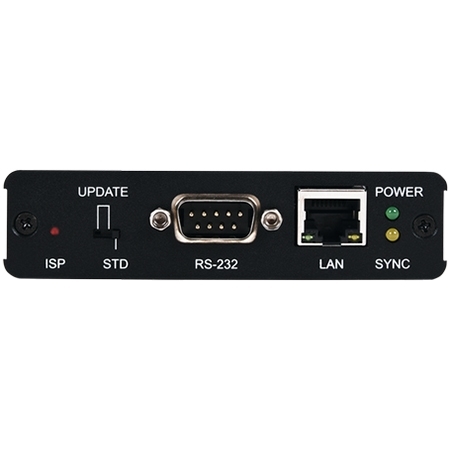

Inputs and Ports

Input Port Type:

1xHDMI, 1xIR Extender, 1xRS-232, 1xLAN

Output Port Type:

1xCAT5e/6/7, 1xIR Blaster

Power

ESD Protection Rating:

±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)

Dimensions

Width:

10.2cm

Depth:

11.3cm

Height:

2.5cm

Other

Standards Met:

CE, FCC Compliant, UL Listed
