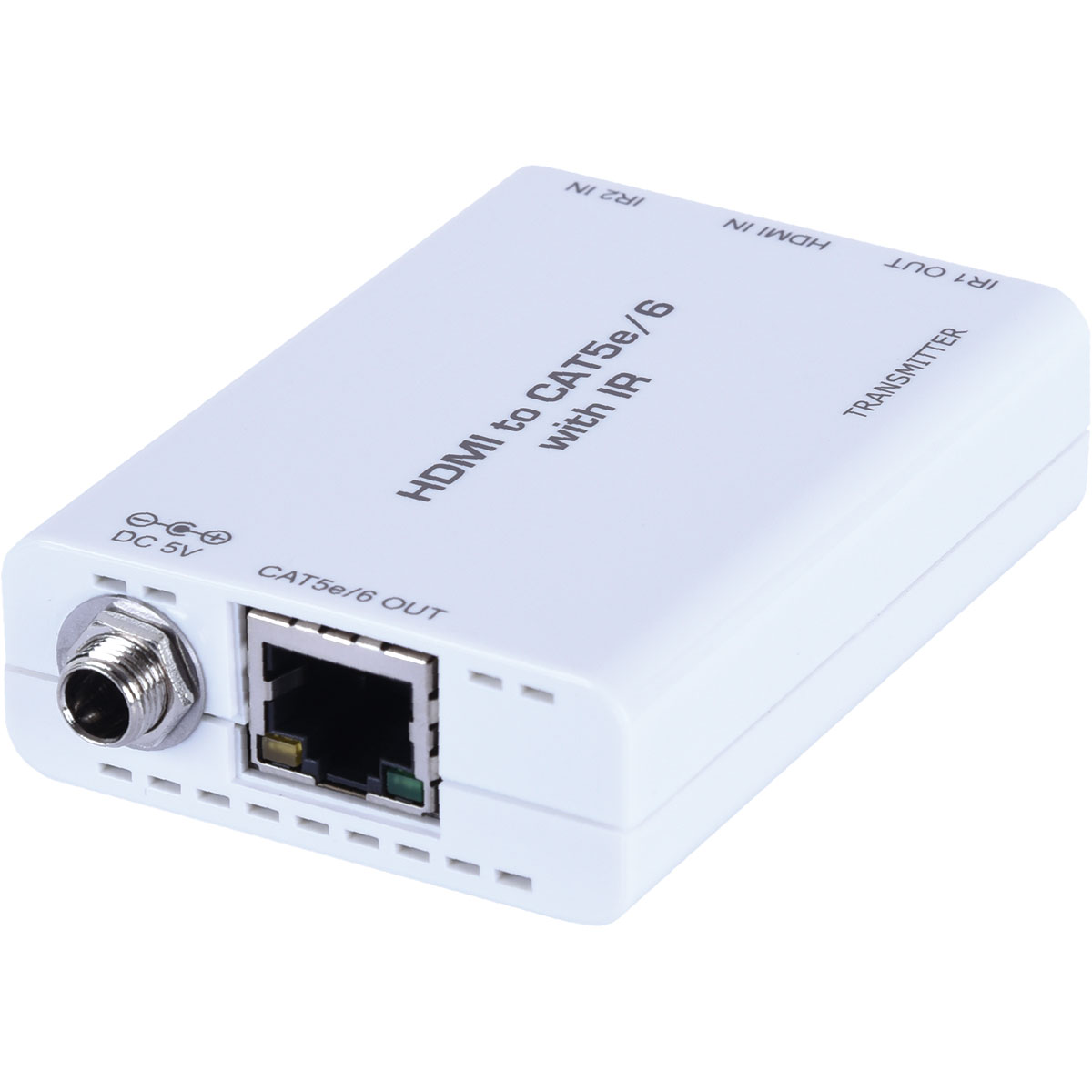

CH-514TXLN HDMI to CAT5e/6 with IR
Please sign in so that we can notify you about a reply
The HDMI Extender over Single Cat5e/6/7 Incorporating IR Signal Transfer allows for a More Efficient System Setup and is Easy to Install. Uncompressed Video and audio Can Be Transmitted to Distances of Up to 60 Meters (1080p) and Supports High Definition audio and 3d Signals. Designed With HDbasettm Technology for Greater Flexibility In Custom Installations With Full HDMI and Control Signal Transfer over a Single Cat5e/6/7 Cable.
Features
- HDMI With 3D, 4K2K Support, HDCP and DVI Compliant
- Supports HDMI (including HDCP) Over a Single Cat5e/6/7 Up To 60m
- Full HD Resolution Support (1080p @ 60Hz/12-bit), 3D, 4K2K @ 24/25/30& 4K2K Yuv420 and Pc Resolution Support (VGA To Wuxga) Over Cat5e/6/7 Cable
- Supports HDCP Repeater and Cec Bypass
- Supports Pass-Through Of audio formats Including Lpcm 2.0/5.1/7.1, Bitstream and HD Bitstream Over HDMI
Brand:
Cypress Technology
Specifications
Product Type:
The HDMI Extender
Maximum Operating Temperature:
+40°C
Colour:
White
Special Features:
HDMI with 3D, 4K2K Support, HDCP and DVI Compliant, Supports HDMI (including HDCP) Over a Single Cat5e/6/7 Up to 60m, Full HD Resolution Support (1080pixels@60Hz/12bits), 3D, 4K2K@24Hz/25/30& 4K2K Yuv420 and Pc Resolution Support (VGA to Wuxga) Over Cat5e
Power Rating:
2.8W
Chassis Material:
Plastic
Applications:
Residential Entertainment Sharing and Control, University Lecture Hall Display and Control, Retail Sales Display and Control, Meeting Room Presentation and Control, Commercial Advertising Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
H2.x
Maximum Input Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Maximum Output Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Output Signal Type:
4K@60Hz YUV 4:2:0
Inputs and Ports
Input Port Type:

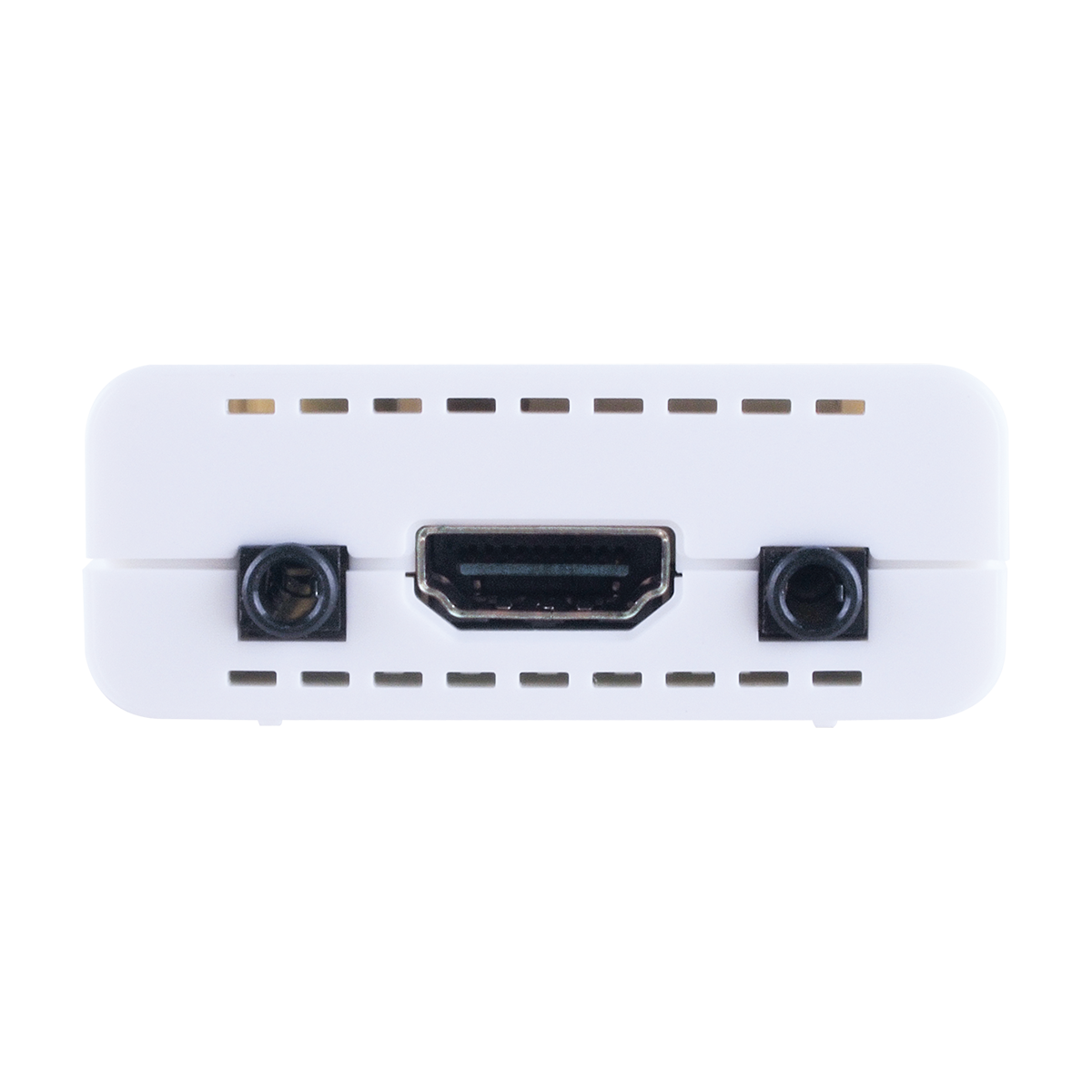

HDMI- Type A, IR Blaster(3.5mm)
Output Port Type:

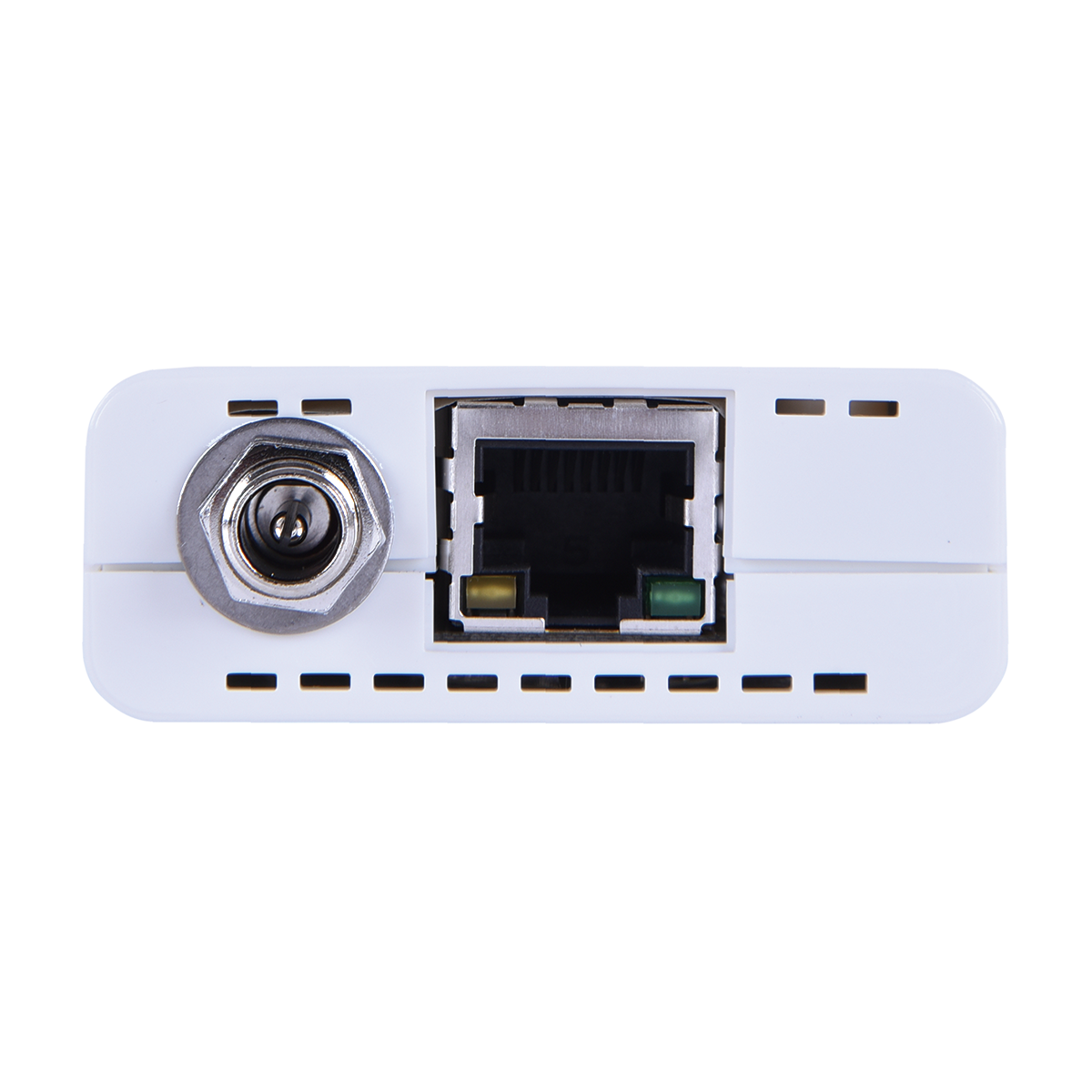

HDBaseT (RJ45), IR Extender(3.5mm)
Input Signal Type:
4K@60Hz YUV 4:2:0
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
5.5cm
Depth:
8.2cm
Height:
2.2cm
Weight:
60g
Other
Standards Met:
CE, FCC Compliant, UL Listed
