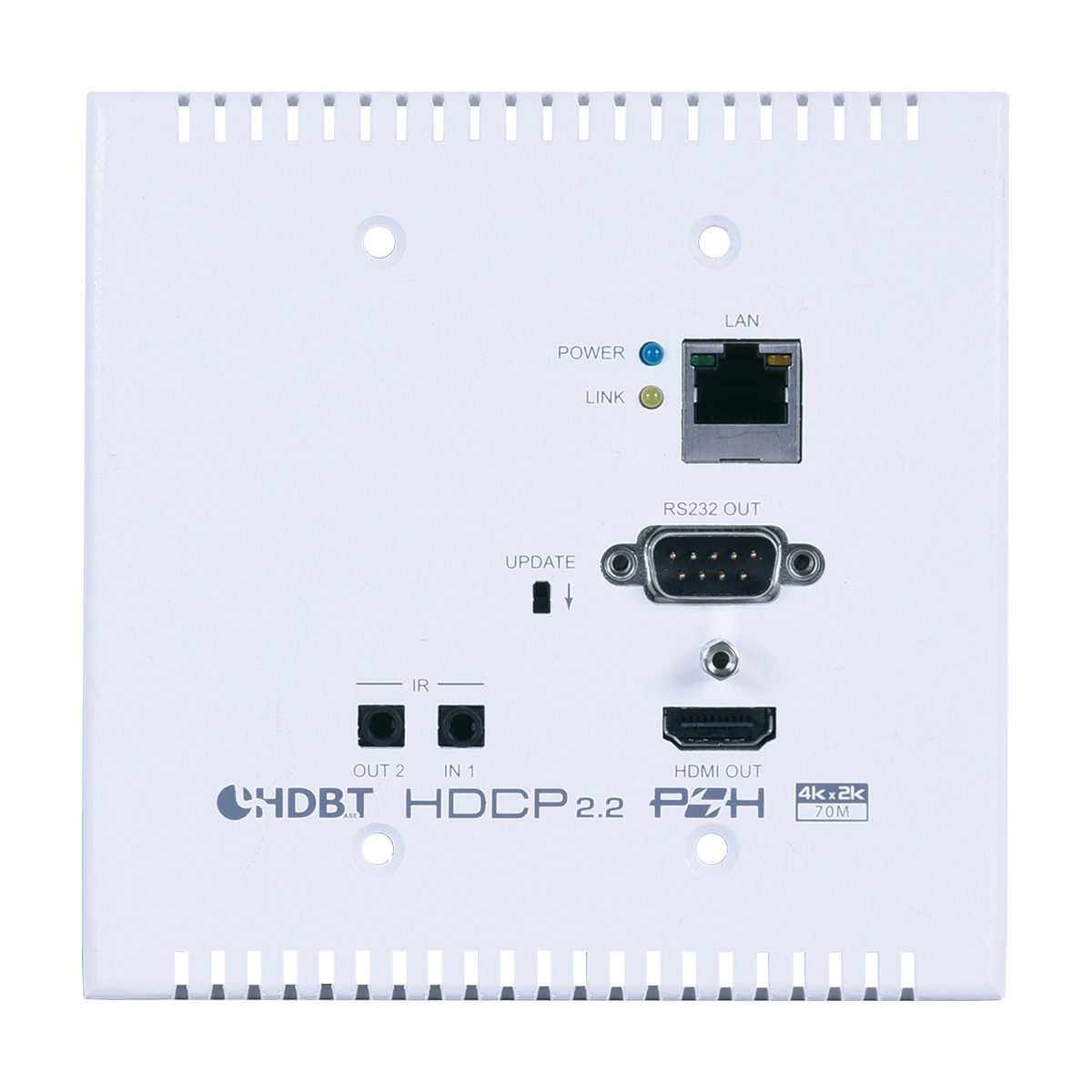

CH-1527RXWPUS HDMI over Cat5e/6/7 Wall-Plate Extender with LAN/IR/RS-232/PoH
Please sign in so that we can notify you about a reply

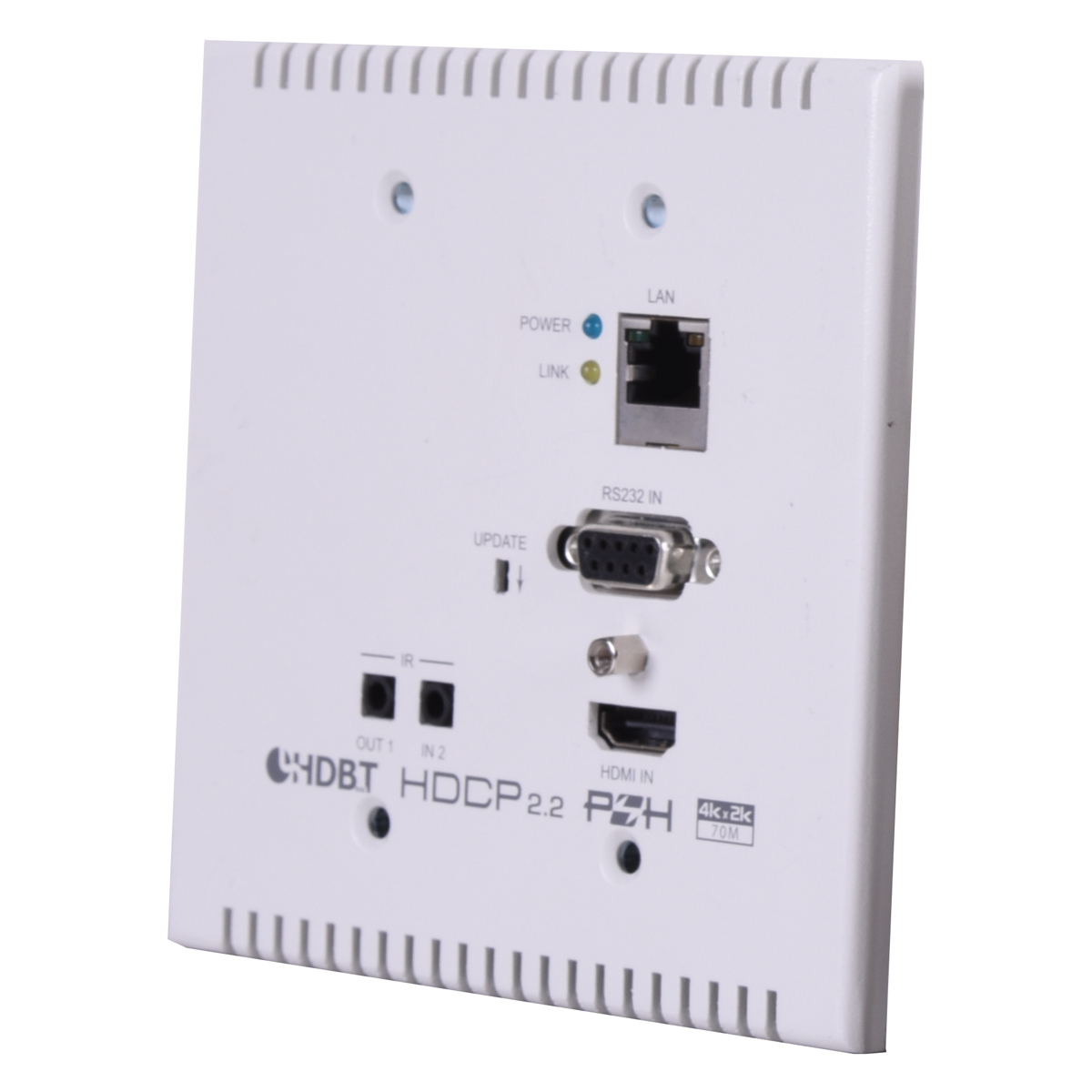

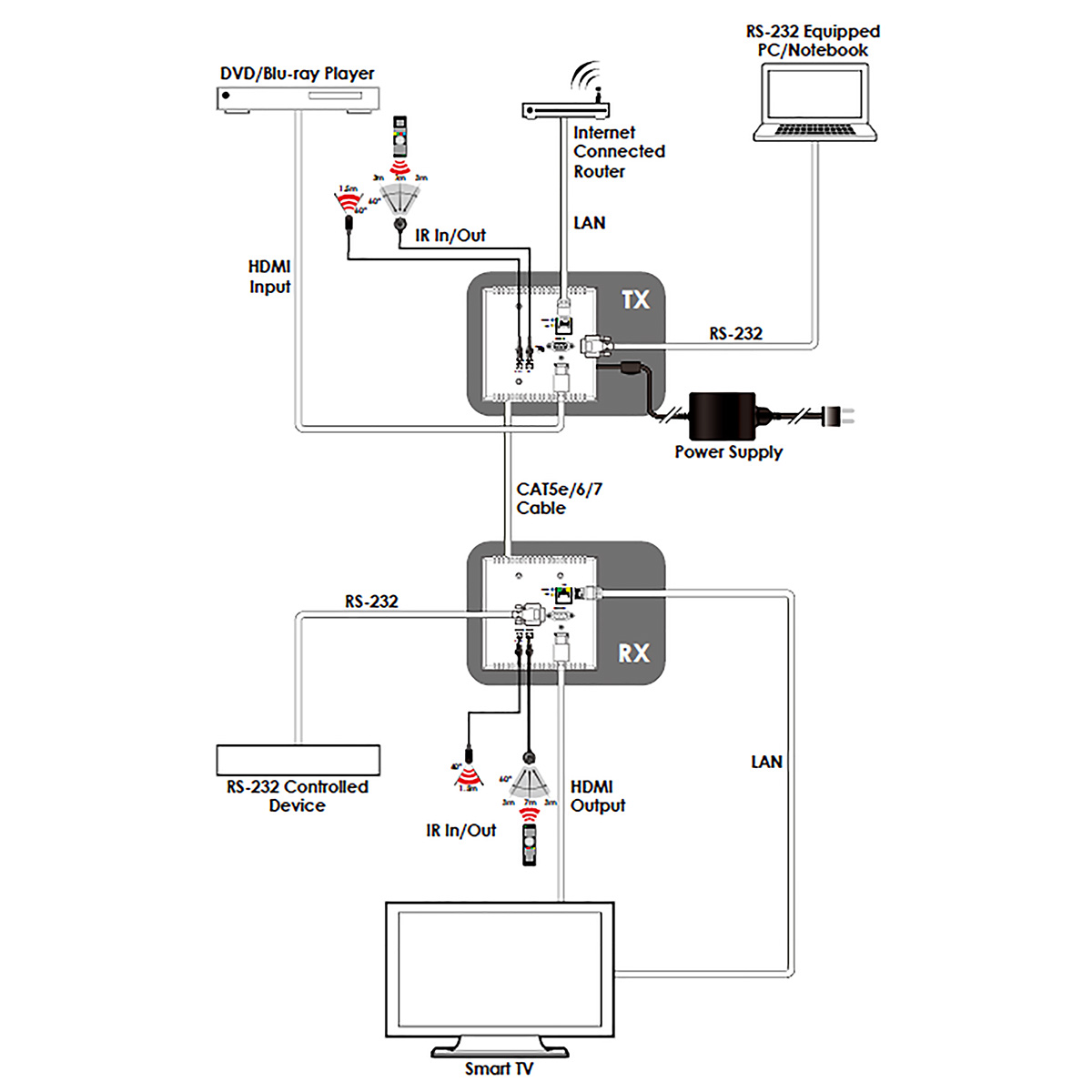

This HDMI over Single Cat.5e/6/7 Transmitter and Receiver Set Can Send Uncompressed, High Resolution, Video/audio over a Single Cable Up to a Distance of 100 Meters. In addition to the audio and Video Capabilities, it Can also Bi Directionally Transmit RS-232 and IR Control Signals as Well as Extending Your Local Lan to the Display Device us 2 Gang Design allowing Install On ac Outlet.the Receiver (PD) is Powered By the 48v Poh (Power over Ethernet) Function of the Transmitter (PSE), allowing for Greater Flexibility In Installations.
Features
- HDMI With 3D & 4K Support. DVI Signal Compliant
- Supports CEC Bypass
- Simultaneous Transmission Of Uncompressed Video, audio and Data Over a Single 100m/328ft Cat.5e/6/7 Cable
- 5play™ Convergence: HDMI, LAN, PoH & Control (IR & Rs-2232)
- Supports Resolutions Up to 4K @ 50/60hz (YUV 4:2:0) and 21:9 aspect Ratio
- Supports Standard 48v PoH From Transmitter (PSE) to Receiver (PD
- Supports HDMI I/O Cable Distance Up to 5m at 4K @ 50/60hz (YUV 4:2:0
- Installation Friendly Wall/Table Mount Case Design
Brand:
Cypress Technology
Product Type:
HDMI Over Cat.5e/6/7 Wall-Plate Extender with LAN/ IR/RS-232/PoH
Specifications
Maximum Operating Temperature:
+40°C
Colour:
White
Special Features:
HDMI with 3D & 4K Support. DVI Signal Compliant, Supports CEC Bypass, Simultaneous Transmission Of Uncompressed Video, Audio and Data Over a Single 100m/328ft Cat.5e/6/7 Cable, 5play™ Convergence: HDMI, LAN, Poh & Control (IR & Rs-2232), Supports Resolu
Power Rating:
12.87W
Chassis Material:
Metal
Applications:
High Resolution, Video/Audio Over a Single Cable Up to a Distance Of 100 Meters
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Storage Temperature Range:
-20 to +60°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Maximum Input Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Maximum Output Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Output Signal Type:
4K@60Hz YUV 4:2:0
Inputs and Ports
Input Port Type:
1xHDBaseT (RJ45) 1xIR (3.5mm)
Output Port Type:
1xHDMI-Type A, 1xIR In(3.5mm), 1xRS-232(3.5mm), 1xLAN(RJ45)
I/O Interface Type:
RS-232
Input Signal Type:
4K@60Hz YUV 4:2:0
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
12.7cm
Width:
12.5cm
Depth:
3.7cm
Weight:
206g
Other
Standards Met:
CE, FCC Compliant, UL Listed
