CH-1507TX HDMI Over CAT5e/6/7 Extender
Please sign in so that we can notify you about a reply
The CH-1507 transmitter and receiver set can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 metres. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. The Receiver (PD) can be powered by the PoE (48V) function of the transmitter (PSE), allowing for greater flexibility in installations.
Features- HDMI with 3D, 4K2K support, HDCP and DVI compliant
- Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ft
- HDBaseT 5Play convergence: uncompressed high definition Video and Audio, LAN serving, Power over Ethernet and RS-232/IR controls
- Uncompressed video support up to 1080p@60 Hz/36-bit
- High definition audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
- Master Audio
- Supports audio sampling rates of 32 kHz to 192 kHz
- Supports standard 48V power from Transmitter (PSE) to Receiver (PD)
- Supports CEC bypass
- Installation friendly
Brand:
Cypress Technology
Product Type:
HDMI Over CAT5e/6/7 Extender
Specifications
Maximum Operating Temperature:
40°C
Colour:
Silver
Special Features:
Supports Audio Sampling, Supports Standard 48v, Supports Cec Bypass
Power Rating:
15W
Chassis Material:
Aluminium
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1×IR Blaster, 1×IR Extender, 1×48V/0.83A DC Power Adaptor, Operation Manual
Storage Temperature Range:
-20 to +60°C
Performance
Maximum Input Resolution:
480i to 1080Pixel@50/60Hz, 1080Pixel@24Hz
Inputs and Ports
Input Port Type:

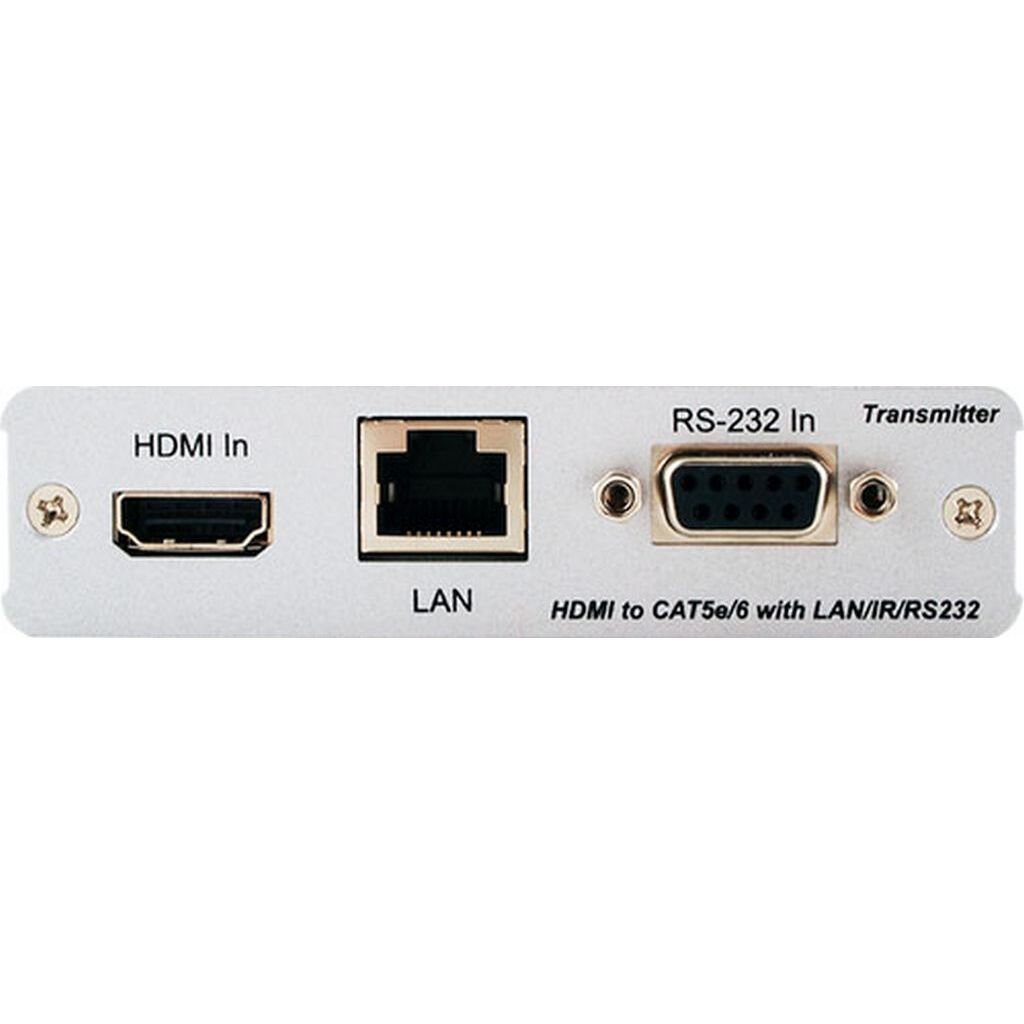

1×HDMI, 1×IR Extender,1×RS-232, 1×LAN
Output Port Type:
1×CAT5e/6/7, 1×IR Blaster
Number of Ports:
6
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
10.2cm
Depth:
10.7cm
Height:
2.5cm
Weight:
262g
Other
Standards Met:
CE/FCC/UL Certified, US/EU Standards
