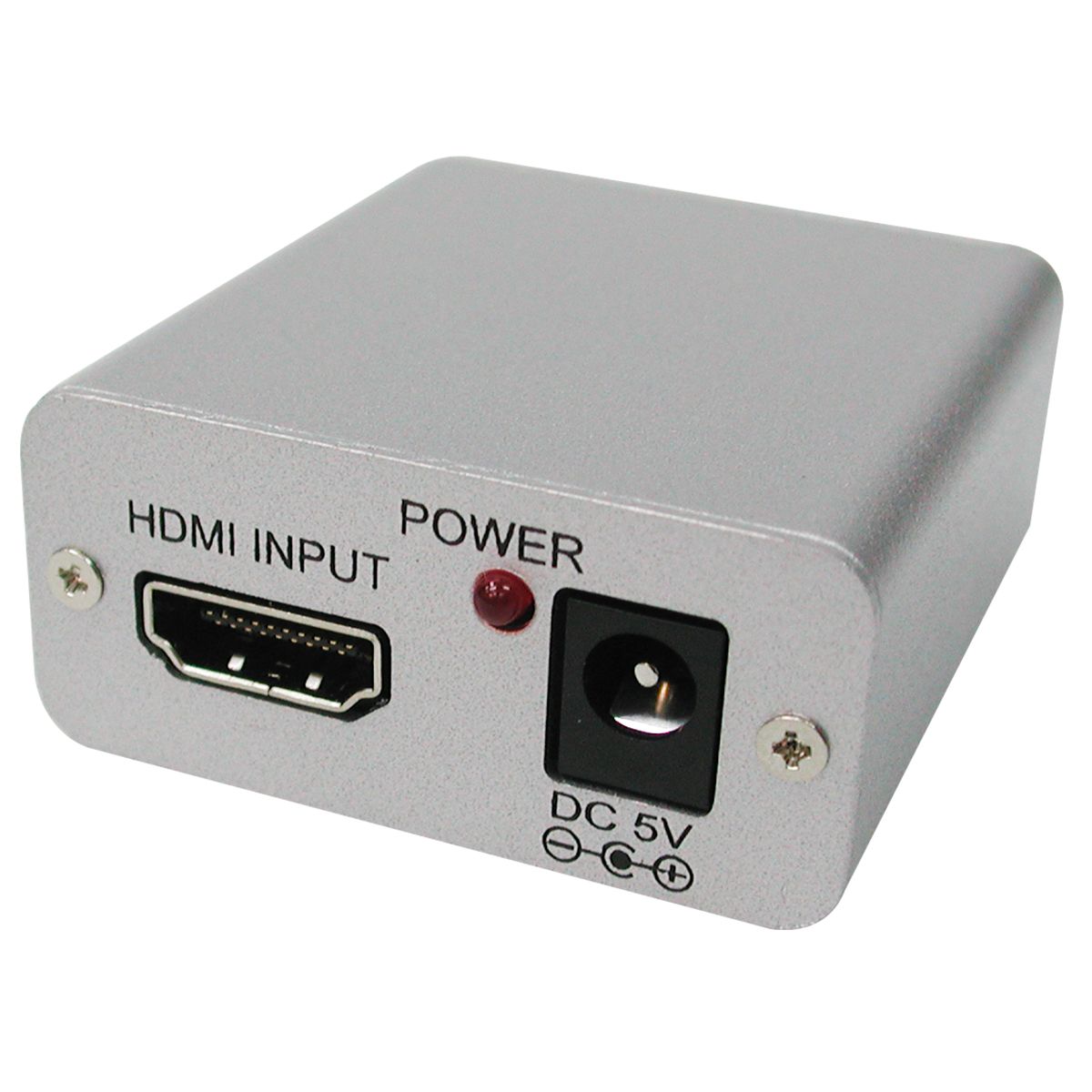

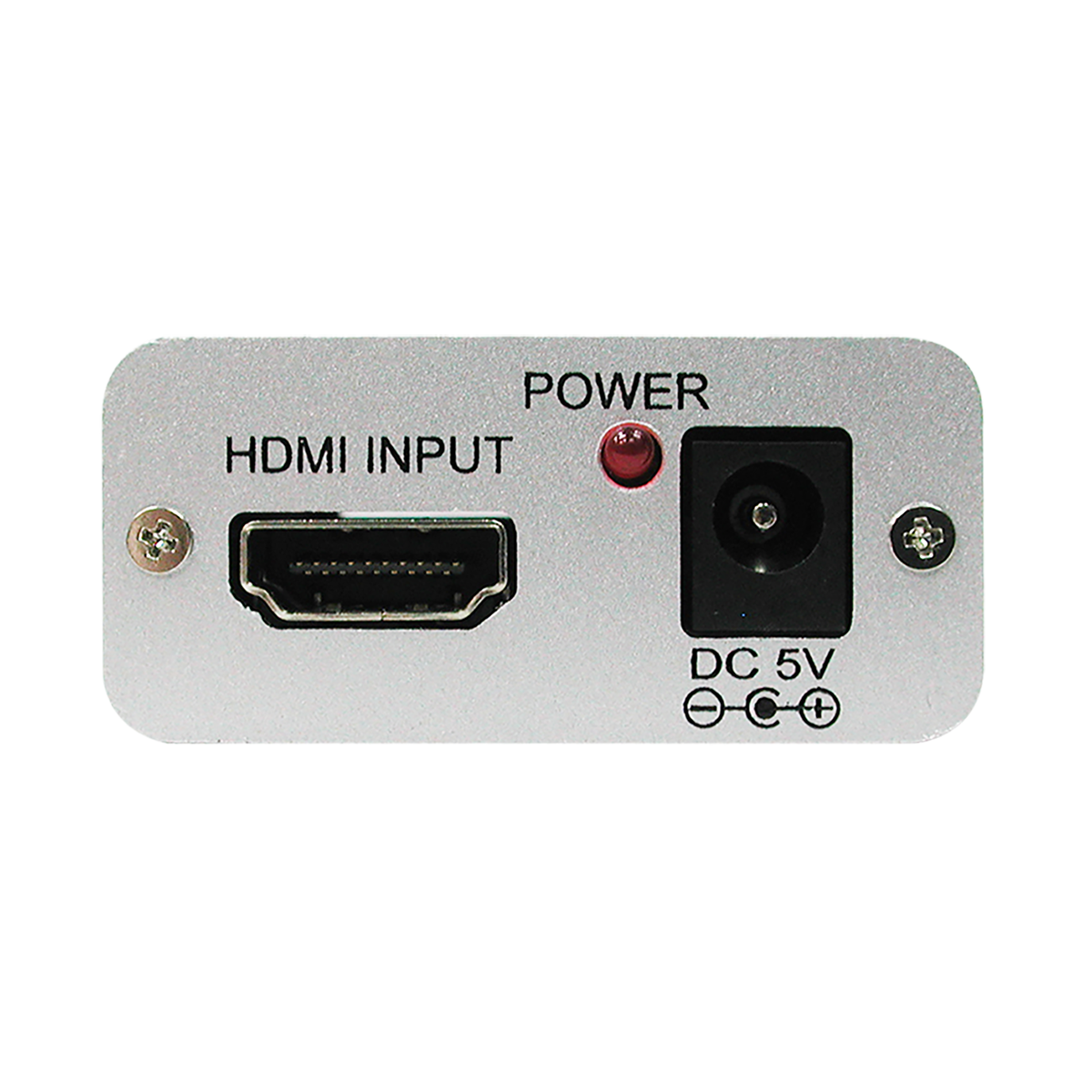

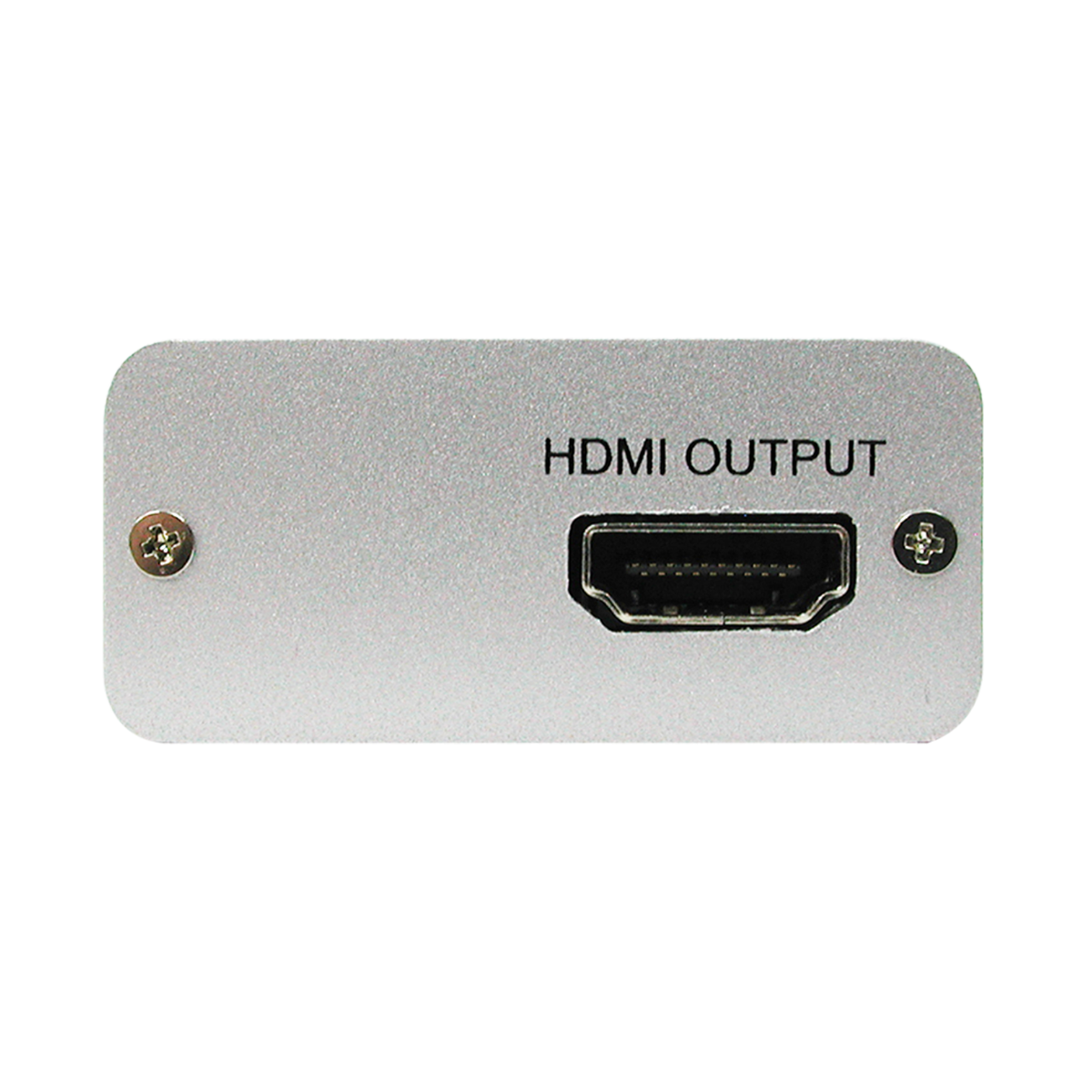

CH-101 HDMI Equalizer
Please sign in so that we can notify you about a reply
This is the Most advanced Solution for HDMI to HDMI Signal Repeater. This is Compatible With HDMI Specifications, a Cutting-Edge Technology Which Defines the Supports to Transfer Deep Color (12 Bits/Color) Video and New Lossless Compressed (Dolby TrueHD, Dolby Digital Plus and Dts-HD Master audio) Digital audio, With a High Bandwidth Up to 225 MHz. the HDMI Distribution amplifier also Does amplifies Signal and Equalization, So as to Provide High Performance I/O of audio and Video Through HDMI Cables for a Distance Up to 15 Meters Each Side at 1080p @ 60 Hz.
Features
- HDMI, HDCP 1.1 and Dvi1.1 Compliant
- Supports Digital Video formats In Deep Color Mode at Up to 36 Bits (12bits/color) and New Lossless Compressed (Dolby TrueHD, Dolby Digital Plus and Dts-HD Master audio) Digital audio
- Supports Equalize and Recover Incoming Tmds Data Before Re-Transmitting them With Optimal Quality Regardless Of the Incoming Signal Quality
- Supports High Definition Input Up to 1080p@60hz, Output Resolution Follows Input
- Full HDCP Compliant
- HDMI Cable Distance Tested With 1080p/8bits Resolution the I/O Source Can Run Up to 15/10 Meters. If 1080p/12bits the I/O Source Can Run Up to 10/10 Meters
- Supports Cec Function
- Easy to Install and Simple to Operate
Brand:
Cypress Technology
Product Type:
HDMI Repeater
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Silver
Special Features:
HDMI, HDCP 1.1 and DVI1.1 Compliant, Supports Digital Video Formats in Deep Color Mode At Up to 36bits (12bits/colour) and New Lossless Compressed (Dolby TrueHD, Dolby Digital Plus and Dts-HD Master Audio) Digital Audio, Supports Equalize and Recover Inco
Chassis Material:
Aluminium
Minimum Operating Temperature:
0°C
Performance
HDCP Compliance Type:
1.1
Inputs and Ports
Input Port Type:
1xHDMI
Output Port Type:
1xHDMI
Dimensions
Width:
5cm
Depth:
5.2cm
Height:
2.3cm
Weight:
62g
Other
Standards Met:
CE, FCC Compliant, UL Listed
No reviews found
