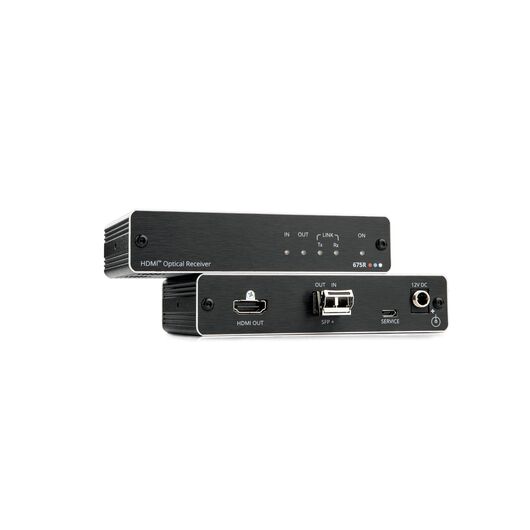

675R/T 4K 4:4:4 HDMI Transmitter/Receiver over Extended-Reach MM/SM Fiber Optic
Please sign in so that we can notify you about a reply
675R/T is a high−performance HDMI fiber extender kit for ultra−reach extension of 4K@60Hz (4:4:4) HDMI signals. 675T converts the HDMI input signal to an optical signal that is transmitted over a fiber optic cable to 675R, which converts it back to an HDMI signal. 675R/T includes 2 multi−mode SFP+ transceivers, but can be used with any Kramer certified SFP+ transceiver, such as a single−mode SFP+ transceiver.
Features
- High Performance Standard Fiber Extender Kit — Provides ultra–reach signals over either multi–mode or single–mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units. Near–zero latency video chroma sub–sampling conversion technology, is employed to auto–adapt above 10G HDMI signals to 10G optical link signal data–rate.
Note: To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi–performance OSP SFP+ pluggable optical units. - HDMI Signal Extension — HDCP 2.2 compliant and supports up to 18G (6G per channel) data rate, LPCM 7.1, Dolby True HD, and DTS–HD as specified in HDMI 2.0.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Cost–Effective Maintenance — Status LED indicators for power, source, sink, and fiber link connections detection facilitate easy local troubleshooting.
- Easy Installation — DigiTOOLS® rack mountable fan–less enclosure enables side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
50-00016090
Specifications
Product Type:
HDMI Extender Kit Over Ultra-Reach MM/SM Fibre Optic
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
High Performance Standard Fibre Extender Kit, HDMI Signal Extension, I-EDIDPro™ Kramer Intelligent EDID Processing™, Cost-Effective Maintenance, Easy Installation
Applications:
Highly Secured and Reliable Signals Ultra-Long Extension For: Governmental, Medical, Rental and Staging, Point-To-Point Optical Distribution Of AV Signals Over Large Spaces, Ultra-Long Signals Extension for Multi-Room and Inter-Building Ultra-Long Connect
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
2 Mm Sfp+ Transceiver, 2 Power Adapters, 2 Mounting Bracket Set
Storage Temperature Range:
-40 to +70°C
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Maximum Output Resolution:
4096x2160pixels@60Hz 4K@60 (4:4:4)
Inputs and Ports
Input Port Type:
LC Connector(S), HDMI
Output Port Type:
HDMI: on a Female HDMI Connector, Fibre Optic: on LC Connector(S)
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.5kg
Other
Standards Met:
CE, UL Listed, RoHS Compliant, WEEE
