613R/T 3G SDI RX/TX Extender Over ultra-reach SM Fibre
Please sign in so that we can notify you about a reply

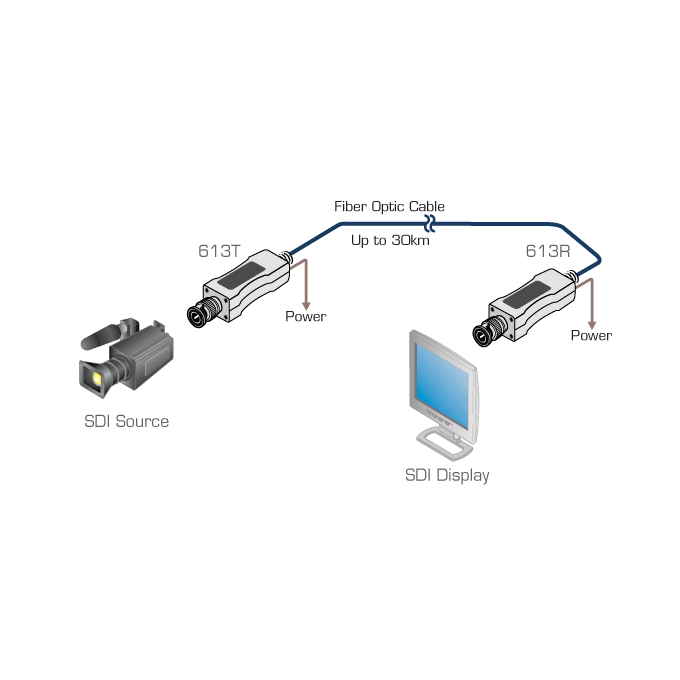

Kramer's 613R/T is a Receiver/Transmitter pair for Digital Video Signals Up to 3G HD−SDI. the 613t Converts the Digital Signal Into an Optical Signal That it Transmits over Single−Mode Fiber Optic Cable and the 613R Decodes the Optical Signals Back to the original Digital format Video Signal.
Features
- Maximum Data Rate-3Gbps.
- HDTV Compatible.
- Multi-Standard Operation-SDI (SMPTE 259m and Smpte 344m), HD-SDI (SMPTE 292m), 3G HD-SDI (SMPTE 424m) & Dvb–asi.
- Laser Standards Compliance-IEC 60825–1, FDA 21CFR1040;Laser Class 1: Safety Of Laser Products.
- Kramer Equalization & Re-Klocking™ Technology-Rebuilds The Digital Signal to Travel Longer Distances.
- System Range-Up to 30km (18.6mi) at 3G-HD–SDI (1080p).
- Fiber Cable- Single-Mode Fiber Optic With Stconnectors.
- Compact Size-Part Of The Kramer tools™ Family Of Compact, High-Quality and Cost-Effective Solutions.
Brand:
Kramer
Part number:
94-0006130
Specifications
Product Type:
3G SDI RX/TX Extender Over Ultra-Reach SM Fibre
Maximum Operating Temperature:
+70°C
Special Features:
Maximum Data Rate, HDTV Compatible, Multi-Standard Operation, Laser Standards Compliance, Kramer Equalization & re-Klocking™ Technology, System Range-Up to 30km'Fibre Cable, Compact Size
Applications:
Digital Flat Panel and Plasma Displays, for Medical, Commercial and Travel, Conference Rooms and Auditoriums, Kiosks with Digital Flat Panel Displays for Presenting Information, Led Signboards in Streets and Stadium
Humidity:
10 to 90%
Minimum Operating Temperature:
-20°C
Includes:
2 Power Supply
Storage Temperature Range:
-30 to +85°C
Performance
Maximum Output Resolution:
Up to WUXGA@60Hz (1.65Gbps)
Inputs and Ports
Input Port Type:
1xSD/HD/3G HD-SDI, 75ω on a BNC Connector (613T), 1 ST Optical Connector (613R)
Output Port Type:
1 ST Optical Connector (613T), 1 SD/HD/3G HD-SDI, 75ω on a BNC Connector (613R)
Dimensions
Width:
1.9cm
Depth:
8.3cm
Height:
1cm
Other
Standards Met:
IEC 60825-1, FDA 21CFR1040
