WP-580T/EU(W)-86 HDMI Wall Plate Transmitter, 3 Channels, 1.2 Gbps Transmission Rate, 1xHDMI Connector Input Port Type, 1 HDBase T RJ-45 ConnectorOutput Port Type

WP-580T/EU(W)-86

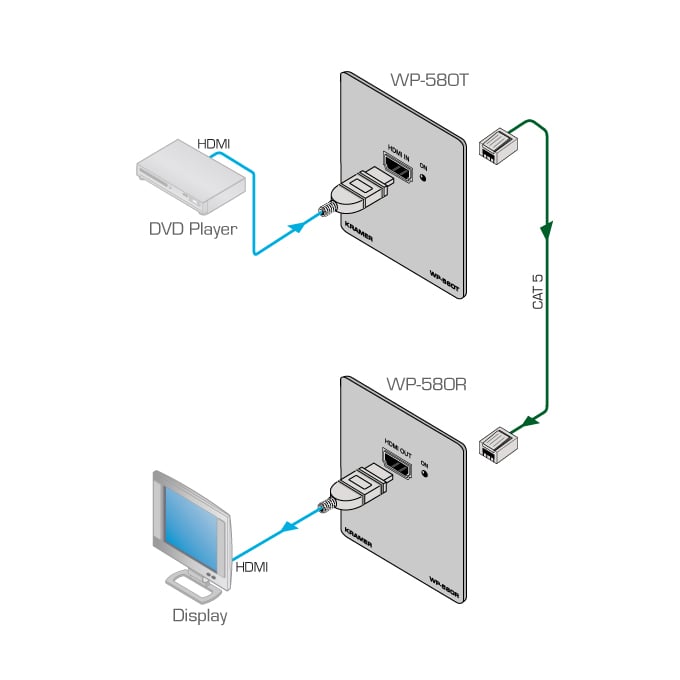

The WP−580T is a high−performance, HDBaseT twisted pair wall plate transmitter for 4K@60Hz (4:2:0) HDMI signals. The WP−580T inputs the signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580R receiver. The WP–580T(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

Features

  • Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP 2.2 Compliance.
  • HDBaseT™ Technology.
  • HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC.
  • 3D Pass–Through.
  • EDID PassThru — Passes EDID signals between the source and display.
  • 2K & 4K Support.
  • System Range — Up to 70m (230ft).
  • Cable — For optimum range and performance using HDBaseT™, use Kramer's BC–HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non–Kramer CAT 6 cable may not reach these ranges.
  • Indicators — Status LEDs for input, output, link and power.
  • Dimensions — 12.4cm x 3.12cm x 7.9cm (4.88" x  1.29"  x 3.12") US; 15.1cm x 2.96cm x 8.6cm (5.95" x 1.17" x 3.39"), 15.1cm x 2.96cm x 8.0cm (5.95" x 1.17" x 3.15") EU (W, D, H).
Brand:
Kramer
Part number:
50-800430090
Product Type:
HDMI Wall Plate Transmitter
Specifications
Transmission Range:
70m
Version:
EU 86
Special Features:
With Midway Size 2 Gang Decora Design Frame, EDID Pass Thru, Status LEDs
Wireless Transmission:
1.2Gbps
Chassis Color:
Silver
Includes:
Power Supply
Performance
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:
1xHDMI Connector
Output Port Type:
1 HDBase T RJ45 Connector
Power
Current Rating:
360mA
Dimensions
Length:
3cm
Width:
15.1cm
Depth:
3cm
Height:
8cm
Weight:
0.2kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
HDMI and HDCP 2.2, HDTV Compliance

WP-580T/EU(W)-86 1 (WP-580T.pdf, 146 Kb) [Download]
