WP-571EU(W)-86 Wall Plate Transmitter, 90/70m Transmission Range, Stereo Sound, White
Please sign in so that we can notify you about a reply

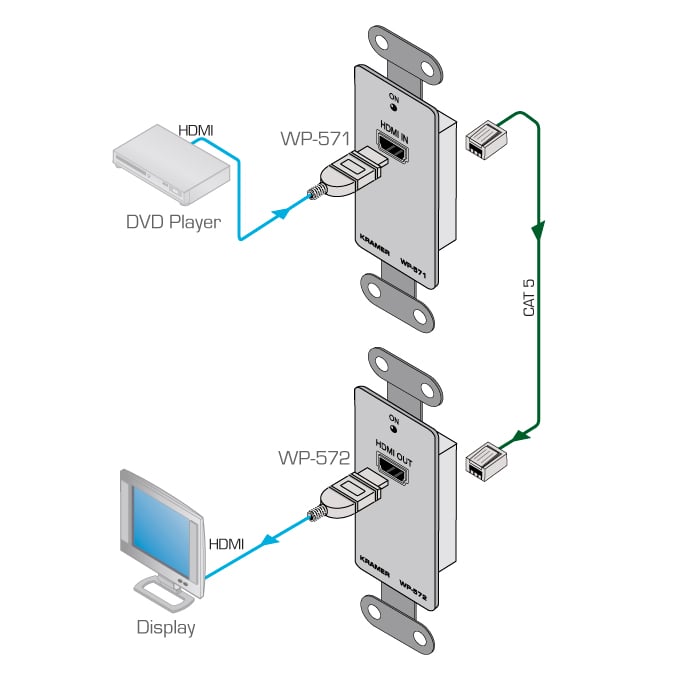

The WP−571 is a PoC DGKat™ wall plate transmitter for HDMI signals. The WP−571 converts an HDMI signal to a DGKat™ twisted pair signal that it transmits to a WP−572.
Features
- Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
- HDMI Support — HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD.
- 3D Pass–Through.
- System Range — Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables.
Note: Transmission range depends on the signal resolution, graphics card and display used. If using third–party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly. - EDID PassThru — Passes EDID signals between the source and display.
- Active Power Indication — The ON LED lights red when receiving power only, orange when either input or output and power are attached, and green when both an active input and output are attached.
- Power Connect™ System — A single connection to the transmitter or the receiver powers the system when the devices are within 90m (295ft) of each other.
- Dimensions — 3.3cm x 3.6cm x 10.4cm (1.3" x 1.42" x 4.1") W, D, H.
Brand:
Kramer
Part number:
50-80172490
Product Type:
Wall Plate Transmitter
Specifications
Transmission Range:
90m (1080i@60Hz), 70m (1080pixels@60Hz)
Version:
EU 86
Sound Field:
Stereo
Special Features:
HDTV Compatible, HDCP Compliant, HDMI Support-HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, 3D Pass-Through
Chassis Color:
White (Frame)
Applications:
Board/Conference and Training Rooms, Presentation Systems, Signal Distribution and Home Theatre
Includes:
Power Supply
Performance
Video Format:
720pixels,1080i and 1080pixels@60Hz), 480pixels, 576pixels
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:
1xHDMI Connector
Output Port Type:
1xDGKat™ Twisted Pair on a RJ45 Connector
Interface Type:
HDMI, DVI
Power
Current Rating:
190mA
Dimensions
Width:
8.cm
Depth:
2.9cm
Height:
8cm
Weight:
0.1kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
CE, ISO 9001 Certified
