VEX-T1201T Cable Transmitter, Plastic Chassis, 12V DC, 1A, 4.6W, 1xHDMI, 60m
Please sign in so that we can notify you about a reply

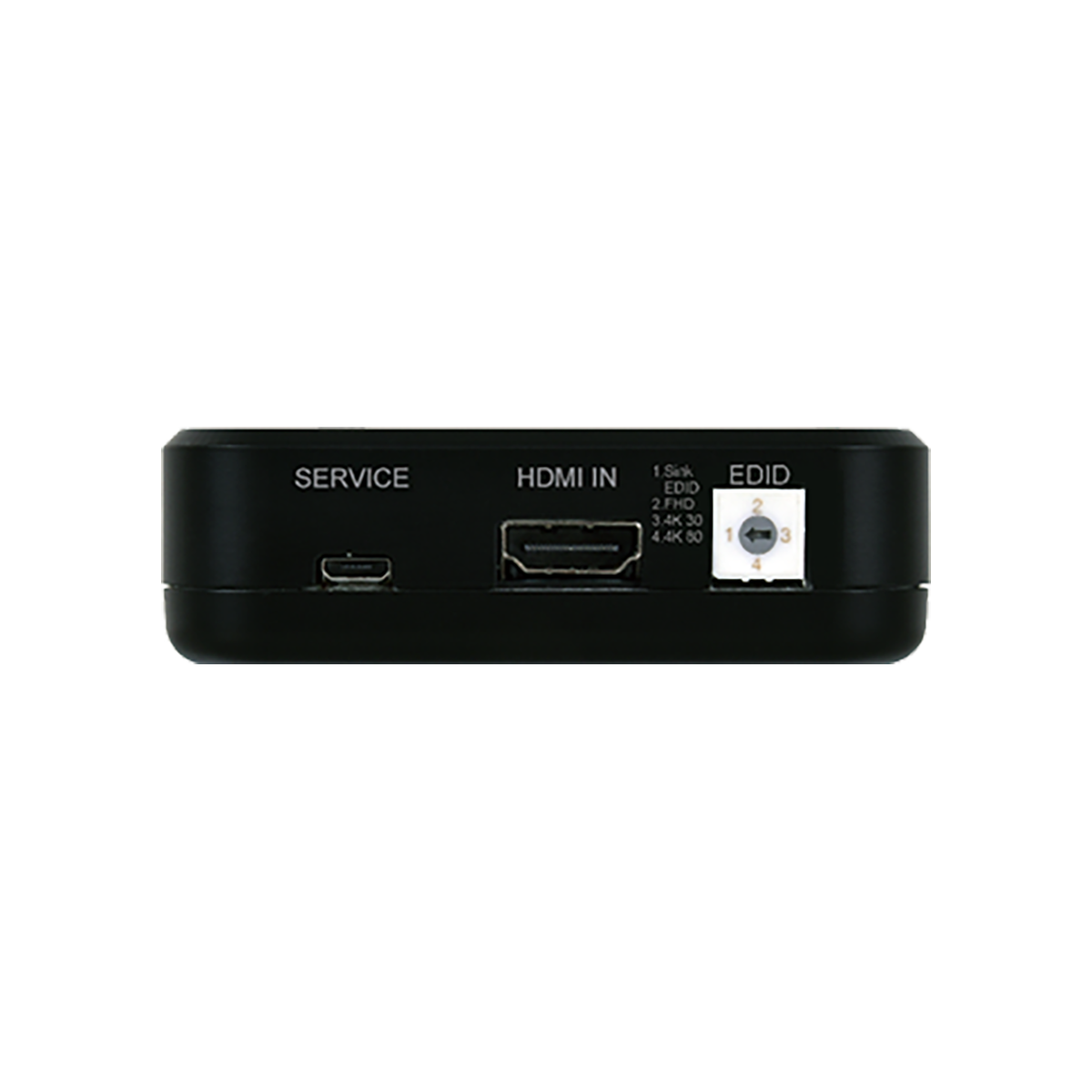

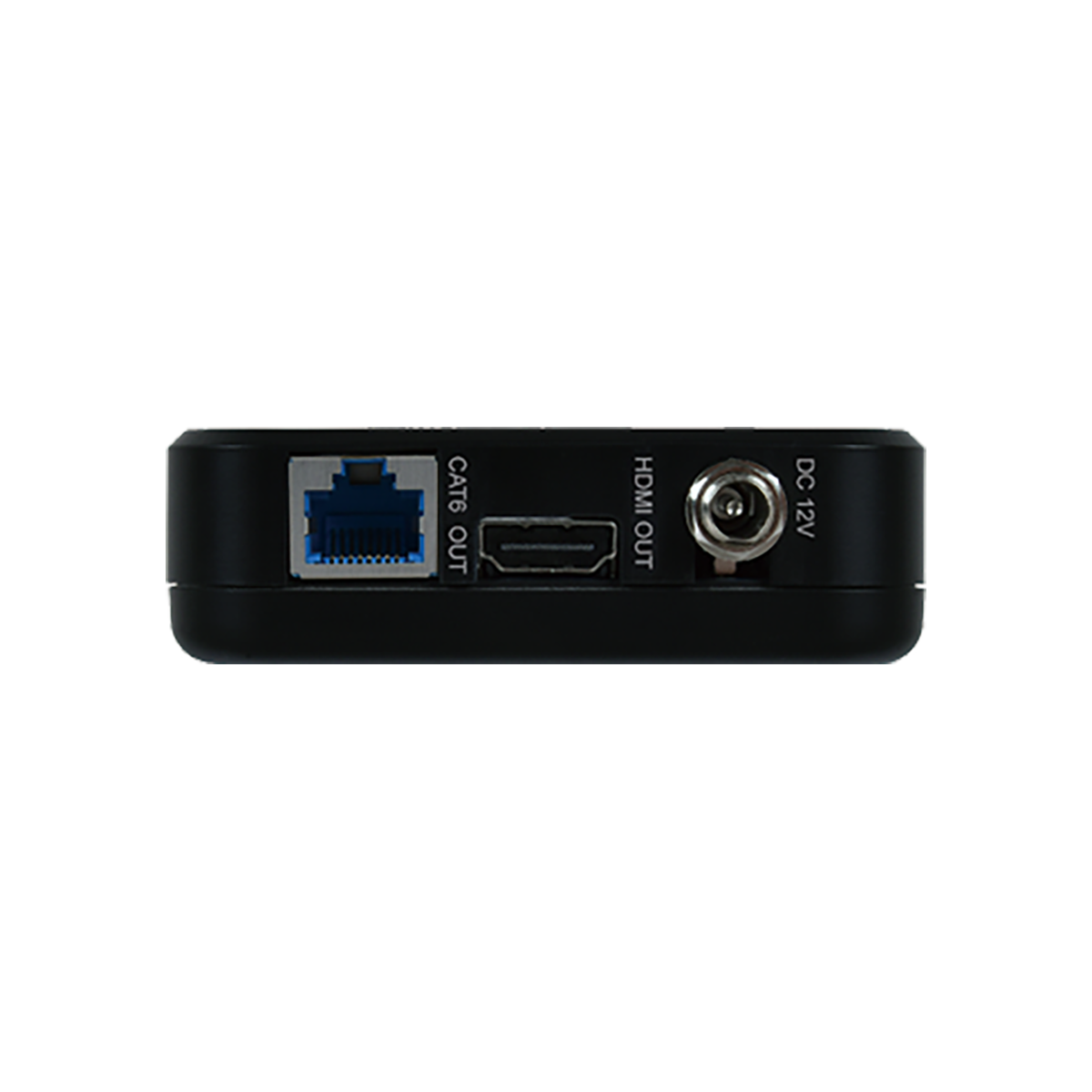

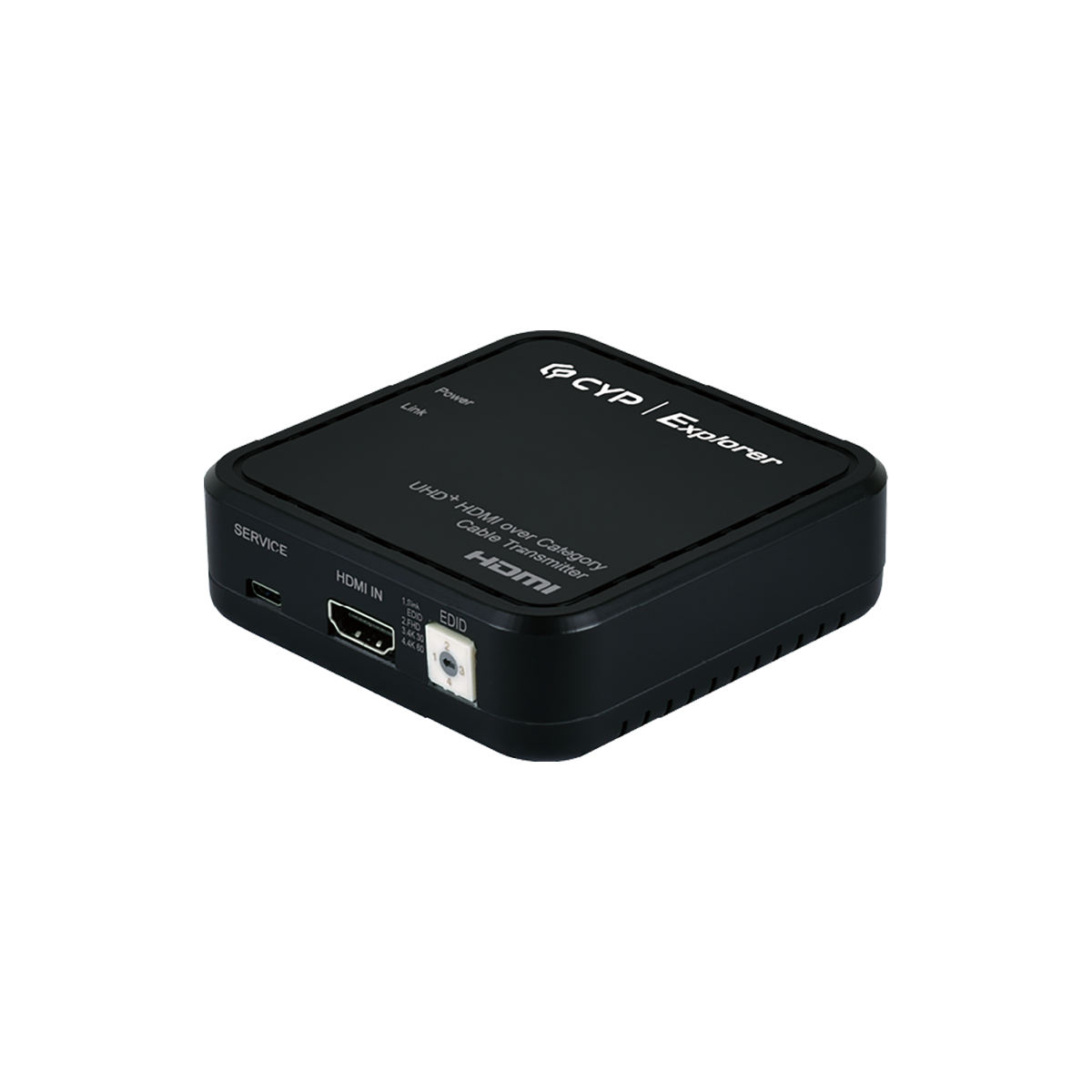

The UHD+ HDMI over Category Cable Transmitter is able to extend HDMI signals and transmit UHD video and audio signals through a single CAT6/6A/7 network cable. The transmission distance can be up to 60m per segment, allowing the user to cascade the system without signal loss or introducing delay.
Features- Point to point extension for audio and video
- Transmitter has HDMI local Loop out
- Receiver can switch video and audio sources between local HDMI input and CAT input
- CAT6/6A/7 Cable can reach to up to 60M
- Supports POC (Power over Cable), transmitter powers compatible receiver
- Multi-channel audio compliant for PCM7.1 up to 192KHz, AC-3(Dolby5.1), and DTS 5.1
- EDID can switch among 4 modes: Sink EDID, FHD, UHD, and UHD+
Brand:
Cypress Technology
Product Type:
Cable Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Encryption:
8bit
Transmission Range:
60m
Number of Channels:
Special Features:
Point to Point Extension for Audio and Video
Power Rating:
4.6W
Chassis Material:
Plastic
Applications:
Long Distance Video and Audio Extension , Hotel Or Convention Center Displays, Lecture Halls, Auditoriums and Classroom, Houses of Worship, Conference Rooms and Boardrooms
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Includes:
1×UHD+ HDMI over Category Cable Transmitter, 1×12V/3A DC Power Adapter, 1×Operation Manual
Performance
Video Format:
3840x2160p60 YUV(4:4:4)
Inputs and Ports
Input Port Type:
1xHDMI
Output Port Type:
1xHDMI, 1xCAT6
Interface Type:
HDMI, USB
Power
Current Rating:
3A
Dimensions
Width:
9.1cm
Depth:
8.5cm
Height:
2.6cm
Weight:
150g
Other
Voltage Rating:
12V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
