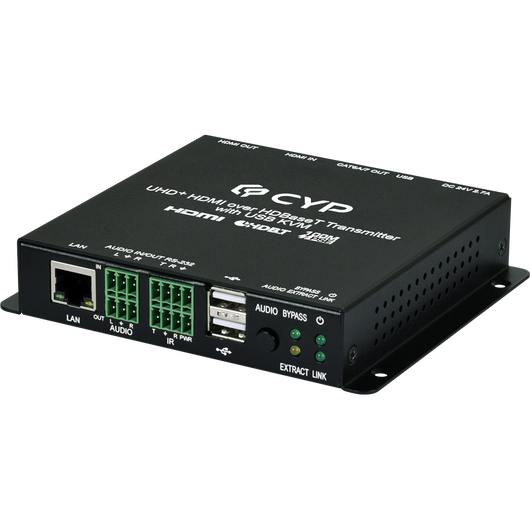

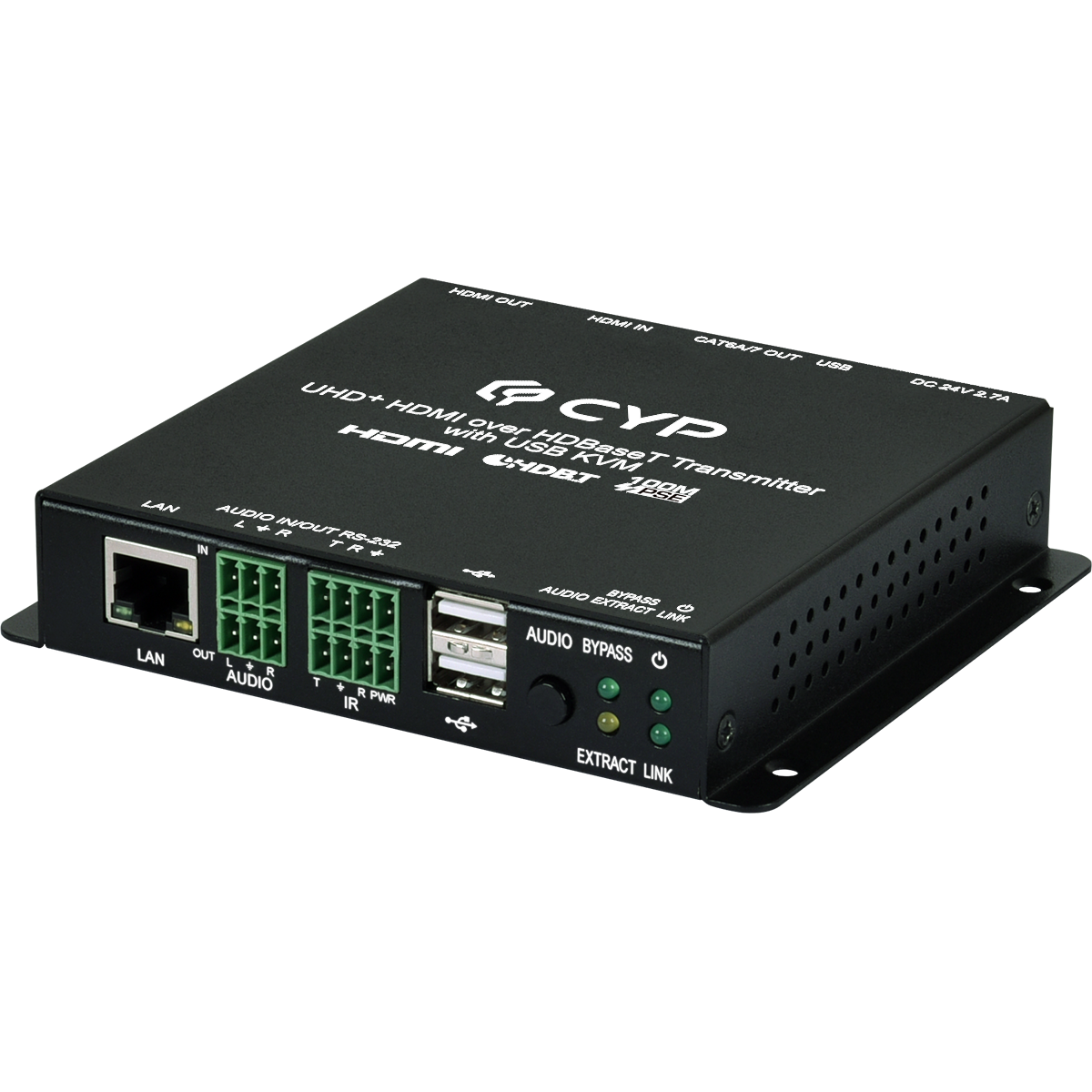

VEX-E4501T UHD+ HDMI over HDBaseT Transmitter
Please sign in so that we can notify you about a reply
This Transmitter is new generation HDBaseT 3.0 technology, it is a great solution for extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit) video and HD audio as well as Ethernet and control via a single run of Cat.6a/7 cable over distances of up to 100 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and 1000BaseT Ethernet. This Transmitter is ideal for any scenario which needs uncompressed video like medical equipment, conference room, education and anything you want to extend.
Features
- HDMI input and output with 3D & 4K video support (18Gbps)
- 1 HDMI output (Functions as local monitor output)
- HDBaseT 3.0 compatible, Backward compatibility with HDBaseT 2.0/1.0 product
- Supports HDBaseT features: HD video and audio, individual 1000BaseT and 100BaseT Ethernet ports, POH and control (bi-directional IR/RS-232/ USB pass-through)
- Supports analog audio and optical audio pass-through.
- Multiple USB hosts may be connected at once (up to 2 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
- Supports providing PoH power from Transmitter to Receiver in same HDBaseT port.
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDBaseT Transmitter
Maximum Operating Temperature:
+50°C
Encryption:
8bits
Transmission Range:
100m
Number of Channels:
Sound Field:
Stereo
Special Features:
HDMI Input and Output with 3D and 4K Video Support (18Gbps), Supports Analog Audio and Optical Audio Pass-Through, Multiple USB Hosts may Be Connected at Once (up to 2 Total, Between the TX and a Compatible RX Unit) with a Single Selected Host Active at a
Power Rating:
12W
Chassis Color:
Black
Chassis Material:
Steel
Applications:
Household Entertainment Sharing and Control, Lecture Halls/Auditoriums and Classroom, Houses of Worship, Conference Rooms and Boardrooms, Hotel Event Spaces
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Bidirectional IR, RS-232, USB 2.0, Gigabit Ethernet
Performance
Video Format:
4K@60Hz 8bits RGB 4:4:4, HDBT 4K@60Hz 8bits RGB 4:4:4
Impedance Rating:
10kΩ
Frequency Rating:
30kHz to 50kHz
Maximum Input Sound Pressure Level:
1kHz (0dBFS)
Reference Audio Input Level:
>80dB
Inputs and Ports
Input Port Type:
1xHDMI-Type A
Output Port Type:
1xHDMI-Type A, 1xHDBT(RJ45)
Power
Current Rating:
2.7A
Dimensions
Width:
12.8cm
Depth:
11.2cm
Height:
2.5cm
Weight:
400g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
