TP-780TXR HDMI, PoE, RS-232, ETH & IR over HDBaseT Twisted Pair Transmitter
Please sign in so that we can notify you about a reply

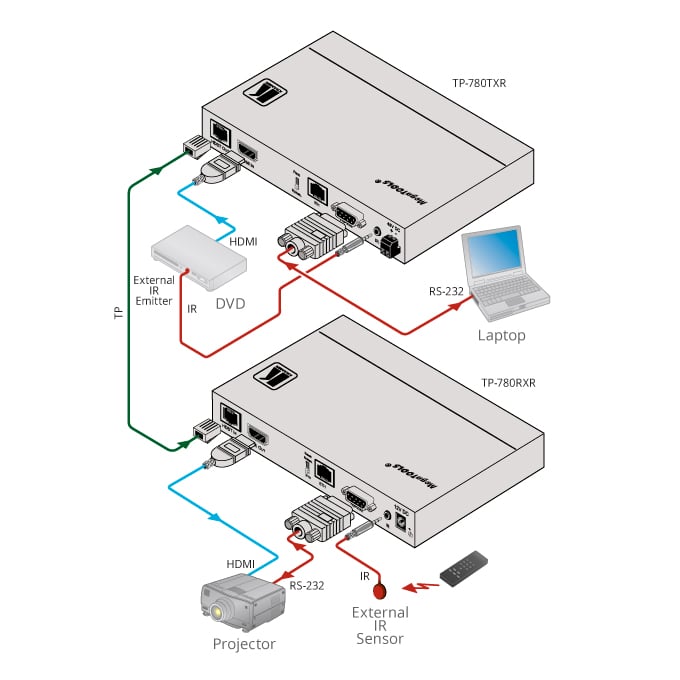

TP−780Txr is a high−performance, extended−reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI, Ethernet, RS−232 and IR signals over twisted pair. The TP−780Txr converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
Features
- High Performance Standard Extender — Professional HDBaseT extender for providing extended–reach signals over twisted–pair copper infrastructures. TP–780Txr is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
- HDMI Signal Extension — HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
- Cost–effective Maintenance — Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection and the K–Upload tool ensures lasting, field–proven deployment.
- Easy and Elegant Installation — Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
50-80399190
Product Type:
PoE Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Transmission Range:
180m (1080p), 100m (4K@60Hz)
Sound Field:
Stereo
Special Features:
HD Base T 1.0 Transmitter, Ethernet and Control Signal Extension, Poe Provider
Applications:
Long Distance AV and LAN Signal Extension for Multi Room/Large Dividable Auditoriums and Lecture Hall Connectivity, AV and LAN Extension in Conference Rooms/Boardrooms/Control Rooms/Hotels and Large Church Facilities
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply 48V/1.36A, Bracket Installation Kit
Performance
Video Format:
Up to 4K UHD@60Hz (4:2:0) 24bpp, DTS-HD, 2K, 4K
Frequency Rating:
20kHz to 1.2MHz
Inputs and Ports
Input Port Type:
1xHDMI on an HDMI Connector
Output Port Type:
1xHDBT on an RJ45 Female Connector
Interface Type:
Ethernet Interface, IR Interface, Bidirectional RS-232 Extension-Serial Interface
Power
Current Rating:
1.36A (Source), 240mA (Consumption)
Dimensions
Width:
18.75cm
Depth:
11.5cm
Height:
2.5cm
Weight:
0.4kg
Other
Voltage Rating:
48V DC (Source), 48V DC (Consumption)
Standards Met:
CE, ISO 9001, ISO 14001, OHSAS 18001
