TP-583T 4K HDR HDMI Transmitter with RS-232 & IR over Long-Reach HDBaseT
Please sign in so that we can notify you about a reply

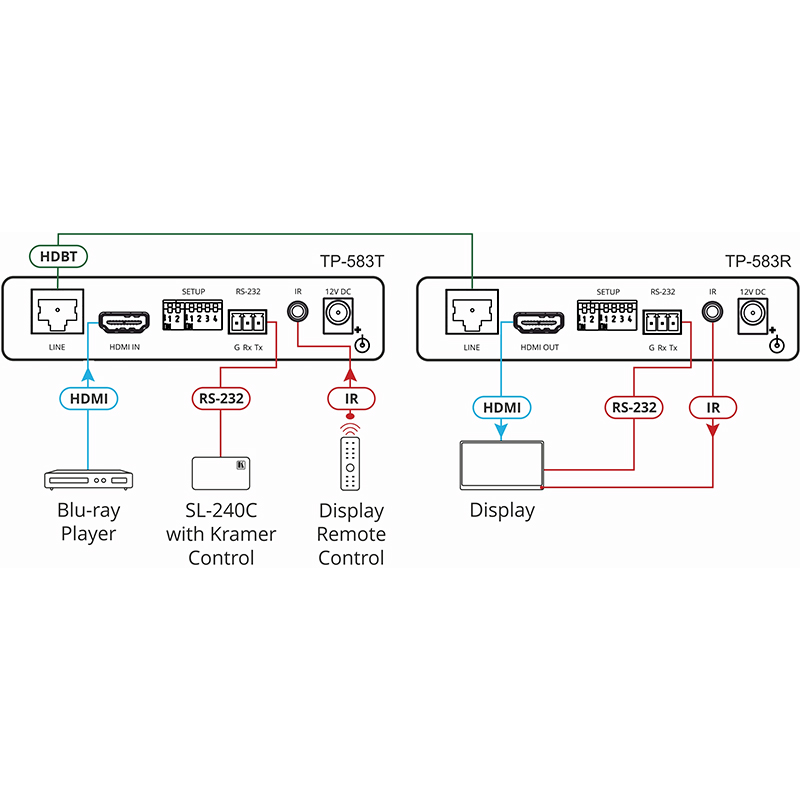

TP−583T is a high−performance, long−reach HDBaseT transmitter for 4K HDR HDMI, RS−232 and IR signals over twisted pair. TP−583T converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 70m (230ft) over Kramer copper cables at up to 4K@60Hz (4:4:4) video resolutions. It is compatible with standard HDBaseT−compliant extenders at 4K@30Hz and HD video resolutions.
Features
- High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. It employs low–level video compression technology that delivers visually lossless performance for 4K@60 (4:4:4) and HDR signals with near–zero latency. This high–quality compressed signal is extended to almost double the extension reach of the uncompressed signal.
- Future–proof, Standard Extender — TP–583T is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends either compressed or uncompressed HDBaseT signal, by auto–adapting to the compression capabilities of its connected extender. This enables it to be connected to any market–available HDBaseT–compliant extension product.
- Intelligent Compression Handling — Automatically detects a standard HDBaseT extender without compression and disables the compression to extend the signal in compliance with the detected extender.
- HDMI Signal Extension — HDR HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
- Cost–Effective Maintenance — Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection ensures lasting, field–proven deployment.

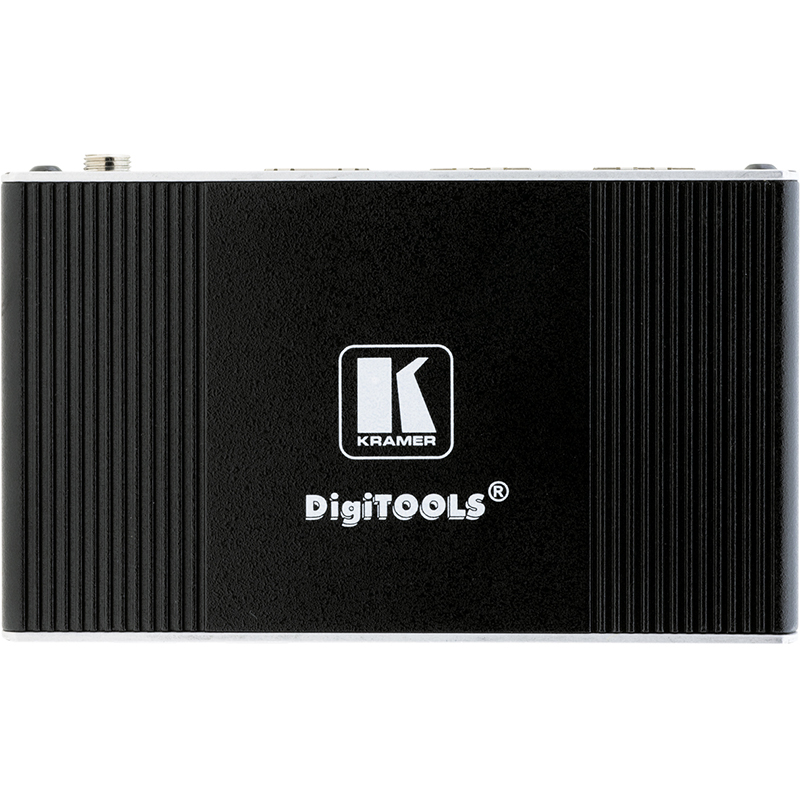

- Easy Installation — Compact DigiTOOLS® fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
50-80023090
Specifications
Product Type:
HDMI Transmitter
Maximum Operating Temperature:
+40°C
Transmission Range:
40m (4K@60Hz), 70m (4K@30Hz)
Sound Field:
Stereo
Special Features:
HD Base T 1.0 Transmitter, Bidirectional RS-232 and IR Control Extension
Applications:

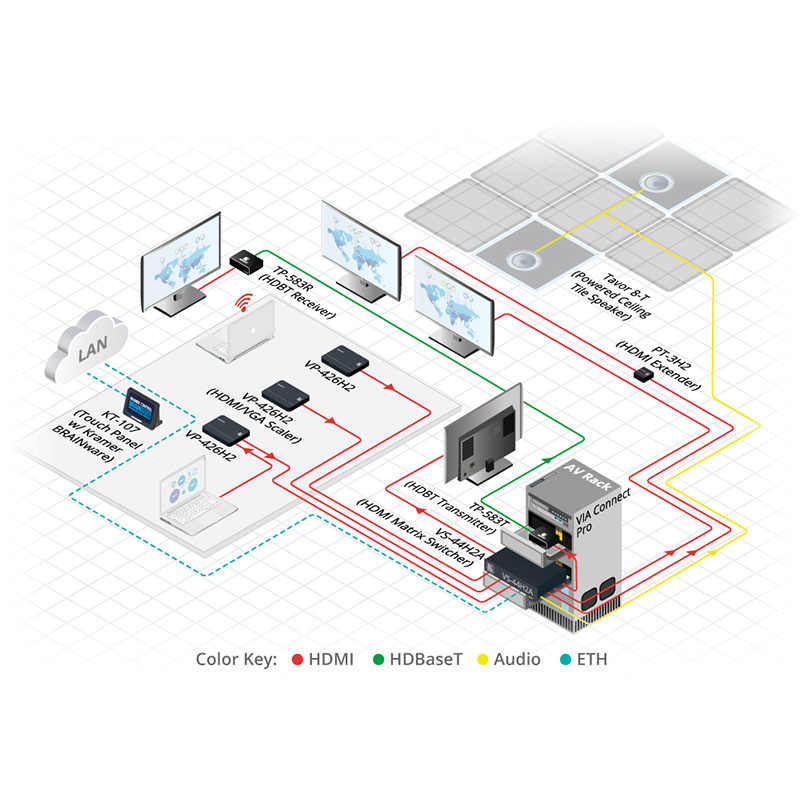

Long Distance AV Signal Extension for Multi Room/Large Dividable Auditoriums and Lecture Hall Connectivity, AV Extension in Conference Rooms/Boardrooms/Control Rooms/Hotels and Large Church Facilities
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter, Power Cord, Bracket Set
Performance
Video Format:
4096x2160pixels@60Hz (4:4:4) 24bpp, 3840x2160pixels@60Hz (4:4:4) 24bpp, 4096x2160pixels@60Hz (4:2:0), DTS-HD, 2K, 4K, 3D
Frequency Rating:
20kHz to 100kHz
Latency:
0ms

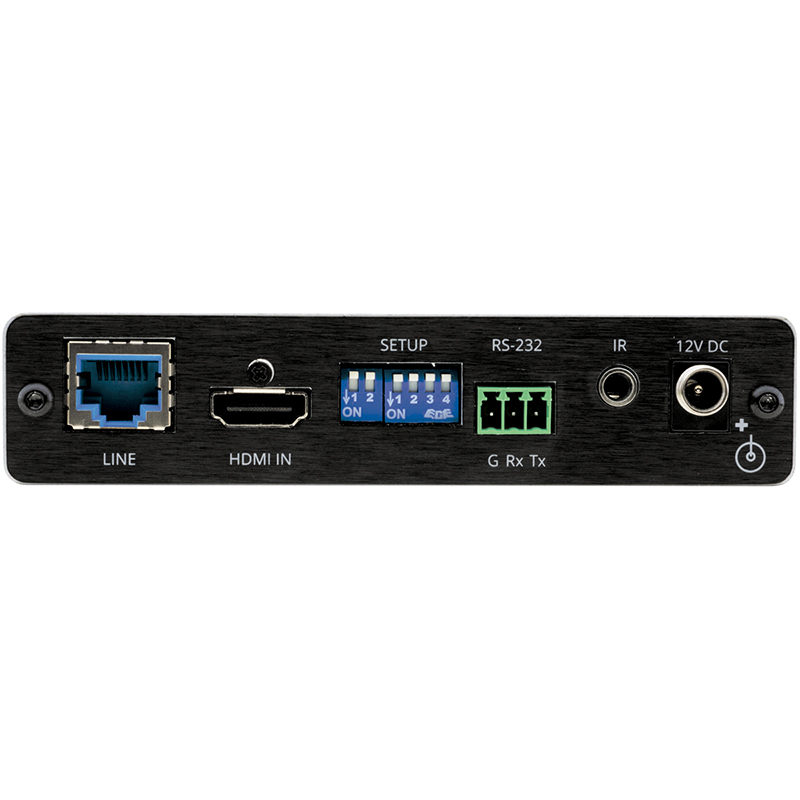

Inputs and Ports
Input Port Type:
1xHDMI: on a Female HDMI Connector
Output Port Type:
1xHDBT: on an RJ45 Connector
Interface Type:

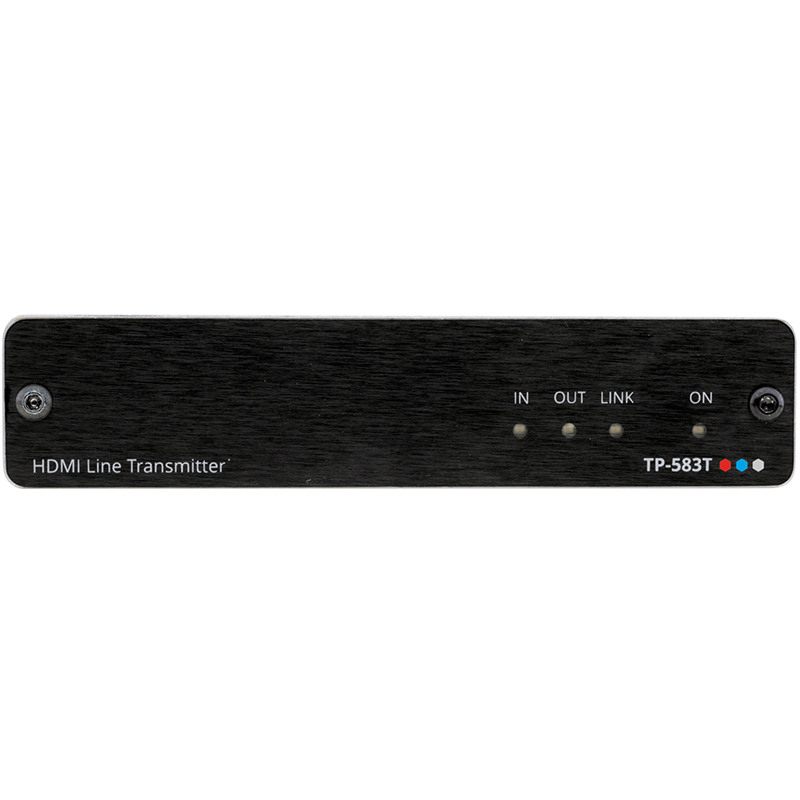

Indicator: IN/OUT, LINK and on LED, Control: DIP-Switch
Power
Current Rating:
2A (Source), 480mA (Consumption)
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.3kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
CE, ISO 9001, ISO 14001, OHSAS 18001
