TP-580CT 4K60 4:2:0 USB-C Transmitter with RS-232 & IR over Long-Reach HDBaseT
Please sign in so that we can notify you about a reply

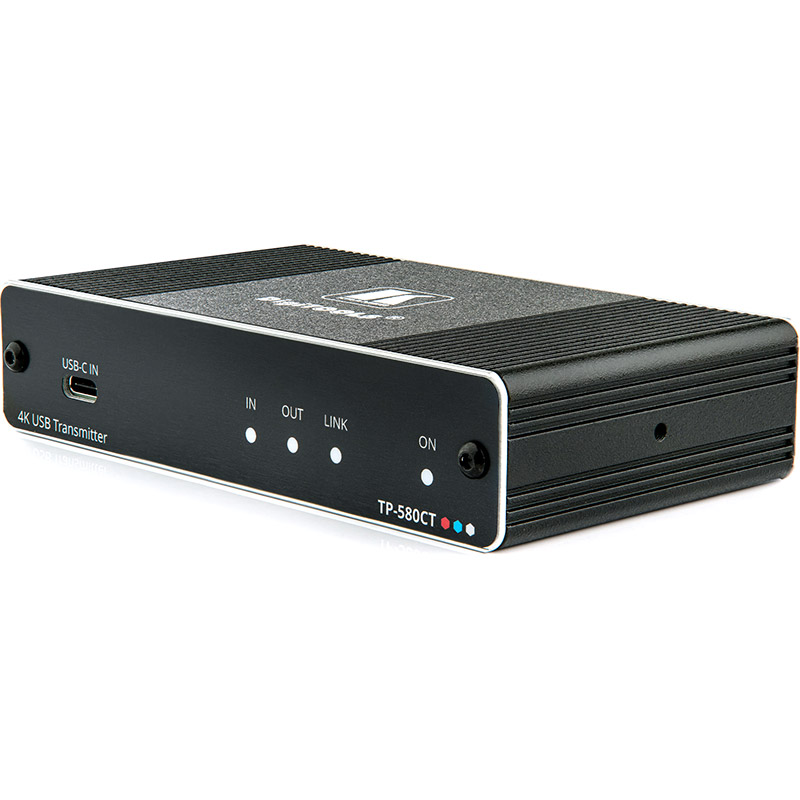

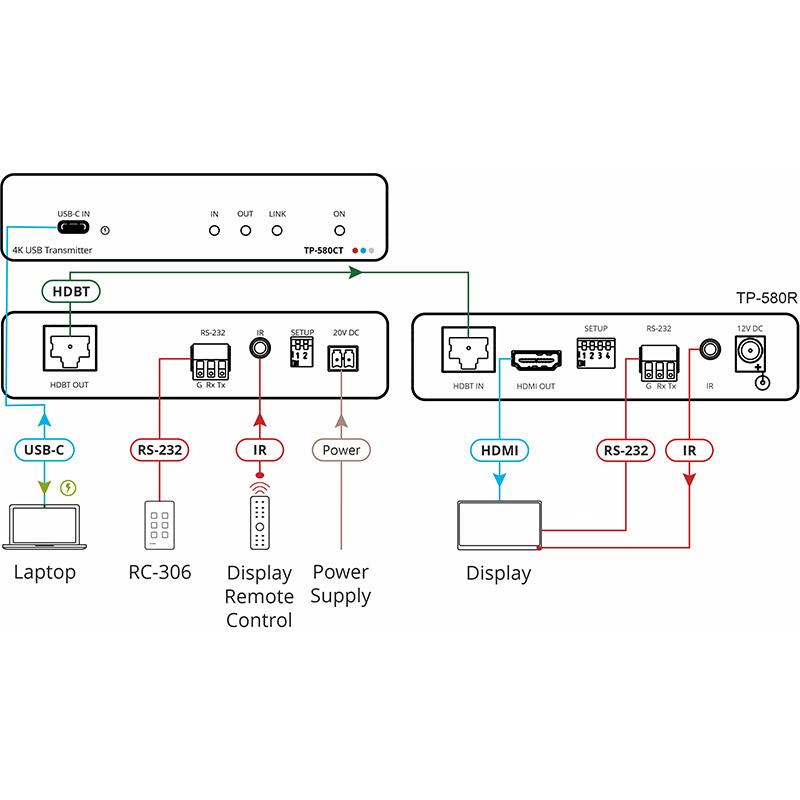

TP−580CT is a high−performance, long−reach HDBaseT transmitter for 4K@60Hz (4:2:0) USB−C video, RS−232 and IR signals over twisted pair. TP−580CT converts the USB−C input video signal, along with all other input signals, into the transmitted HDBaseT signal. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
Features
- High Performance Standard Extender - Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. TP–580CT is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
- BYOD Ease and Convenience - Connect any DP–Alt–Mode–capable USB–C device as an AV presentation source, while providing the connected device (if PD–2.0–capable) with up to 60 watts of power.
- HDMI Signal Extension - HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through between the source and the display.
- Multi–channel Audio Extension - Up to 8 HD channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Bidirectional RS–232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
- Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

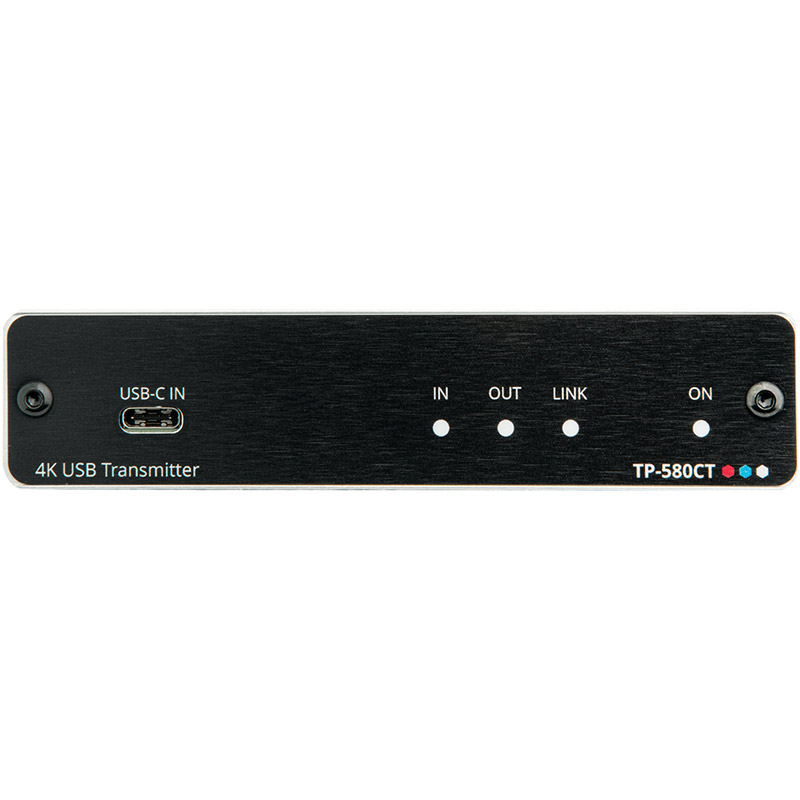

- Cost–effective Maintenance - Status LED indicators for power, input, output, and HDBaseT connection facilitate easy local maintenance and troubleshooting.

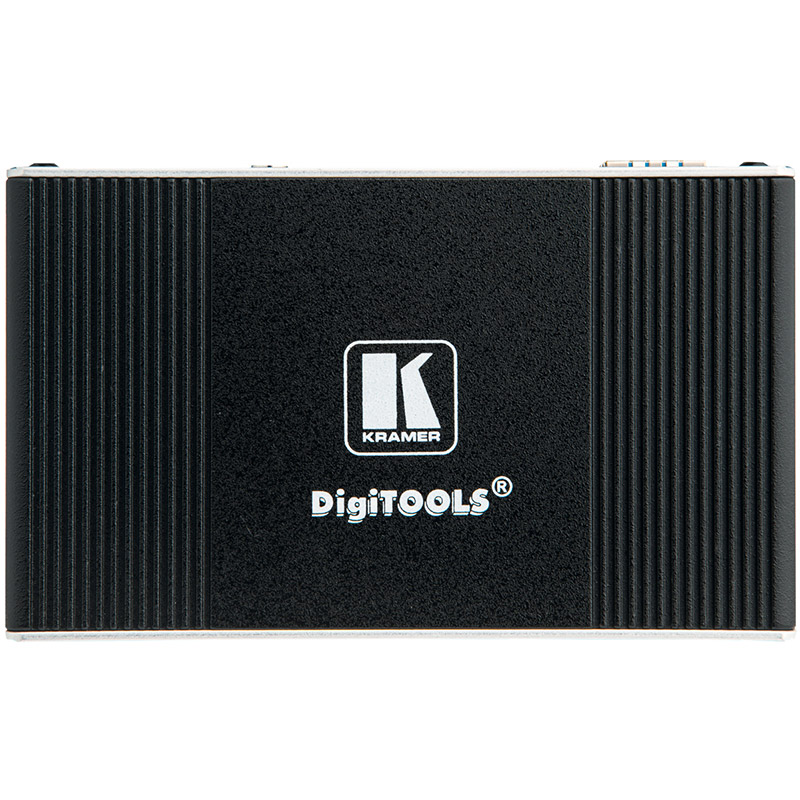

- Easy Installation - Compact DigiTOOLS® fan–less enclosure for dropped–ceiling mounting, TBUS IN–table mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
50-80574090
Product Type:
Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Transmission Range:
40m
Sound Field:
Stereo
Special Features:
USB-C Input with Up to 60w Charging, Cost-Effective Maintenance-Status LED Indicator for Power, Input, Output, and HD Base T Connection Facilitate Easy Local Maintenance and Troubleshooting, Easy Installation-Compact Digitools® Fan-Less Enclosure for Dro
Power Rating:
60W (Charging)
Applications:
BYOD Presentations in Corporate Meeting Rooms and Education Classroom, Long Distance AV Signal Extension in Conference Rooms/Boardrooms/Classroom and Lecturing Facilities
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter, Cord
Performance
Video Format:
4K UHD@60Hz (4:2:0) 24bpp, DTS-HD, 2K, 4K, 3D
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:
1xDP Alt Mode and PD 3.0 USB-C: on a USB Type C Connector

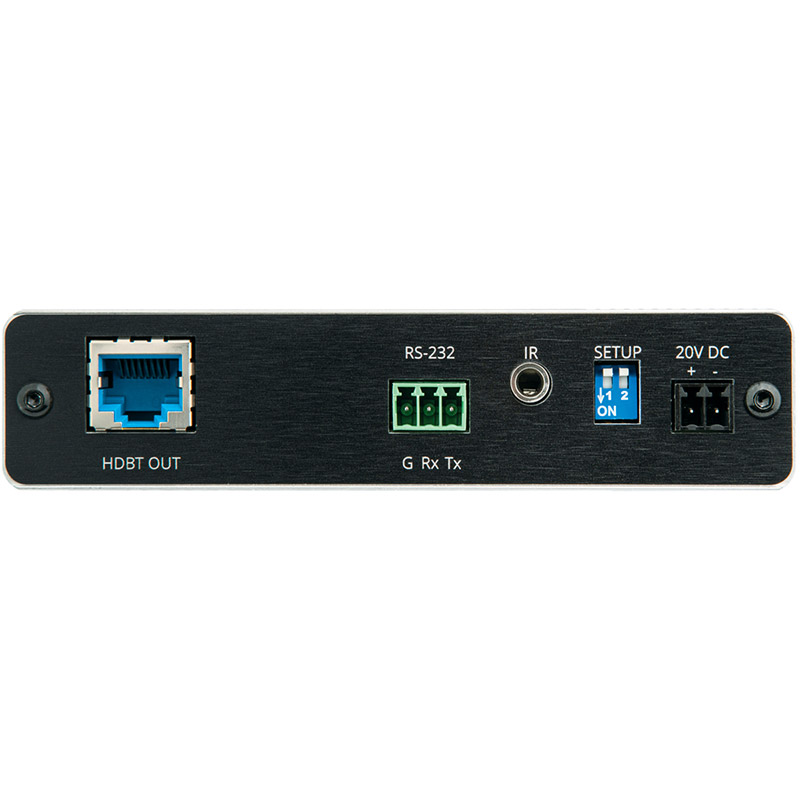

Output Port Type:
1xHDBT: on an RJ45 Connector
Interface Type:
Bidirectional RS-232 Extension-Serial Interface, Bidirectional Infrared Extension-IR Interface
Power
Current Rating:
6A (Source), 3.3mA (Consumption)
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
Other
Voltage Rating:
20V DC
Voltage Rating:
20V DC
Standards Met:
CE, ISO 9001 Certified
