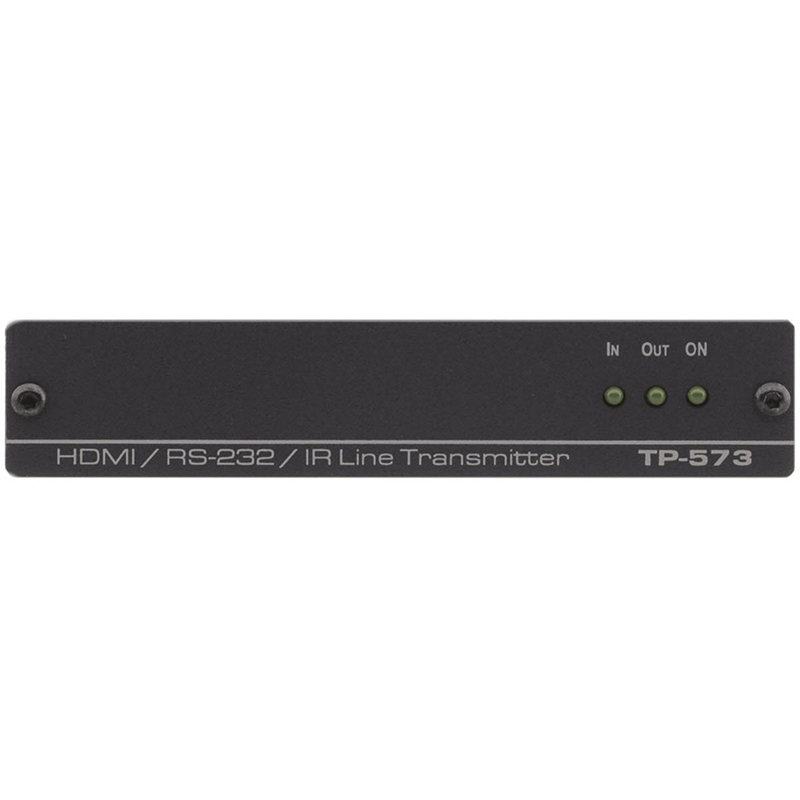

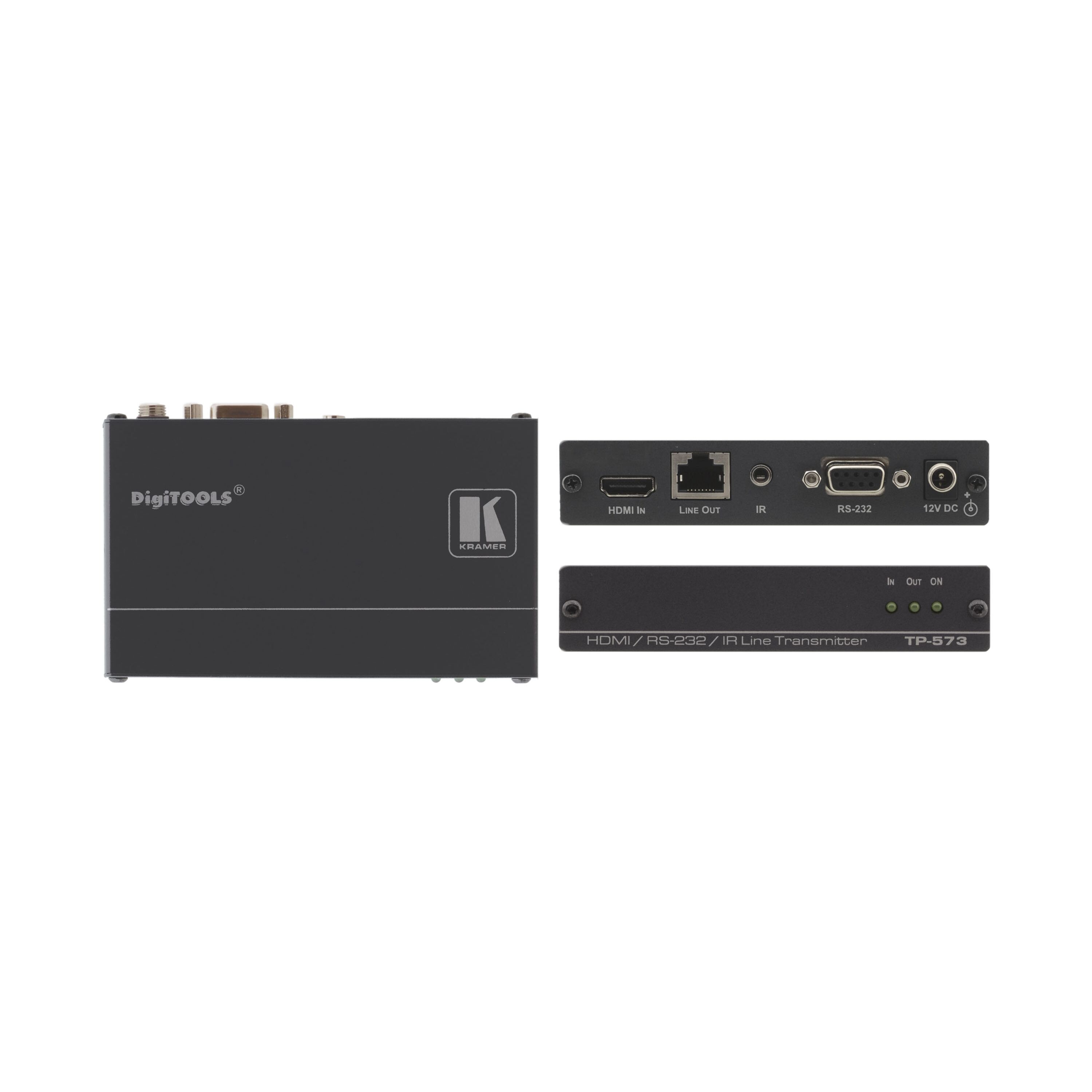

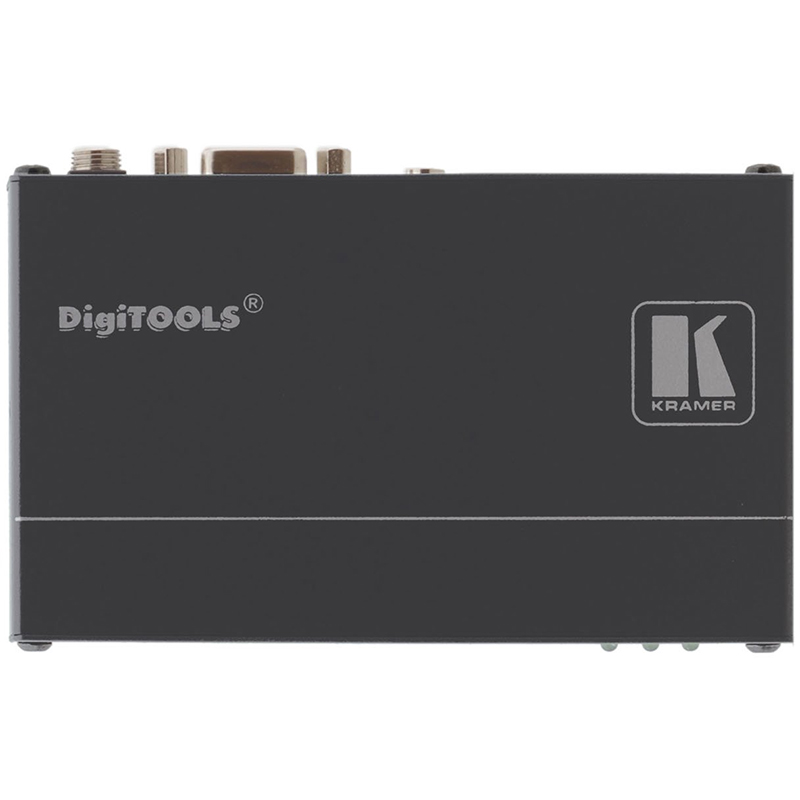

TP-573 HDMI, Bidirectional RS-232 & IR over Twisted Pair Transmitter
Please sign in so that we can notify you about a reply

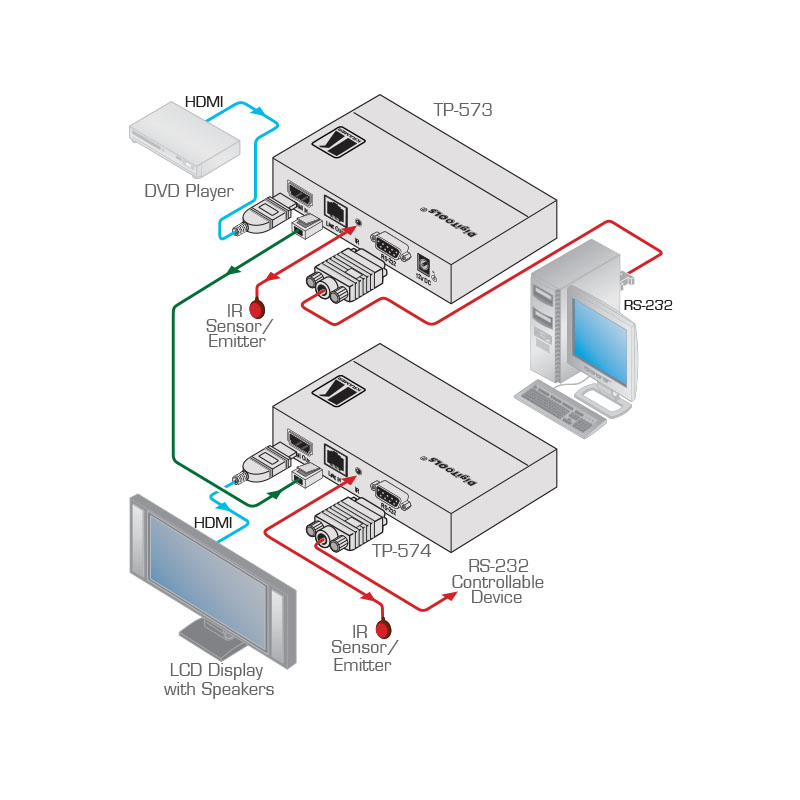

The TP−573 is a DGKat™ twisted pair transmitter for HDMI, bidirectional RS−232 and infrared signals. The TP−573 converts the input signals to a twisted pair signal and the TP−574 converts it back to HDMI, RS−232 and infrared signals.
Features
- Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
- HDMI Support — x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD.
- 3D Pass–Through.
- EDID PassThru — Passes EDID signals between the source and display.
- Bidirectional RS–232 & IR Interface. — 38400 max baud rate.
- System Range — Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables.
Note: Transmission range depends on the signal resolution, graphics card and display used. If using third–party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly. - Power Connect System™ — A single connection to the transmitter powers both units.
- Compact DigiTOOLS® — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-70911090
Product Type:
HDMI HDCP 2.2 Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Transmission Range:
90m (1080i@60Hz), 70m (1080pixels@60Hz)
Special Features:
Requires Shielded Twisted Pair Cable, Bidirectional RS-232 and IR
Applications:
Home Theatre/Presentation and Multimedia, Rental and Staging
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
12V DC Power Supply
Performance
Video Format:
1080i@60Hz
Frequency Rating:
60Hz
Inputs and Ports

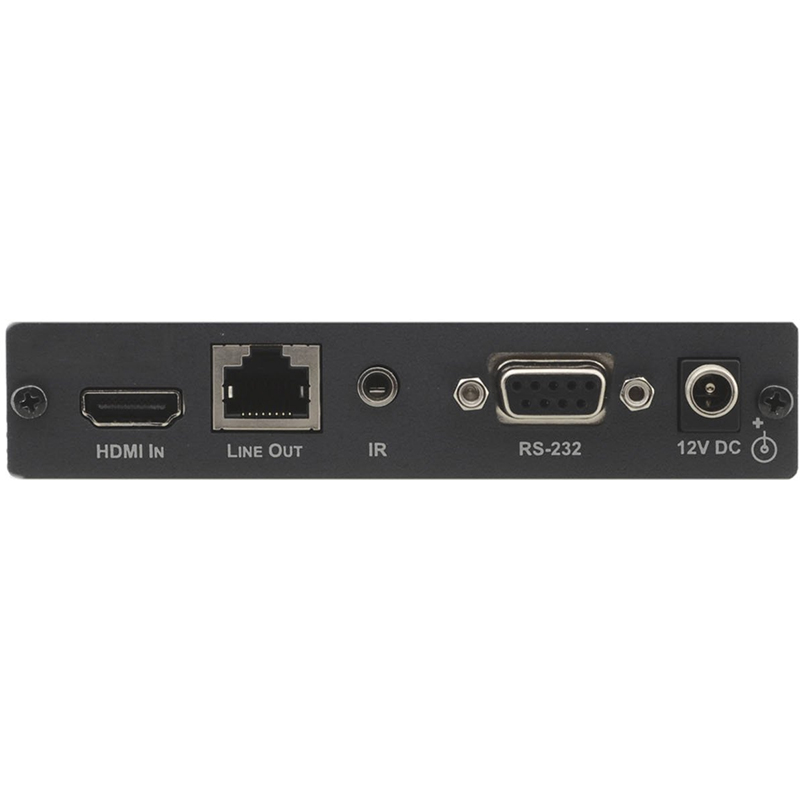

Input Port Type:
1xHDMI Connector, 1xBidirectional IR Port on a 3.5mm Mini Jack, 1xBidirectional RS-232 Port on a 9-Pin D-Sub Connector
Output Port Type:
1xCAT5 OUT on an RJ45 Connector
Interface Type:
Bidirectional RS-232 and IR Interface-38400 Max Baud Rate
Power
Current Rating:
510mA
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
CE, ISO 9001, ISO 14001, ISO 45001, ISO 27001
