TP-121XL Computer Graphics Video & Stereo Audio over Twisted Pair Transmitter
Please sign in so that we can notify you about a reply

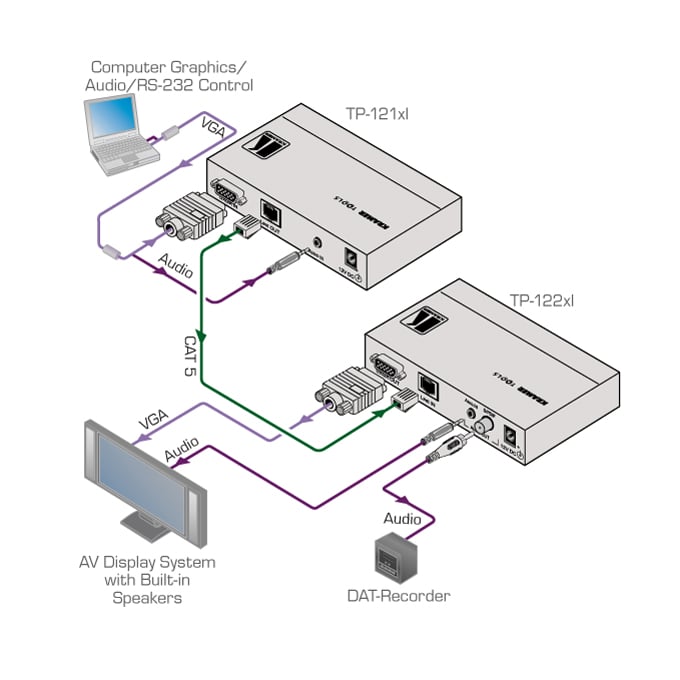

The TP−121xl is a high−performance twisted pair transmitter for computer graphics video and unbalanced stereo audio signals. It converts the input signals to a twisted pair signal and transmits them over CAT 5 cable to a compatible receiver.
Features
- Max. Resolution - WUXGA & 1080p.
- HDTV Compatible.
- EDID Capture - Captures EDID from the display or uses pre–programmed default EDID.
- Interference Protection - Increased level of protection against noise, spikes and interference in adverse environments.
- System Range - More than 250m (more than 820ft).
- Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
- Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 60m (200ft) of each other.
Brand:
Kramer
Part number:
50-80177190
Specifications
Product Type:
Transmitter
Maximum Operating Temperature:
+40°C
Transmission Range:
250m
Sound Field:
Stereo
Special Features:
Interference Protection-Increased Level of Protection Against Noise, Spikes and Interferencein Adverse Environments, Power Connect™ System-a Single Connection to the Transmitter or the Receiver Powers Both Units When the Devices are Within 60m (200ft) o
Applications:
Presentation and Multimedia, Long Range Graphics Distribution for Schools/Hospitals/Security/and Stores
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply
Performance
Video Format:
1080pixels
Frequency Rating:
20Hz to 20KHz
Reference Audio Input Level:
84dB
Inputs and Ports
Input Port Type:
1xVGA on a 15-Pin HD Connector, 1xUnbalanced Stereo Audio on a 3.5mm Mini Jack
Output Port Type:
1xTwisted Pair on an RJ45 Connector
Power
Current Rating:
190mA
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
CE, ISO 9001 Certified
