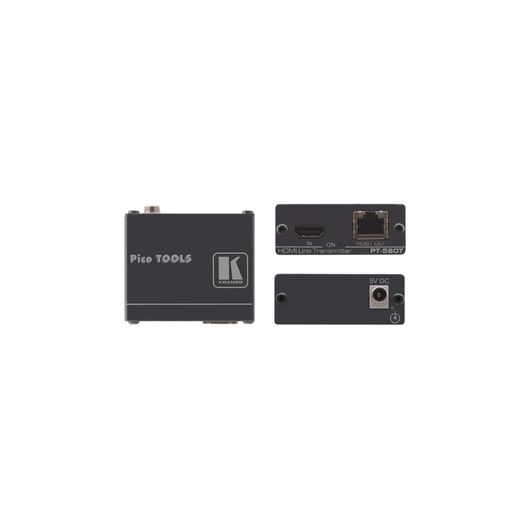

PT-580T HDMI over Twisted Pair HDBaseT Transmitter
Please sign in so that we can notify you about a reply
PT−580T is a compact high−performance, long−reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI signal over twisted pair. PT−580T converts the input signal into the transmitted HDBaseT signal. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
Features
- High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. PT–580T is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
- HDMI Signal Extension — HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Cost–effective Maintenance — Status LED indicator facilitates easy local maintenance and troubleshooting.
- Easy Installation — Compact Pico TOOLS™ fan–less enclosure for dropped–ceiling or discreet mounting, or side–by–side mounting of 4 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
50-80231090
Specifications
Product Type:
Compact Transmitter
Maximum Operating Temperature:
+40°C
Number of Channels:
32
Sound Field:
Stereo
Special Features:
HD Base T 1.0 Transmitter, Long-Reach-up to 40m (130ft) at 4K@60Hz (4:2:0), Video Resolution-up to 4K@60Hz (4:2:0) 24bpp
Applications:
Long Distance AV Signal Extension for Multi Room/Large Dividable Auditoriums and Lecture Hall Connectivity, AV Extension in Conference Rooms/Boardrooms/Control Rooms/Hotels and Large Church Facilities
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply Unit
Performance
Video Format:
Up to 4K UHD@60Hz (4:2:0) 24bpp, DTS-HD, 2K, 4K
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:
1xHDMI on an HDMI Connector
Output Port Type:
1xHDBT on an RJ45 Female Connector
Power
Current Rating:
570mA
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE, ISO 9001 Certified
