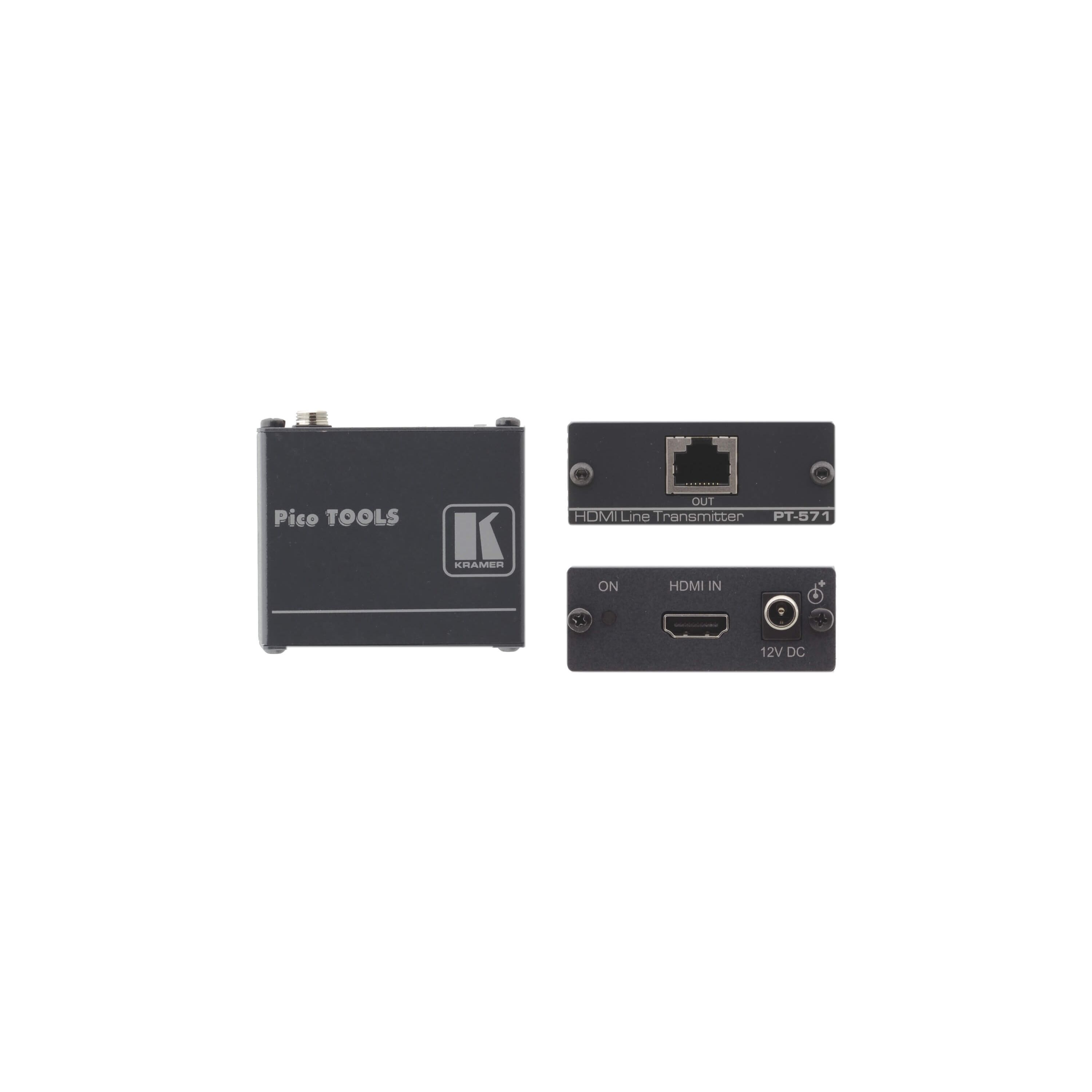

PT-571 HDMI over Twisted Pair Transmitter
Please sign in so that we can notify you about a reply

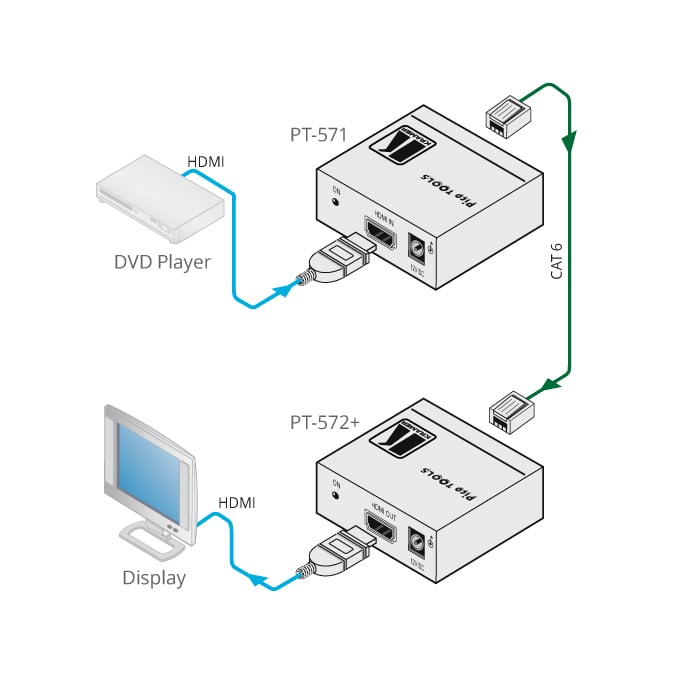

The PT−571 is a DGKat™ twisted pair transmitter for HDMI signals. The PT−571 converts an HDMI signal to a single twisted pair signal and the PT−572+ converts the twisted pair signal back to an HDMI signal.
Features
- Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
- HDMI Support.
- 3D Pass–Through.
- System Range — Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables.
Note: Transmission range depends on the signal resolution, graphics card and display used. If using third–party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly. - EDID PassThru — Passes EDID signals between the source and display.
- Status LED — Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached.
- Power Connect™ System — A single connection to the transmitter powers the receiver.
- Ultra–Compact Pico TOOLS™ — 4 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-70832090
Product Type:
Compact Transmitter
Specifications
Transmission Range:
90m
Special Features:
Requires Shielded Twisted Pair Cable, Max. Data Rate-4.95Gbps (1.65Gbps Per Graphic Channel)
Applications:
Board/Conference and Training Rooms, Presentation Systems, Signal Distribution and Home Theatre
Includes:
Power Supply
Performance
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:
1xHDMI Connector
Output Port Type:
1xDGKat Twisted Pair RJ45 Connector
Power
Current Rating:
250mA
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
8.7cm
Weight:
0.1kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
CE, ISO 9001 Certified
