PT-110XL Computer Graphics Video over Twisted Pair Transmitter with EDID
Please sign in so that we can notify you about a reply

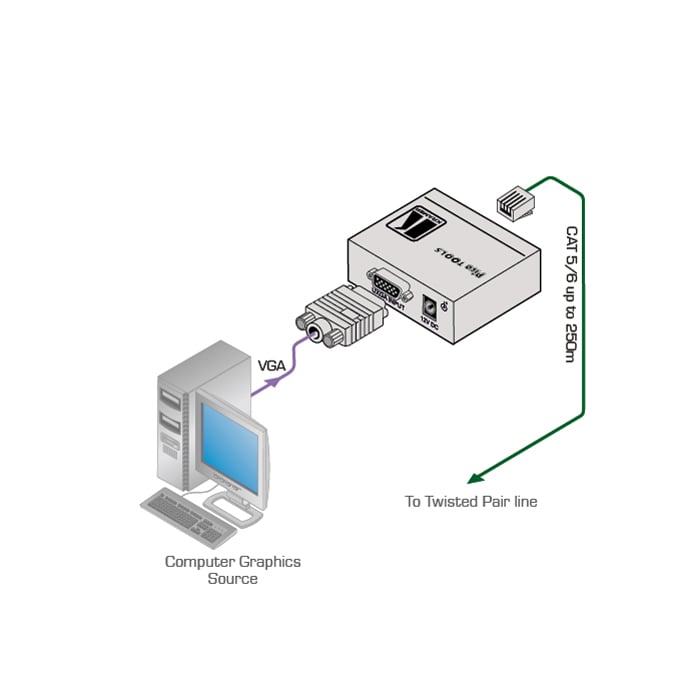

The PT−110xl is an extended range UXGA line transmitter that receives a UXGA signal and transmits it over a CAT 5/6 cable to the PT−120xl or TP−120 receiver.
Features
- Resolution - Up to WUXGA & 1080p.
- HDTV Compatible.
- Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
- Extended Transmission Range - Up to 250m (820ft) when used with Kramer’s twisted pair xl receivers (such as PT–120xl, TP–122xl or TP–126xl).
- EDID Capture - Copies and stores the EDID from a display device.
- Increased Noise Immunity - An increased level of protection against noise, spikes and interference in adverse environments.
Brand:
Kramer
Part number:
50-70321090
Specifications
Product Type:
Computer Graphics Video Over Twisted Pair Transmitter
Maximum Operating Temperature:
+40°C
Transmission Range:
250m
Special Features:
Max Resolution-WUXGA and 1080pixels, Edid Capture
Applications:
Presentation and Multimedia, Long-Range Graphics Distribution for Schools/Hospitals/Security/and Stores
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply
Performance
Video Format:
1080pixels
Inputs and Ports
Input Port Type:
1xVGA/UxGA on a 15-Pin HD Connector
Output Port Type:
1xTwisted Pair on an RJ45 Connector
Power
Current Rating:
285mA
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
CE, ISO 9001, ISO 14001, OHSAS 18001
