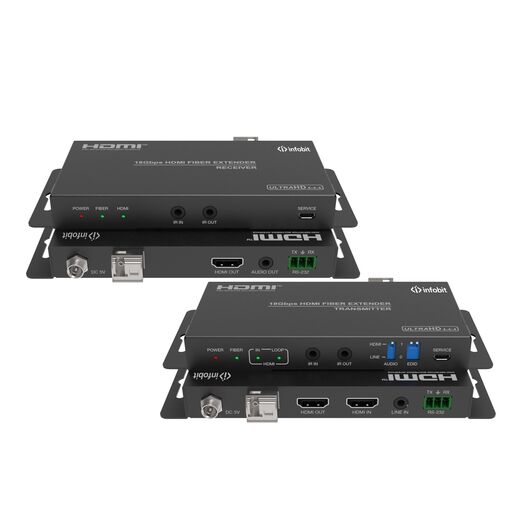

iTrans F1000-T HDMI 4K60 over Optical Fiber Transmitter (Tx), with Audio Extracting, 10KM over Single-mode
Please sign in so that we can notify you about a reply
This HDMI Extender can extend HDMI signal up to 33000 feet/10 km (over single-mode fiber cable) . It supports video resolution up to 4K2K@60Hz 4:4:4. Transmitter supports loop output, audio embedding and EDID management function. Receiver supports audio extracting function. In addition, the extender supports bidirectional IR control and RS-232 signal pass-through. It can allow you to easily control the display device on the signal source side or control the signal source device on the display side when using this extender
Features- HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Video resolution up to 4k2k@50/60Hz 4:4:4
- HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Support 3D and HDR format video, does not support CEC control
- Transmission distance up to 33000 feet/10 km (over single-mode fiber cable)
- Support bidirectional IR control, RS-232 pass-through and EDID management for simple and convenient control
- Transmitter supports loop output (sharing local HD video and audio) and audio embedding function
- Receiver supports audio extracting output function
- Compact design for easy and flexible installation
Brand:
Infobit
Product Type:
Optical Fiber Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Transmission Range:
10km
Special Features:
Compact Design for Easy and Flexible Installation
Power Rating:
3.8W
Chassis Material:
Metal
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Performance
Video Format:
4k2k@60Hz
Frequency Rating:
20 to 60kHz
Inputs and Ports
Input Port Type:
1xHDMI, 1xLINE, 1xIR, 1xRS-232, 1xSERVICE
Output Port Type:
1xHDMI, 1xOptical Fiber, 1xIR
Interface Type:
RS232
Power
Current Rating:
1A
Dimensions
Width:
13.4cm
Depth:
6.8cm
Height:
1.8cm
Weight:
280g
Other
Voltage Rating:
100 to 240V AC (Input), 5V DC (Output)
Standards Met:
US/EU Standards, CE/FCC/UL Certified, RoHs Complaint
