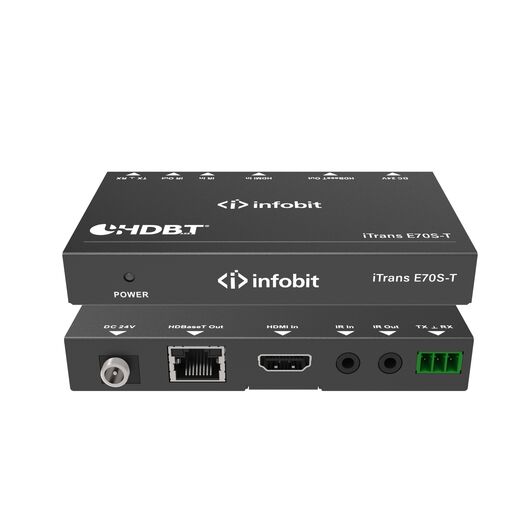

iTrans E70S-T HDBaseT extender (Tx only), HDMI 10.2Gbps, 70m for 1080p, 40m for 4K/30Hz
Please sign in so that we can notify you about a reply
The cat5e/cat6 HDMI Extender is a tool which can extend your HDMI signal over 230fts/ 70meters to a compatible display. It is designed to convert HDMI signal to standard HD BaseT signal which can be transmitted by LAN cable. It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 230fts outside, also you can control the Sink in the Source side which is 230fts outside by using the HDMI Extender
Features- POC (Power Over Cable) function is supported, either TX or RX is powered by24V@1A power supply, the another does not need power supply from the DC jack. POC Power consumption is less than 10W
- Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission
- UTP termination follows the standard of direct interconnection method
- Support display resolutions up to 4K x 2K@30Hz
- Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
- Transfer Bidirectional Infrared control signal together with the HDMI signal
- Transfer Bidirectional RS232 control signal together with the HDMI signal
Brand:
Infobit
Product Type:
HDBaseT Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Transmission Range:
70m
Special Features:
Support Display Resolutions up to 4Kx2K@30Hz
Power Rating:
20W
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Performance
Video Format:
1080p@60Hz@48bit/pixels, 1080p@120Hz@24bit/pixels, 3D 1080P60Hz and 4K2K@30Hz@24bit, 4K2K@30Hz
Inputs and Ports
Input Port Type:
1xHDMI Female Port, 1xCAT6, 1xIR Tx, 1xIR Rx, 1xPhoenix
Output Port Type:
1xHDMI Female Port, 1xCAT6, 1xIR Tx, 1xIR Rx, 1xPhoenix
Interface Type:
RS232
Power
Current Rating:
1A
Dimensions
Width:
6.5cm
Depth:
11.5cm
Height:
1.7cm
Weight:
200g
Other
Voltage Rating:
24V DC
Warranty:
3 year
