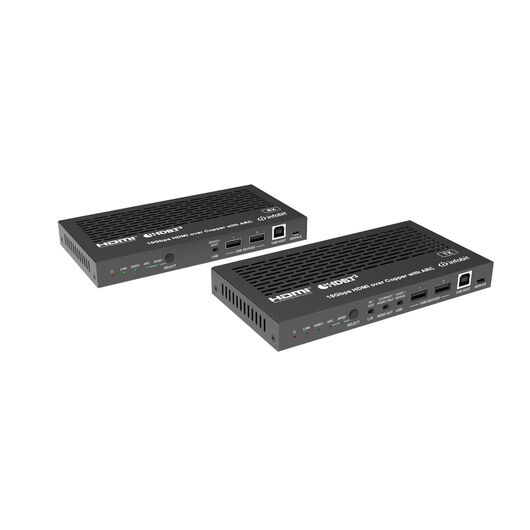

iTrans E100V3K-T HDMI 4K60 over HDBaseT Transmitter (Tx), 100m for 4K/60Hz, POC, KVM, USB
Please sign in so that we can notify you about a reply
This HDBaseT 3.0 Extender can extend uncompressed HD/UHD video andaudio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE ethernet and USB2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio embedding or de-embedding. The Receiver supports audio de-embedding. It also supports eARC/ARC from RX's HDMI output passthrough to TX's HDMI input or de-embedding to TX's HDMI audio only and SPDIF output ports, USB 2.0 (Host/Device is configurable) and bi-directional POC
Features- HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant
- Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth
- HDR, HDR10, HDR10+, Dolby Vision and HLG pass through
- LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD pass through
- Transmission distance up to 328ft/100 meters via a single CAT 6A/7 cable
- Supports eARC/ARC function (the audio is returned to the HDMI IN port, HDMI OUT(AUDIO ONLY) port and SPDIF OUT port of the transmitter.)
- Supports SPDIF audio reverse transmission
- Bi-directional IR, RS-232 and 1G Ethernet signal pass through
- Supports USB2.0 transmission, Host/Device is configurable
- Bi-directional 24V POC function
Brand:
Infobit
Product Type:
HDBaseT Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Transmission Range:
100m
Special Features:
Supports SPDIF Audio Reverse Transmission
Power Rating:
15.3W
Chassis Material:
Metal
Applications:
Home, Commercial
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Performance
Video Format:
4K@60Hz (4:4:4)
Frequency Rating:
50/60Hz
Inputs and Ports
Input Port Type:
1×HDMI
Output Port Type:
1xHDMI, 1xHDBT, 1xSPDIF, 1×L/R
Interface Type:
RS232, RJ45
Power
Current Rating:
1A
Dimensions
Width:
17cm
Depth:
10.2cm
Height:
2.2cm
Weight:
425g
Other
Voltage Rating:
100 to 240V AC (Input), 12V DC (Output)
Standards Met:
US/EU Standards, CE/FCC/UL Certified
