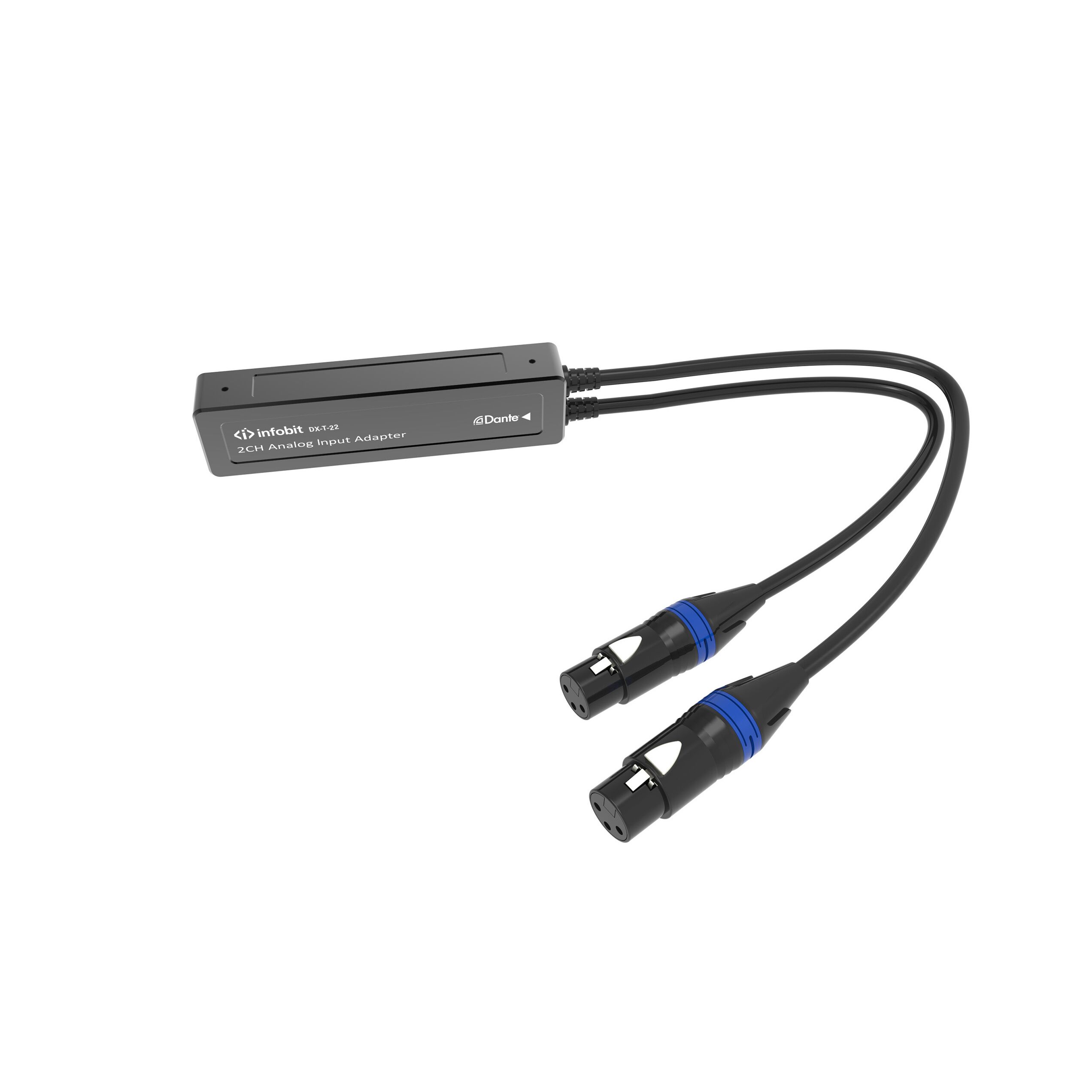

iTrans DX-T-22 Dante 2CH Analog Audio Encoder (Tx) with PoE, XLR port
Please sign in so that we can notify you about a reply
It supports 2 channels of analog signal input, transfer to Dante digital signal output
Features- Compact design, easy to use, support hot swappable
- Conversion between analog audio and Dante digital audio signals
- Built-in 2 input audio channels
- Extend audio, control, Ethernet, and power with Cat cable.
- One network cable instead of multiple analog or multi-core cables, it is economical, efficient and versatile.
- Extend uncompressed high quality audio signals with near-zero delay
- Safe and reliable transmission of high-quality two-channel audio
- Supports Dante software, which can easily expand and configure network and audio routing
- It supports PoE
Brand:
Infobit
Product Type:
XLR Transmitter
Specifications
Maximum Operating Temperature:
+50°C
Encryption:
24bit
Number of Channels:
Special Features:
Easy to Use, Support Hot Swappable
Power Rating:
2W
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Performance
Impedance:
20kΩ (Balanced), 10kΩ (Unbalanced)
Signal Level:
+18dBu, +4dBu, 0dBu, 0dBV, -10dBV
Frequency Rating:
20Hz to 20KHz
Maximum Input Sound Pressure Level:
+18dBu
Audio Dynamic Range:
>100dB
Latency:
1ms
Inputs and Ports
Input Port Type:
1xRJ45
Output Port Type:
2xXLR
Interface Type:
RJ45
Dimensions
Length:
12.5cm
Width:
3.3cm
Height:
2.8cm
Weight:
0.7kg (Gross)
Other
Standards Met:
Class 1 802.3af
