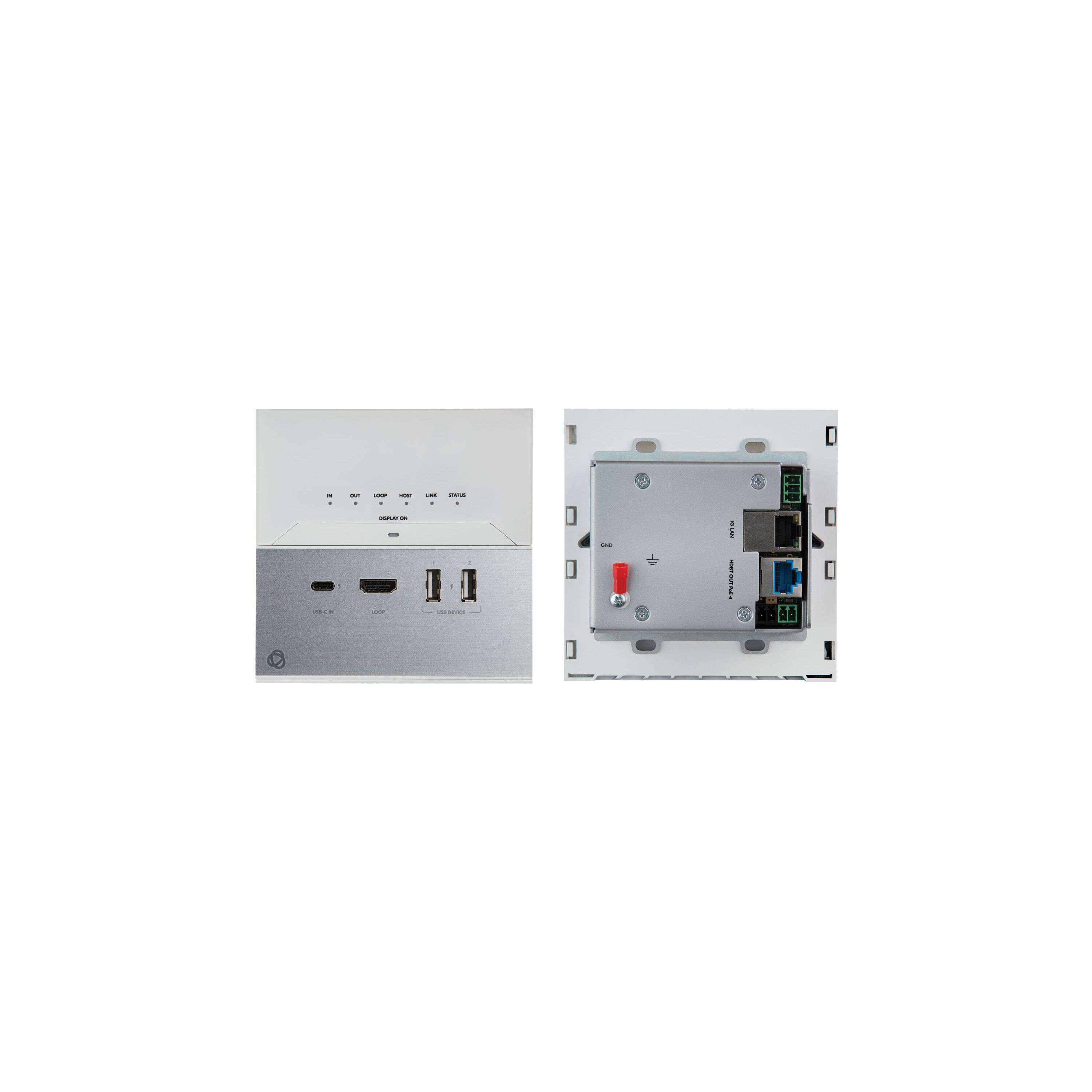

EXT3-C-WP-XR-T/EU(W) 4K60 4:4:4 USB–C Transmitter with USB, Ethernet, RS–232, & IR over Extended–Reach HDBaseT 3.0, white

Write a review
EXT3-C-WP-XR-T/EU(W)
Kramer
Log in to see price Add to wish list Add to Project

EXT3-C-WP-XR-T USB-C transmitter is a high-performance, extended-reach HDBaseT 3.0 transmitter for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS-232, and IR signals over twisted pair. The EXT3-C-WP-XR-T transmitter converts all input signals into the transmitted HDBaseT 3.0 signal and extends it over HDBT to a compatible receiver. The EXT3-C-WP-XR-T transmitter accepts power over the copper extension cable from a PoE provider remote device.

Features

  • Neat Room Integration
  • High Performance Standard Extender
  • BYOD Ease and Convenience
  • Convenient Display Power On/Off Control
  • HDMI Signal Extension
  • HDMI Support
  • HDMI Mirroring
  • Flexible USB 2.0 Extension
  • I-EDIDPro™ Kramer Intelligent EDID Processing
  • Multi-channel Audio Transmission
  • Ethernet Extension
  • Bidirectional RS-232 Extension
  • Infrared Extension
  • Remote Powering Easy and Elegant Installation
Brand:
Kramer
Part number:
50-80594090
Product Type:
Wall-Plate Transmitter with USB
Specifications
Maximum Operating Temperature:
+40°C
Transmission Range:
90m (4Kpixels@60Hz)
Number of Channels:
32
Sound Field:
Stereo
Special Features:
Bidirectional, Remote Power
Power Rating:
19.7W, 88W, 60W
Chassis Material:
Aluminium
Applications:
Hybrid and Online Meeting, Conference Room, Boardroom, Training
Humidity:
10 to 90%
Chassis Colour:
White
Minimum Operating Temperature:
0°C
Includes:
1 Multi Signal USB-C cable, Power Adapter, Cord
Performance
Video Format:
4Kpixels@60Hz (4:4:4)
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:
2xUSB Type-A, 1xUSB Type-C
Output Port Type:
1xHDBT (RJ-45), 1xHDMI (Loop), 1xIR (2–pin Terminal Block), 1xRS-232(3–pin Terminal Block)
Interface Type:
Ethernet Interface, Bidirectional RS-232 Extension-Serial Interface, IR Interface
Power
Current Rating:
2A, 4.35A, 6A
Dimensions
Width:
15.1cm
Depth:
8cm
Height:
4cm
Weight:
0.2kg
Shipping Weight:
1.2kg
Other
Voltage Rating:
20V DC
Standards Met:
CE, RoHS, UKCA, WEEE

EXT3-C-WP-XR-T/EU(W) 1 (EXT3-C-WP-XR-T, 921 Kb) [Download]

EXT3-C-WP-XR-T/EU(W) 2 (kramer-ext3-c-wp-xr-t-qs-1.pdf, 723 Kb) [Download]

EXT3-C-WP-XR-T/EU(W) 3 (kramer-ext3-c-wp-xr-t-um_rev_3.pdf, 1,452 Kb) [Download]
