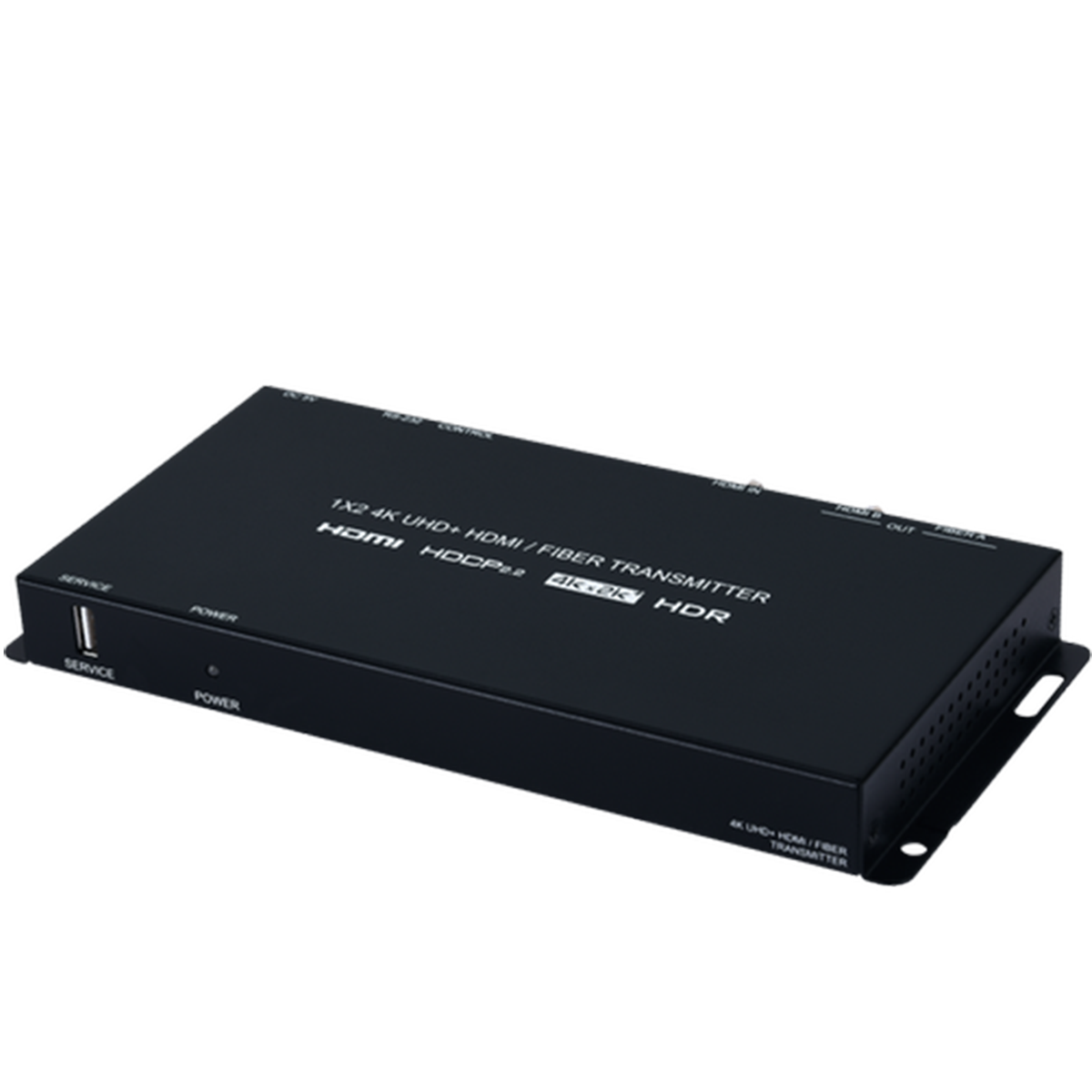

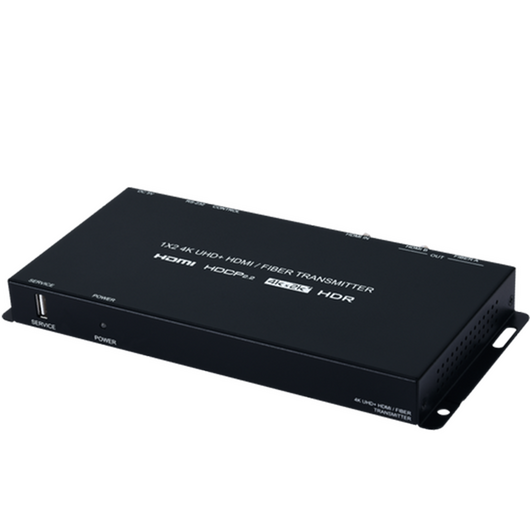

CPLUS-12FTX 4K HDR HDMI over Fiber Transmitter

Write a review
CPLUS-12FTX
Cypress Technology
Out of stock
Log in to see price Add to wish list

This HDMI over Fiber Transmitter is designed to extend your 4K UHD HDMI signal using a single segment of multi-mode optical fiber cable. Using fiber optical cable provides many advantages over traditional copper-based extension methods, including immunity to RF and magnetic interference, thinner and lighter cables, and much longer extension distances (up to 300 meters per segment). Multiple fiber Transceiver units can be placed between the Transmitter and Receiver to greatly extend the total extension distance via cascading (up to 300 additional meters per Transceiver) if the extra distance or flexibility is desired.The HDMI input and output of this unit supports resolutions up to 4K@60Hz (4:4:4, 8-bit), 10/12-bit HDR, 16-bit Deep Color up to 1080p@60Hz, HD audio formats and other features defined by the HDMI 2.0 specification. The HDMI and Fiber outputs of this unit are mirrored, however HDMI sources with bandwidth higher than 10.2Gbps are automatically chroma and/or bitdepth subsampled for transmission over the fiber output. Six pre-defined internal EDIDs, two external EDID selections and a User uploaded EDID are available for EDID management. The unit provides intuitive front.

Features

  • HDMI with 3D & 4K@60Hz with HDR support
  • DVI 1.0 compliant with the use of an HDMI-DVI adaptor
  • HDCP 2.2 and 1.x compliant
  • 1 HDMI (18Gbps) input
  • Mirrored HDMI (18Gbps) and fiber (10.2Gbps, LC pair, multimode) outputs
  • Supports UHD resolutions up to 4K@60Hz (4:4:4, 8-bit
  • Supports 16-bit Deep Color up to 1080p@60Hz
  • HDMI sources with bandwidth higher than 10.2Gbps are automatically chroma and/or bit-depth subsampled for transmission over the fiber output
  • Supports pass-through of audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
  • Comprehensive EDID management support including 6 pre-defined internal EDIDs, 2 external EDIDs, and 1 User uploaded EDID
  • Compatible with the 3×2 HDMI and Fiber Matrix Transceiver (optional)
  • Fiber transmission distances of up to 300 meters
  • Supports control via front panel, WebGUI, Telnet, and RS-232
Brand:
Cypress Technology
Specifications
Product Type:
Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
16bits
Transmission Range:
300m
Special Features:
DVI 1.0 Compliant with the Use of an HDMI-DVI Adaptor, 1 HDMI (18Gbps) Input, Mirrored HDMI (18Gbps) and Fibre (10.2Gbps, Lc Pair, Multimode) Output, Supports Pass-Through of Audio Formats, Compatible with the 3x2 HDMI and Fibre Matrix Transceiver, Suppor
Power Rating:
7.19W
Chassis Material:
Metal
Applications:
Entertainment Rooms and Home Theatres, ShowRooms and Demo Rooms, Lecture Hall Presentations, Public Commercial Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
6 Pre-Defined Internal Edids, 2 External Edids, 1 User Uploaded Edid
Performance
Video Format:
1080pixels, 4K
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:
1xHDMI
Output Port Type:
1xHDMI, 1xFibre (Paired LC)
Interface Type:
CLI Type
Power
Current Rating:
2.6A
Dimensions
Width:
23.15cm
Depth:
11.7cm
Height:
2.5cm
Weight:
670g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
