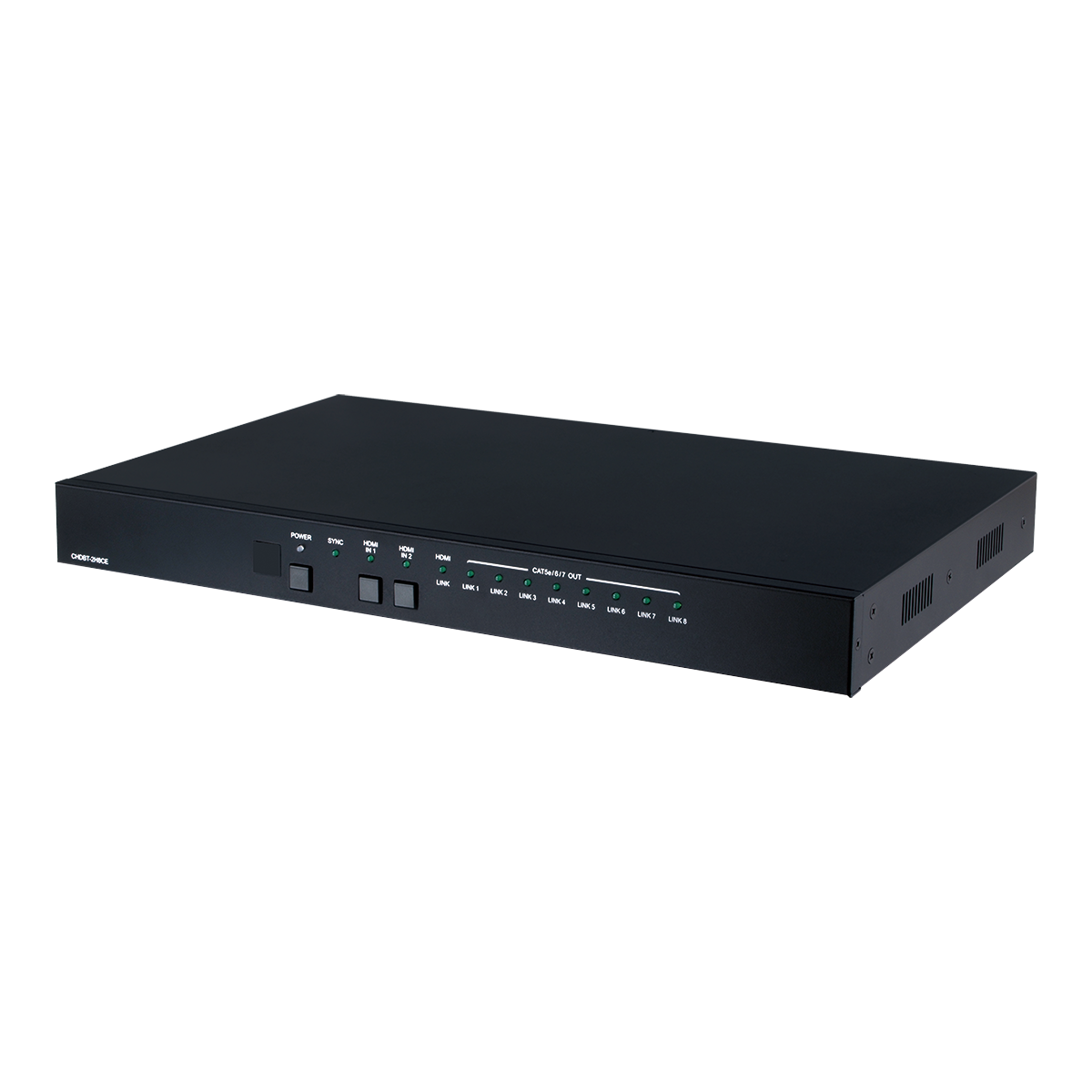

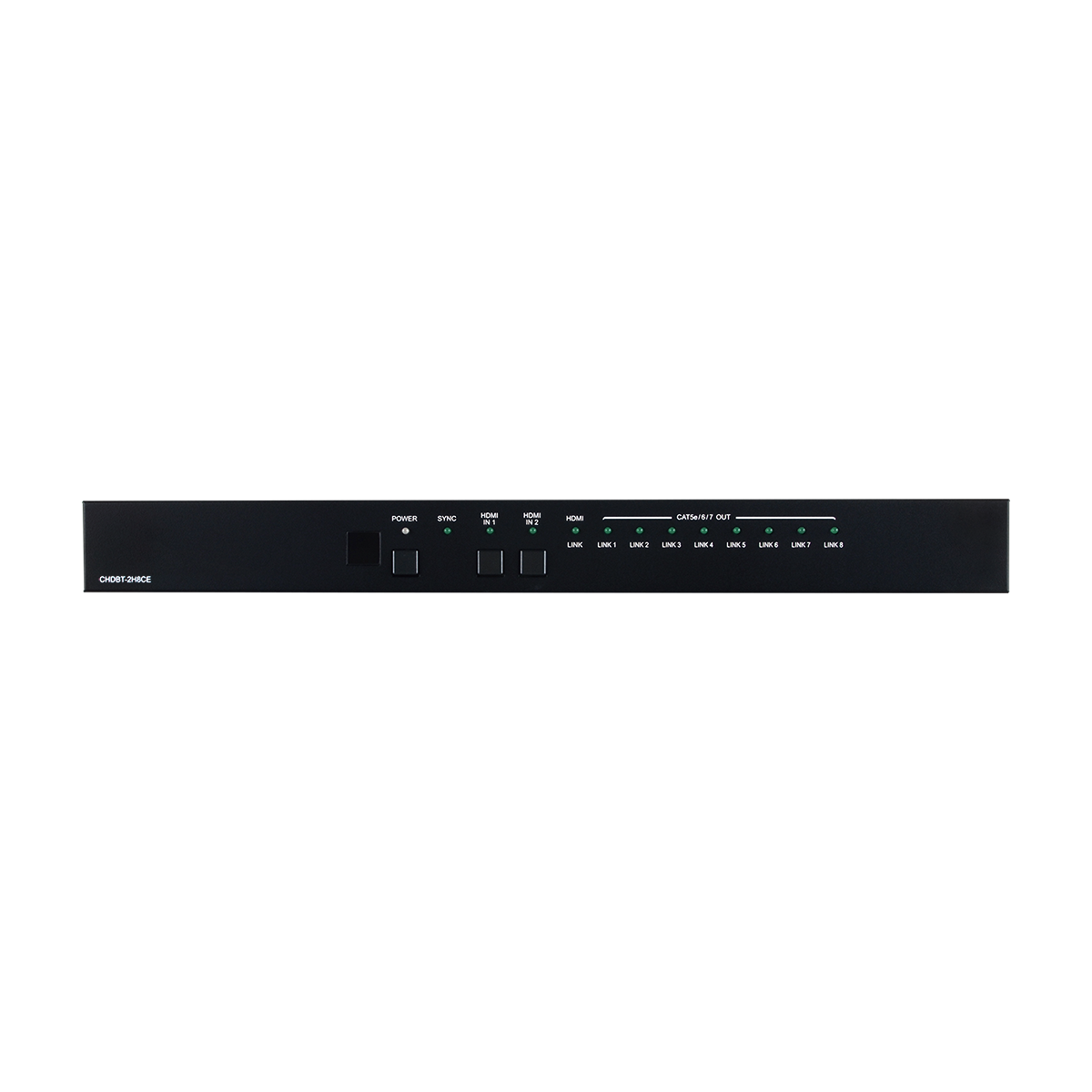

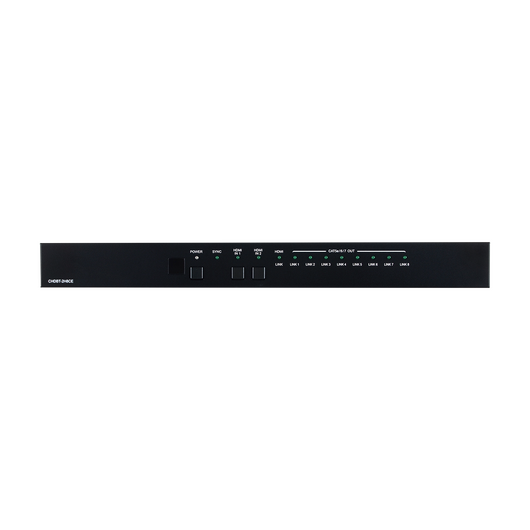

CHDBT-2H8CE Ethernet Transmitter, 100m Range, USB to PC
Please sign in so that we can notify you about a reply
The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 4Kx2K timing, 3D and multi-channel digital audio formats to one HDTV and eight HDBaseT outputs. The HDMI can be connected to HDMI display for instant nearby display and the HDBaseT can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 100 meters. Further, a total of 100Mbps Ethernet transmission rate allows all connected device to share the Ethernet service and the PoC function free the power shortage issue from the Receiver end.
Features- The HDMI and CAT5e/6/7 outputs are playing the same source simultaneously
- Supports up to 4096x2160@60Hz YUV 4:2:0 8bit
- Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz sample rate)
- Supports distances up to 100 meters through CAT5e/6/7 cables
- Supports Ethernet transmission rate up to 100Mbps
Brand:
Cypress Technology
Specifications
Product Type:
Ethernet Transmitter
Maximum Operating Temperature:
40°C
Encryption:
8-Bit
Transmission Range:
100m
Special Features:
Supports up to 4096x2160@60Hz YUV 4:2:0 8bit, Supports LPCM 7.1CH, Bit Stream, HD Bit Stream transmission (32-192kHz Sample Rate), Supports Distances up to 100 Meters Through CAT5e/6/7 Cables, Can Select Standard or TV EDID
Power Rating:
110W
Chassis Material:
Metal
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Includes:
(1) IR Receiver, (1) IR Blaster, (1) Remote Control, 24V DC Power Adaptor, Power Cord, Operation Manual
Performance
Video Format:
Up to 1080Pixel@60Hz
Inputs and Ports
Input Port Type:
2xHDMI (Type-A)
Output Port Type:

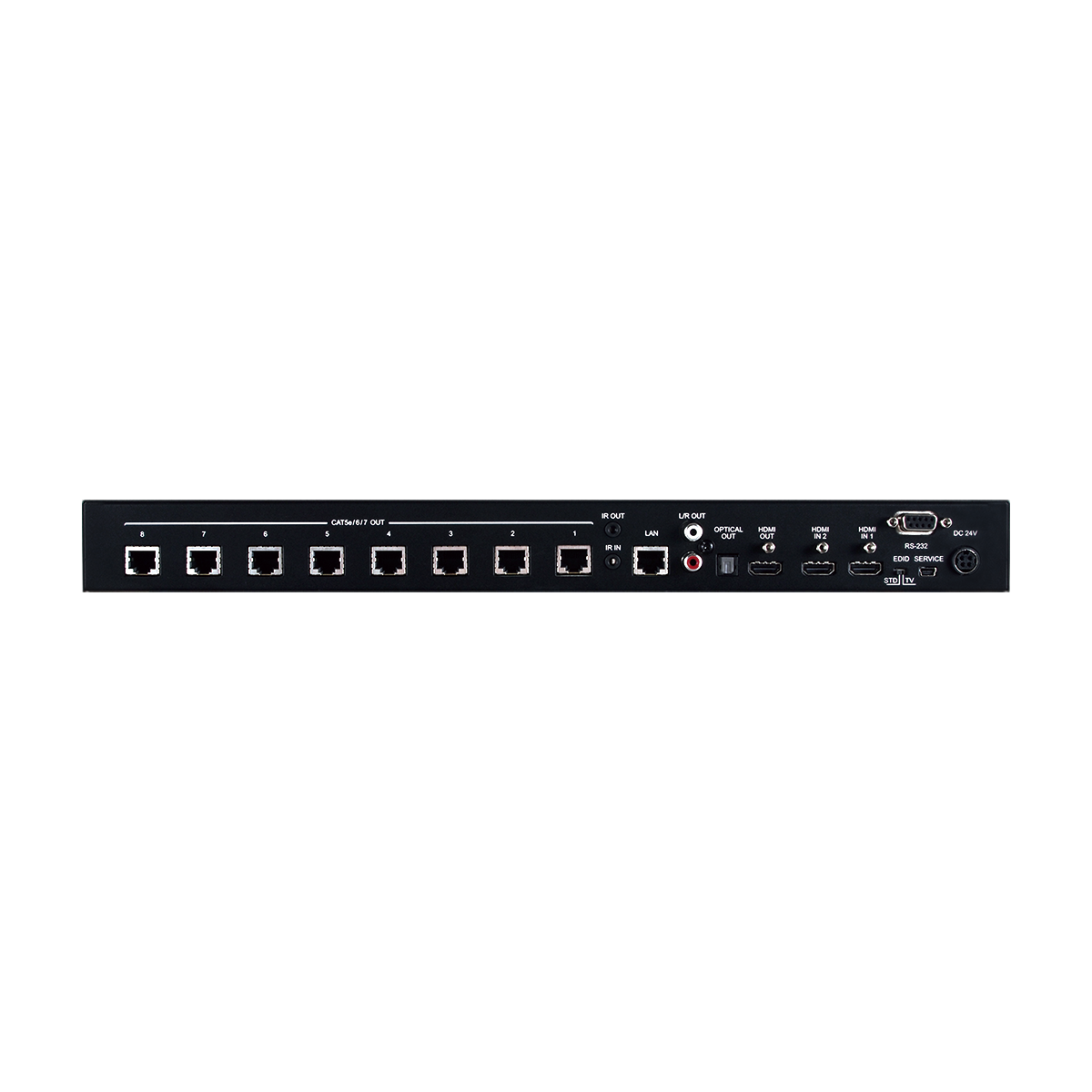

1xHDMI (Type-A), 8xHDBaseT, 1xL/R OUT (2xRCA), 1xOptical OUT (TOSLINK)
Interface Type:
USB to PC
Power
Current Rating:
6.25A
Dimensions
Width:
43.6cm
Depth:
25.6cm
Height:
4.8cm
Weight:
3114g
Other
Voltage Rating:
24V DC
Standards Met:
US, EU, CE, FCC, UL
