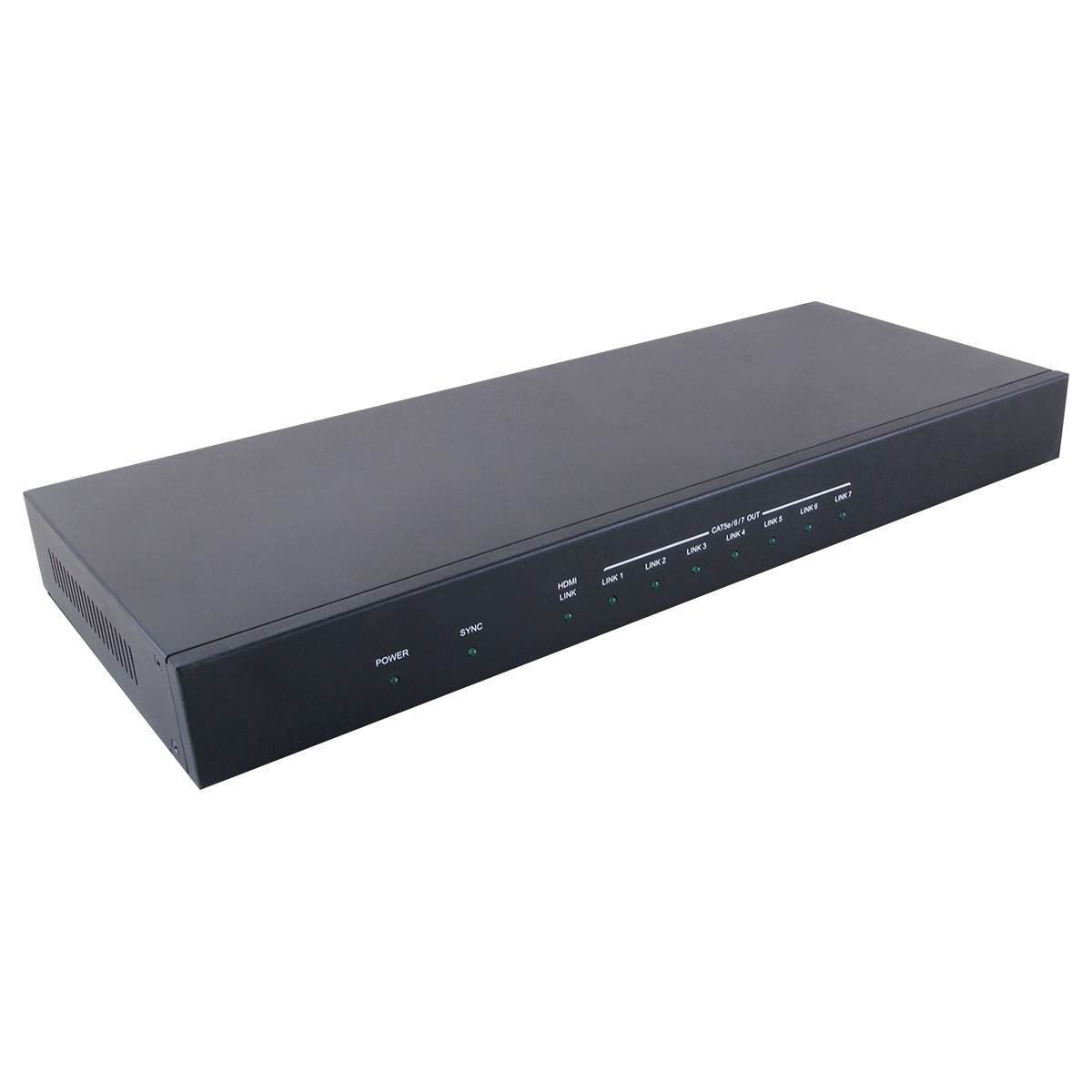

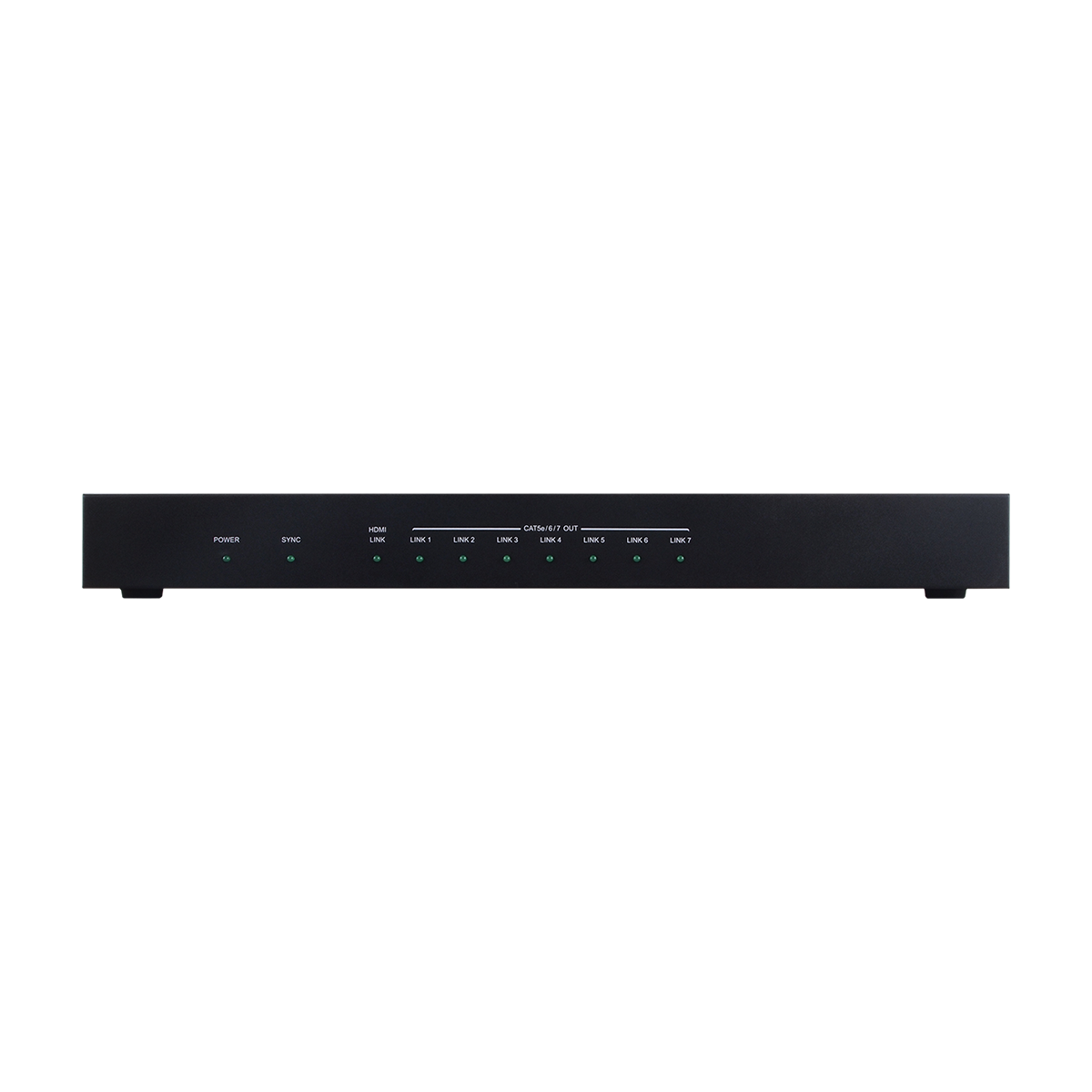

CHDBT-1H7CE 1 by 8 HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter
Please sign in so that we can notify you about a reply

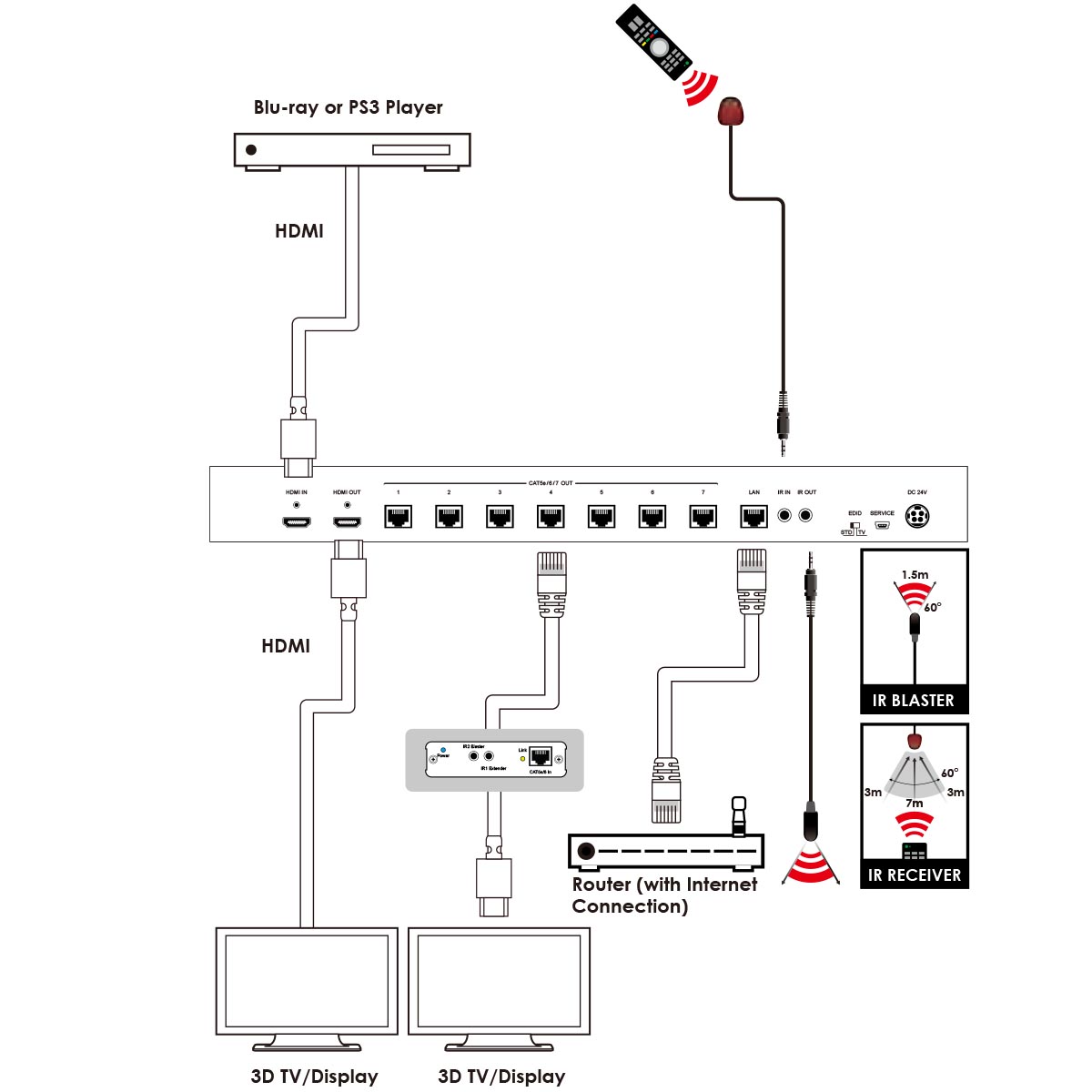

The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 4K@60 4:2:0 timing, 3D and 7.1 channel digital audio formats to one HDTV and seven HDBaseT outputs. The HDMI can be connected to HDMI display mirrored output as local monitoring and the HDBaseT can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 100 meters. Further, a total of 100Mbps Ethernet transmission rate allows all connected device to share the Ethernet service and the POC function free the power shortage issue from the Receiver end.
Features
- HDMI and HDBaseT outputting mirrored content
- Supports data rate up to 10.2 Gbps
- Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz sample rate)
- Supports distances up to 100 meters through CAT5e/6/7 cables
- Supports Ethernet transmission rate up to 100Mbps
- EDID selection between internal EDID or EDID form output monitor
- Support 3D signal content with 3D equipped output monitor
- Supports 24V POC with capable Receiver units
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDMI and CAT5e/6/7 Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
8bits
Transmission Range:
100m
Sound Field:
Stereo
Special Features:
Data Rate Up to 10.2Gbps, LPCM 7.1ch, Bitstream, HD Bitstream Transmission, Ethernet Transmission Rate Up to 100Mbps, Edid Selection between Internal Edid or Edid Form Output Monitor, 3D Signal Content with 3D Equipped Output Monitor
Power Rating:
85W
Chassis Color:
Black
Chassis Material:
Steel
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Format:
4K@60Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0
Frequency Rating:
30kHz to 50kHz
Inputs and Ports

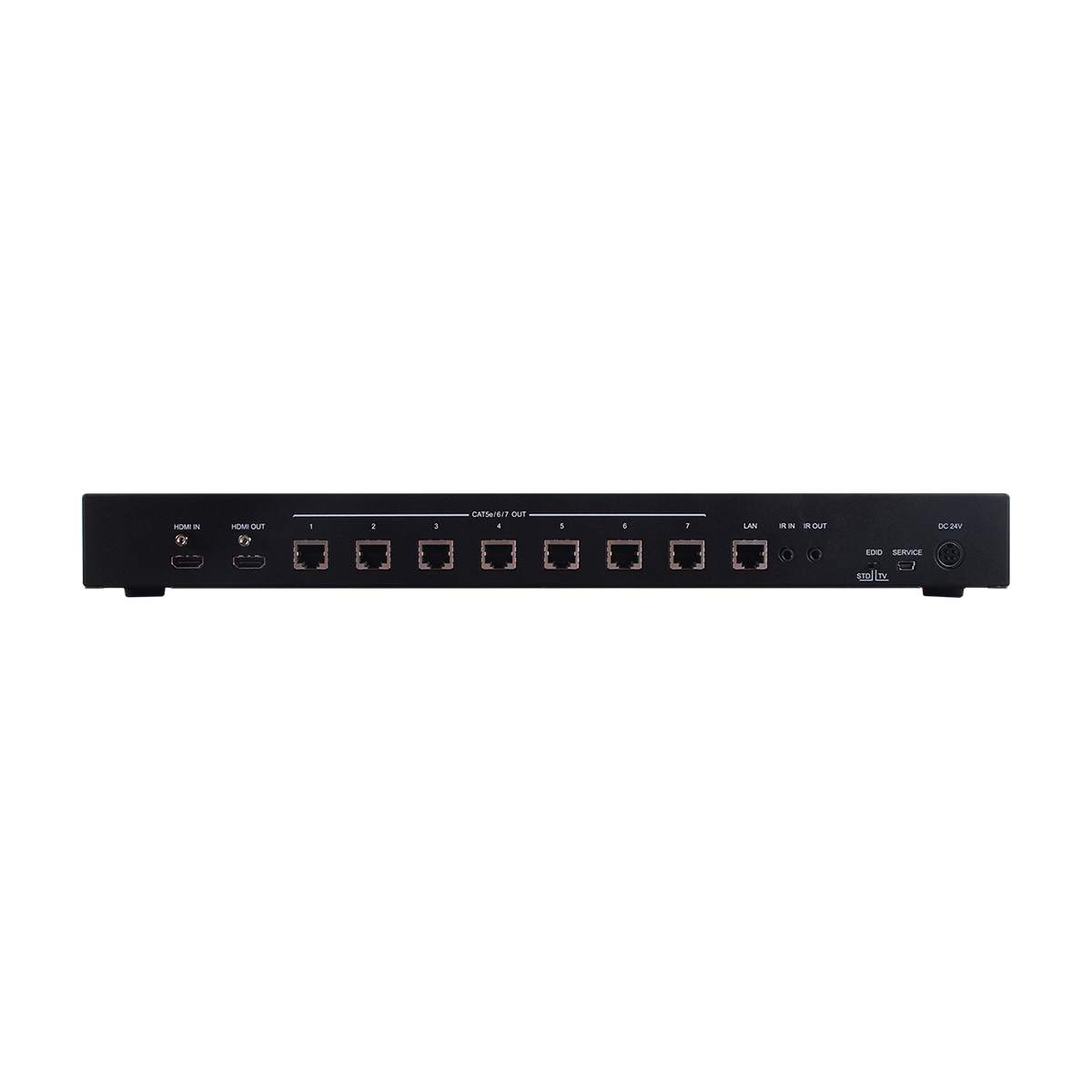

Input Port Type:
1xHDMI-Type A
Output Port Type:
7xHDBaseT (RJ45), 1xHDMI
Interface Type:
Mini-USB to PC
Power
Current Rating:
6.25A
Dimensions
Width:
43.2cm
Depth:
17.9cm
Height:
4.9cm
Weight:
2140g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
