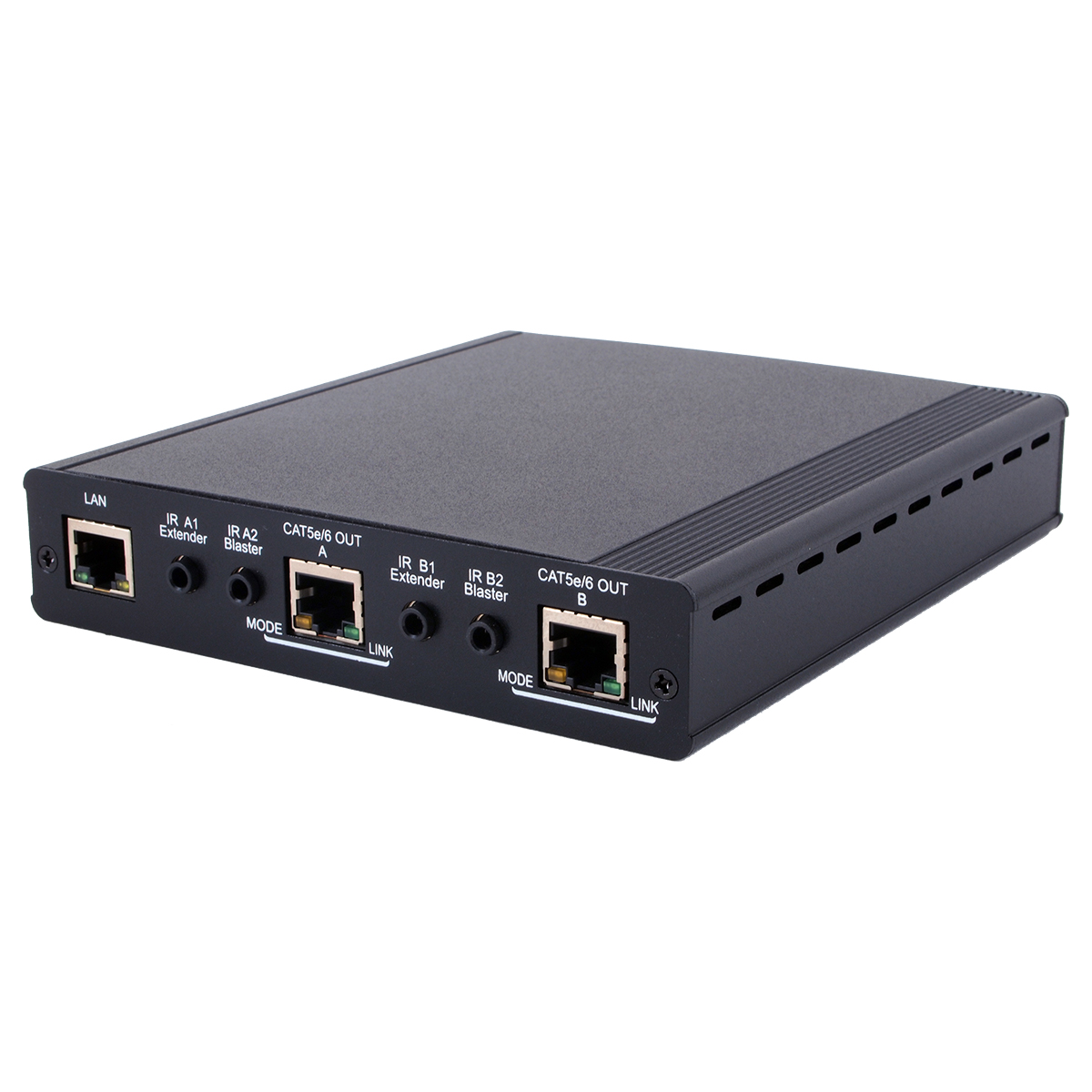

CHDBT-1H2CE 1 by 3 HDMI to HDMI & CAT5e/6/7 with LAN/IR/ RS-232 Transmitter
Please sign in so that we can notify you about a reply

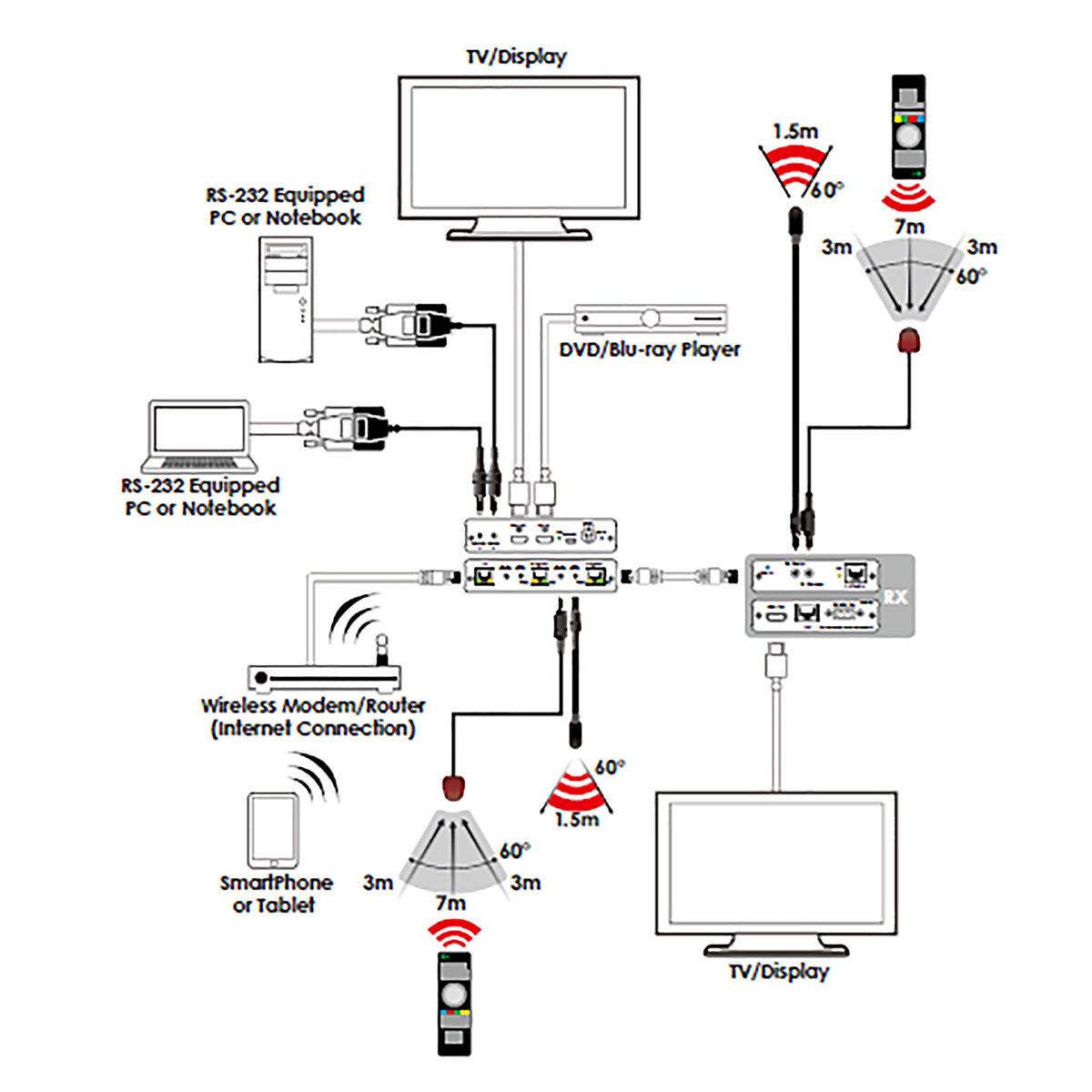

The HDMI over HDMI & CAT5e/6/7 Transmitter can supports resolutions up to 4Kx2K timing, 3D and multichannel digital audio formats such as LPCM 7.1CH, Bitstream, HD Bitstream from Hi-Def sources to one HDTV and CAT5e/6/7 outputs. This Transmitter has the ability to provide you with 1 HDMI and 2 HDBaseT outputs where the HDMI can be connected to HDMI display for instant display or cascading with another Transmitter and the HDBaseT can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 100 meters.
Features
- The HDMI and HDBaseT output are playing the same source simultaneously
- Supports up to 4096x2160@60Hz YUV 4:2:0 8bit
- Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz Fs sample rate)
- Supports distances up to 100 meters through CAT5e/6/7 cables
- Supports PoC (Power over Cable) with capable Receiver units
Brand:
Cypress Technology
Product Type:
HDMI to HDMI and CAT5e/6/7 Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Encryption:
8bits
Transmission Range:
100m
Special Features:
HDMI and HD Base T Output are Playing the Same Source Simultaneously, LPCM 7.1ch, Bitstream, HD Bitstream Transmission, PoC (Power Over Cable) with Capable Receiver Units
Power Rating:
23.1W
Chassis Color:
Black
Chassis Material:
Aluminium
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Format:
4096x2160pixels@60Hz YUV 4:2:0 8bits
Frequency Rating:
60Hz
Inputs and Ports

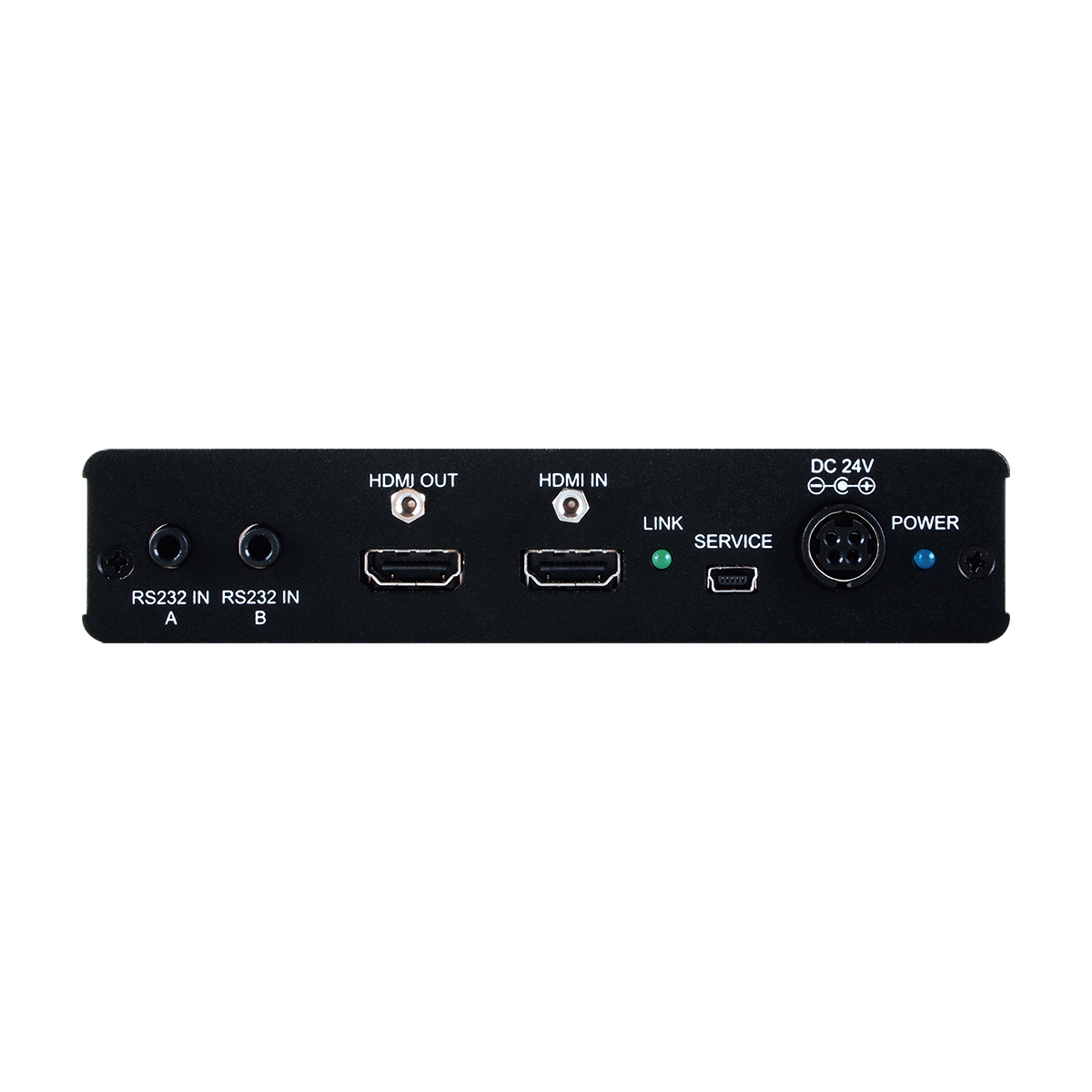

Input Port Type:
1xHDMI-Type A

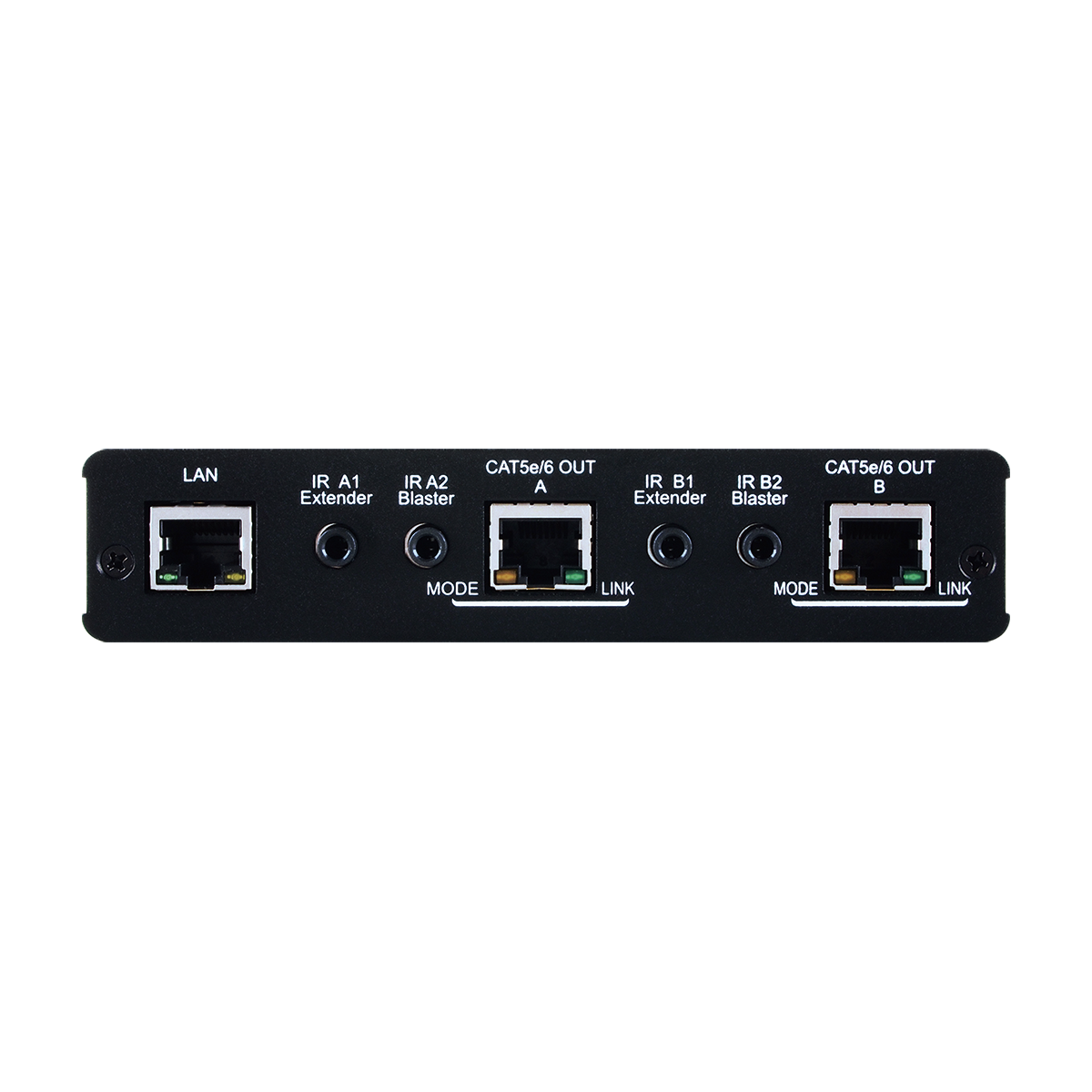

Output Port Type:
1xHDMI-Type A, 2xHDBaseT (RJ45)
Interface Type:
USB to PC
Power
Current Rating:
2.7A
Dimensions
Width:
14.5cm
Depth:
3cm
Height:
17.8cm
Weight:
528g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
