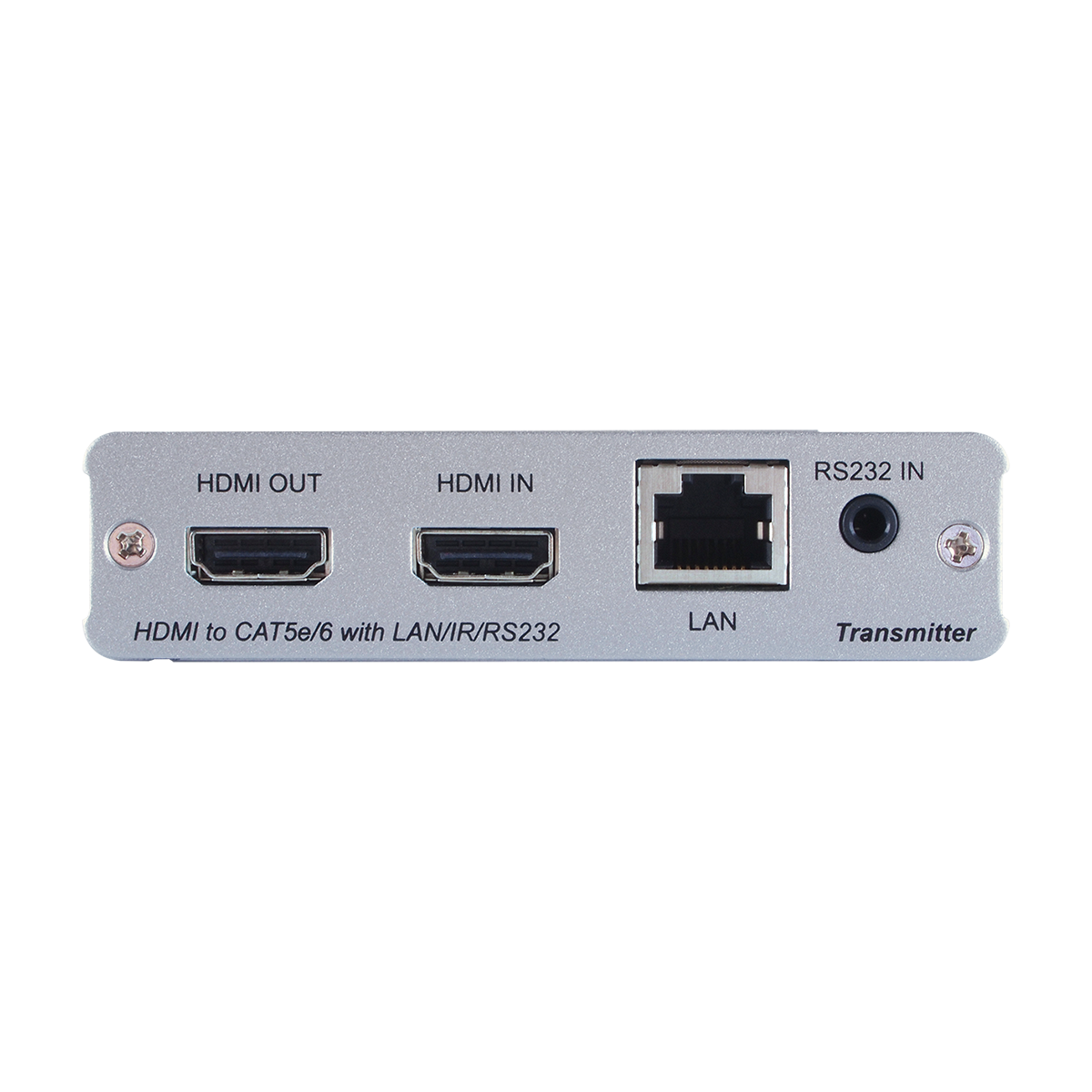

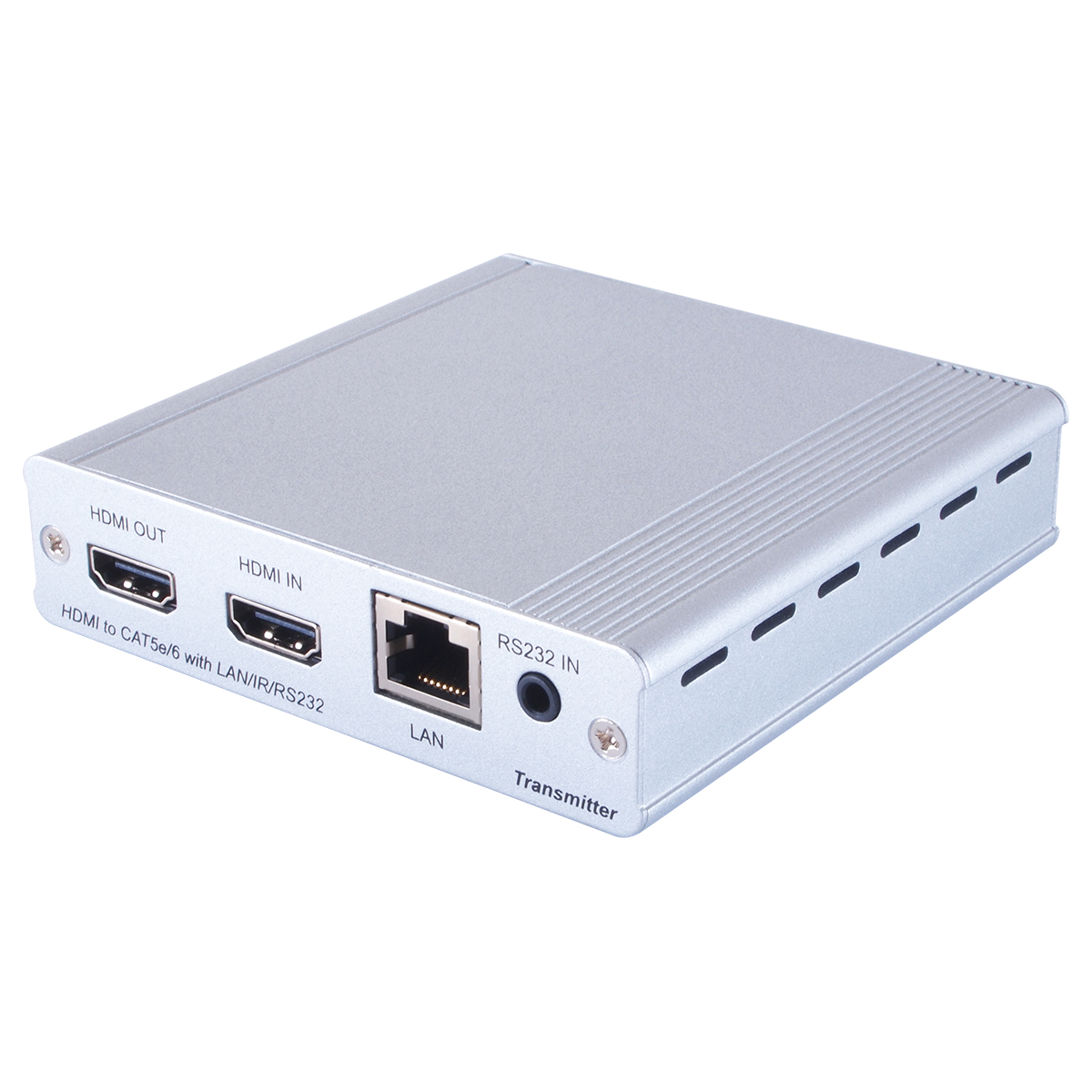

CHDBT-1H1CE HDMI to CAT5e/6 with LAN/IR/RS232
Please sign in so that we can notify you about a reply
The HDMI over HDMI and CAT5e/6/7 Transmitter can convert a single HDMI input, 2-way IR and RS-232 control and LAN serving to a single CAT5e/6/7 output and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 output can be connected to a CAT5e/6/7 to HDMI Receiver to extend the operating distance up to 100 meters. Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Bidirectional Power over Cable (PoC) function provides greater flexibility in installations.
Features
- Simultaneous HDMI and CAT5e/6/7 outputs
- Supports data rate from 250Mbps up to 3Gbps, Supports up to 4096x2160@60Hz YUV 4:2:0
- Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz sample rate)
- Supports distances up to 100 meters through CAT5e/6/7 cables
- Supports Ethernet network rate up to 100Mbps
- Can select Standard or TV EDID
- Provides 24V DC power to or received from compatible PoE Receiver through CAT5e/6/7, Supports control of devices via RS-232 and 2-way IR
- The 3D signal display follow by display TV’s EDID, Supports Bidirectional IR PoC
