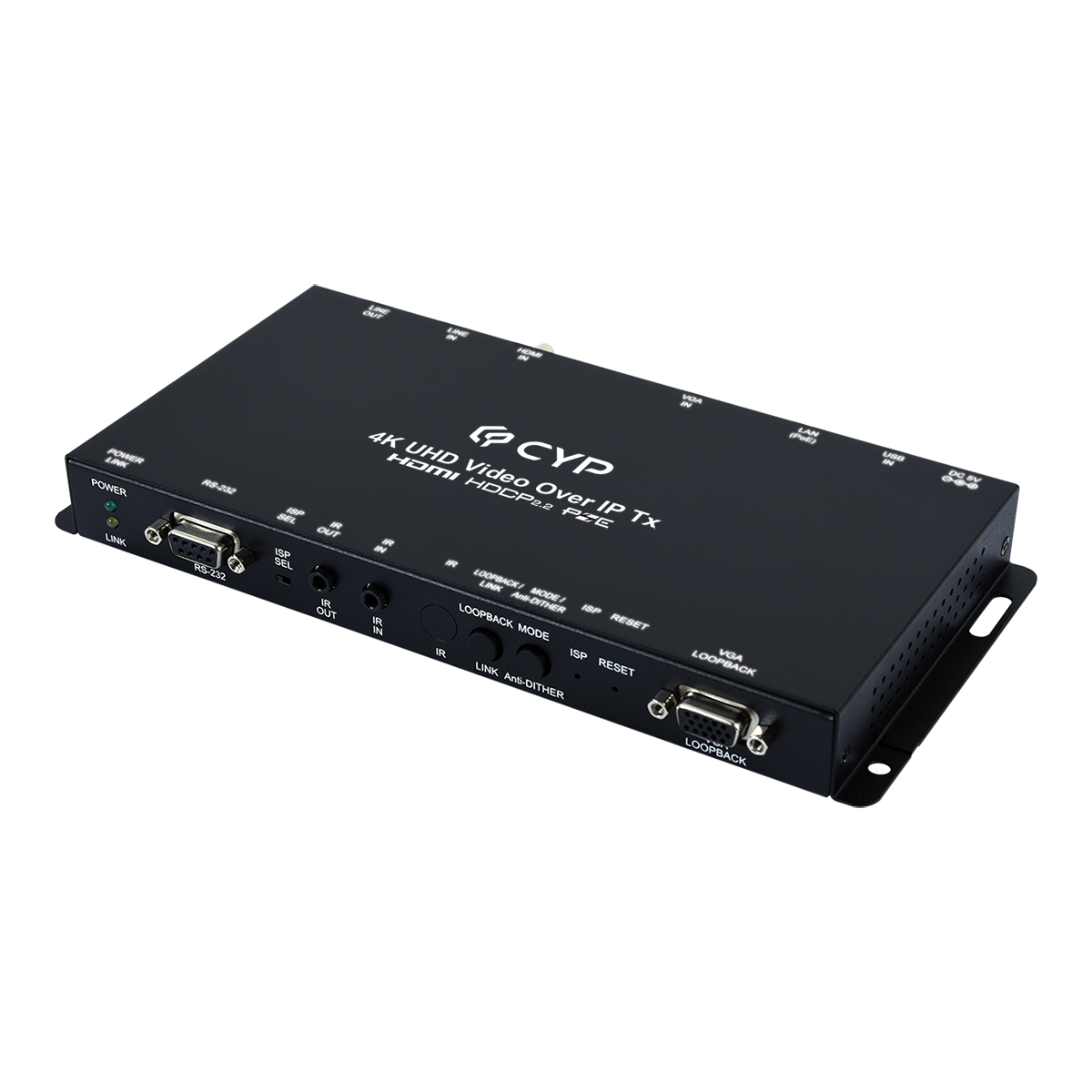

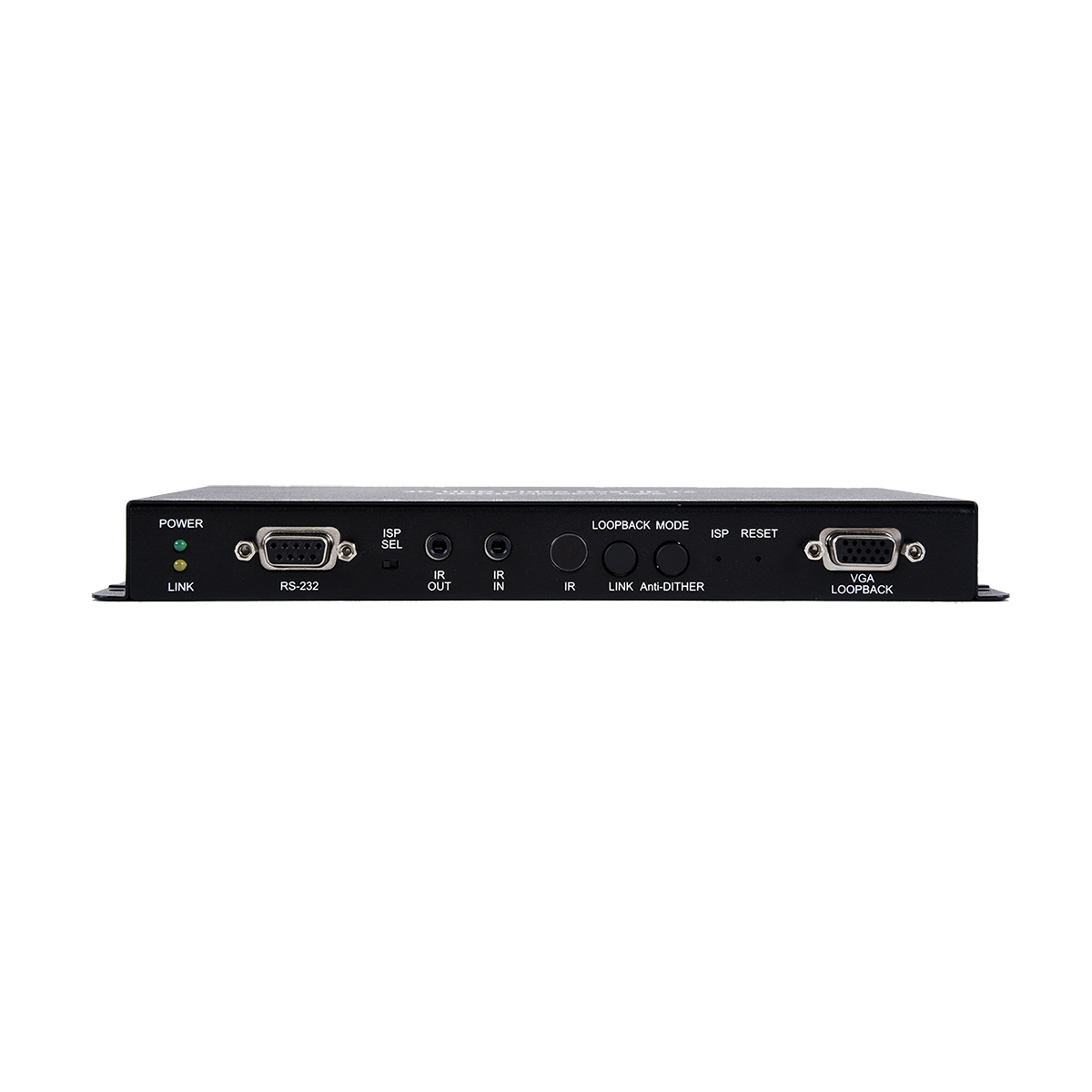

CH-U360TX HDMI/VGA Over IP Transmitter, 4K30 VoIP with KVM
Please sign in so that we can notify you about a reply
This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity.
Features- Video, audio and control transmission over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many) modes
- Support with 90° increments rotation
- The analog Line In on the Transmitter sends audio directly to the analog Line Out and is inserted into the HDMI output on connected Receivers
- The Mic In on the Receiver sends audio directly to the analog Line Out on the Transmitter
- Both Tx and Rx may powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
- Supports USB keyboard, mouse and storage extension and IR ,RS-232 bypass
- Unit can be controlled via WebGUI, Telnet, and front panel controls
Brand:
Cypress Technology
Product Type:
HDMI/VGA Over IP Transmitter
Specifications
Sound Field:
Stereo
Special Features:
Supports USB Keyboard, Mouse And Storage Extension And IR ,RS-232 Bypass, 4K30 Pixel,4K60(420) Pixel
Power Rating:
7.1W
Chassis Material:
Steel
Chassis Colour:
Black
Performance
Video Format:
4K
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:
1 HDMI (Type-A), 1xVGA, 1xUnbalanced Stereo (3.5mm)
Output Port Type:
1xVGA,1xCat.5e/6/7 (RJ45),1xUnbalanced Stereo (3.5mm)
Interface Type:
1xUSB Type-B, 1xIR Extender (3.5mm), 1xIR Blaster (3.5mm), 1xRS232
Power
Current Rating:
2.6A
Dimensions
Width:
23.1cm
Depth:
12cm
Height:
2.5cm
Weight:
660g
Other
Voltage Rating:
5V DC
