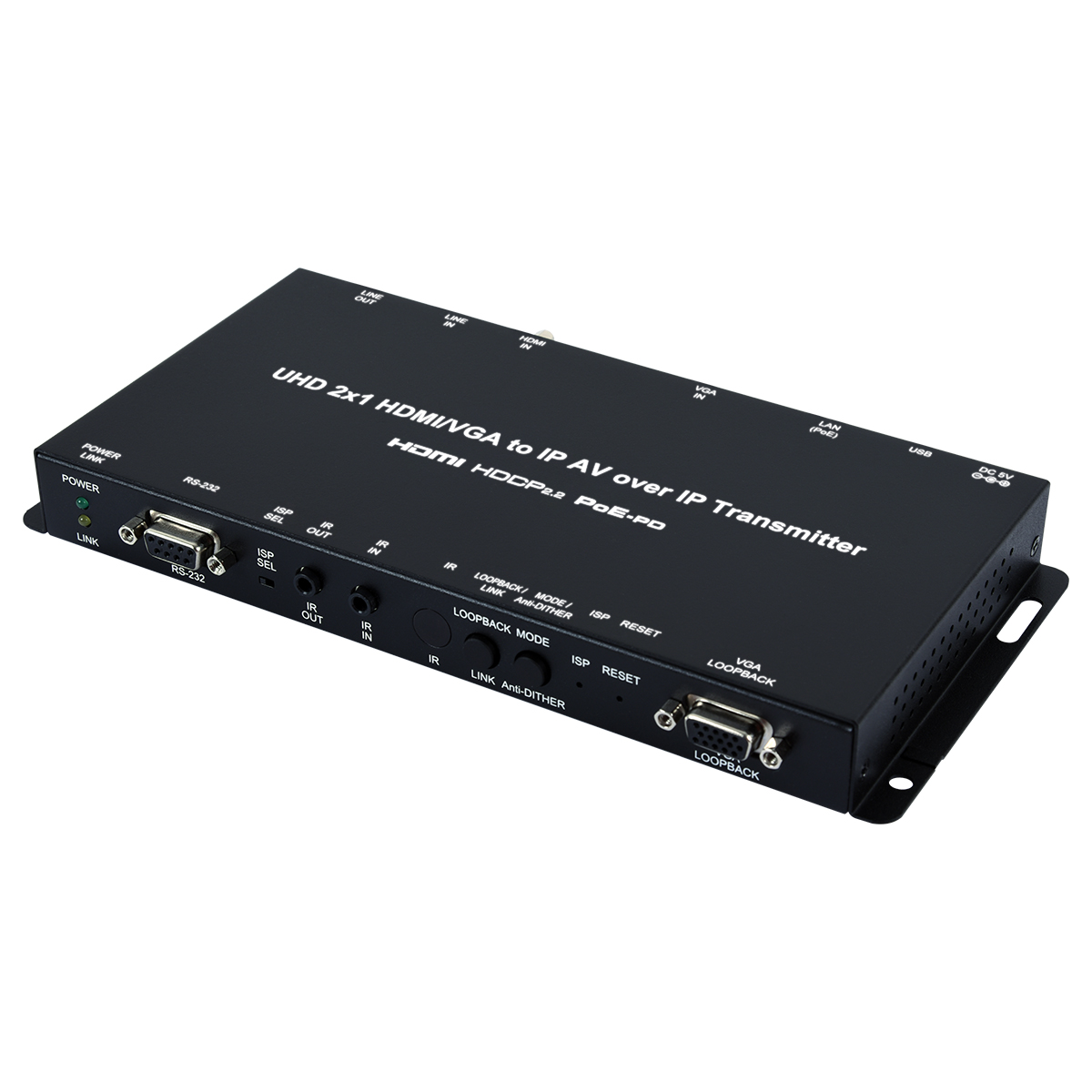

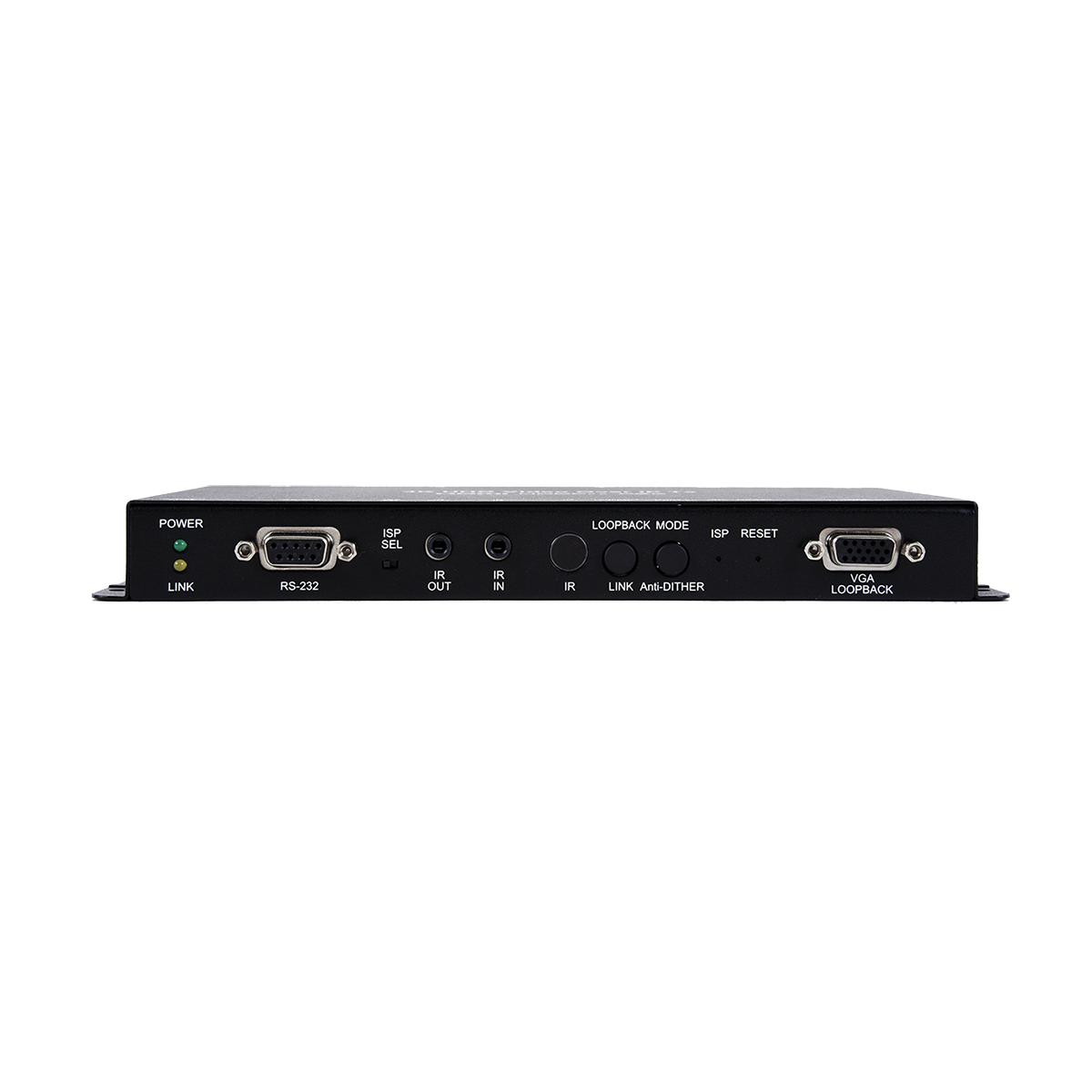

CH-U350TX 4K UHD HDMI/VGA over IP Transmitter with USB/KVM Extension
Please sign in so that we can notify you about a reply

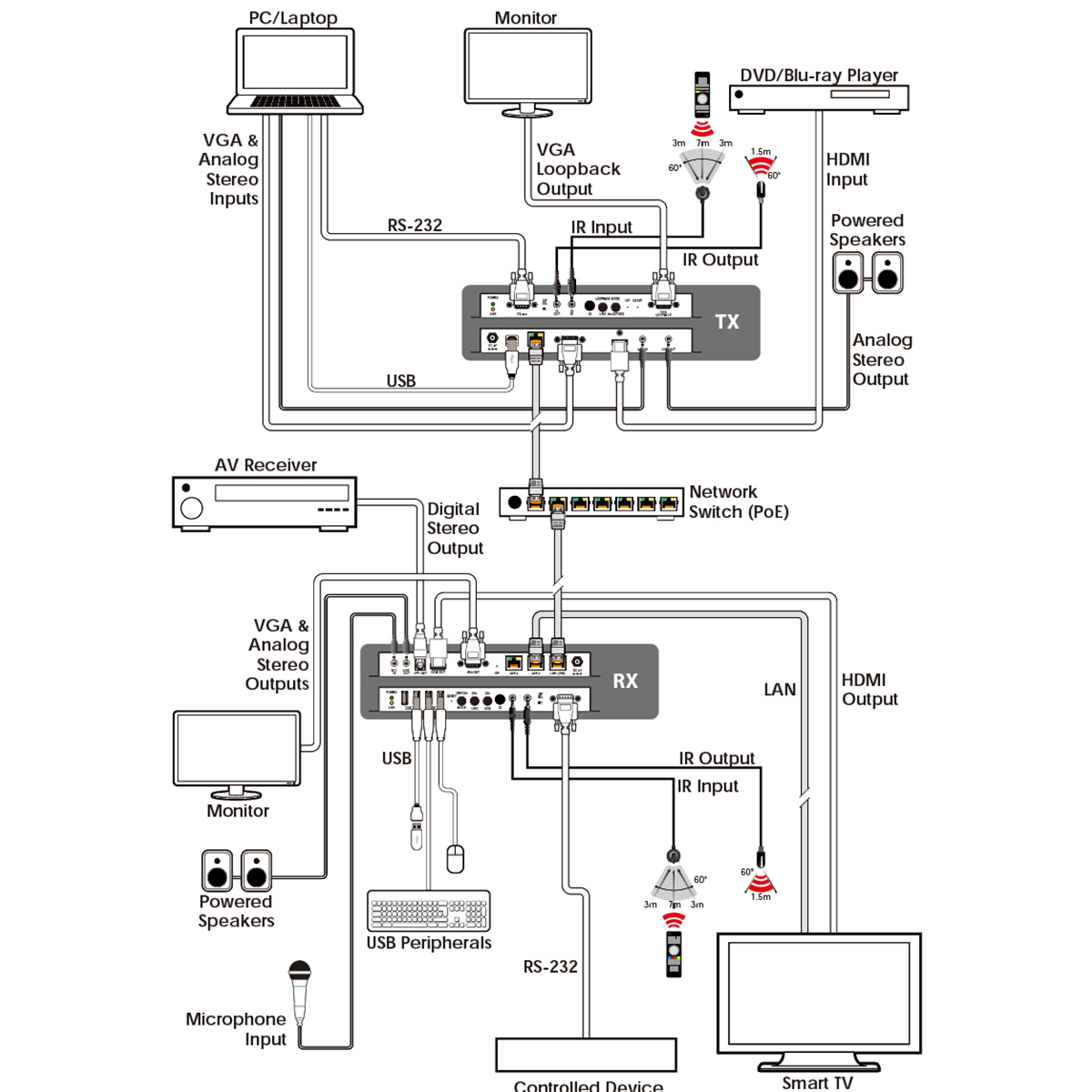

This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Defi nition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity.
Features
- Video, audio and control transmission over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many) modes
- Support with 90° increments rotation
- The analog Line In on the Transmitter sends audio directly to the analog Line Out and is inserted into the HDMI output on connected Receivers
- The Mic In on the Receiver sends audio directly to the analog Line Out on the Transmitter
- Both Tx and Rx may powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
- Supports USB keyboard, mouse and storage extension and IR ,RS-232 bypass
- Unit can be controlled via WebGUI, Telnet, and front panel controls
Brand:
Cypress Technology
Product Type:
HDMI/VGA Over IP Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Encryption:
8bits
Transmission Range:
100m
Sound Field:
Stereo
Special Features:
Video, Audio and Control Transmission Over TCP/IP in Unicast, Multi-Monitor Video Wall Support with 180° and 270° Rotation Options, Pass-Through of Audio Formats, Supports IR and RS-232 Bypass
Power Rating:
7.15W
Chassis Color:
Black
Chassis Material:
Steel
Applications:
HDMI/VGA/USB/Audio/IR/and RS-232 Extension, Multimedia Display on a Large Number of Displays Via Multicast, Hotel or Convention Centre Display Multi-Monitor Broadcast, Long Distance Data and Video Transmission Via Cascading, Distributed Video Matrix Syste
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
Performance
Video Format:
4K@60Hz 8bits YUV 4:2:0
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:
1xHDMI-Type A, 1xVGA, 1xUnbalanced Stereo (3.5mm)
Output Port Type:
1xVGA, 1xCAT.5e/6/7 (RJ45), 1xUnbalanced Stereo (3.5mm)
Interface Type:
WebGUI
Power
Current Rating:
2.6A
Dimensions
Width:
23.15cm
Depth:
12cm
Height:
2.5cm
Weight:
660g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
