CH-U331TXWPUD UHD HDMI/VGA over IP Transmitter with USB/KVM Wall Plate

Write a review
CH-U331TXWPUD
Cypress Technology
Out of stock
Log in to see price Add to wish list

The AVoIP wall plate transmitter forms a part of a 4K UHD multi-function extension system that is able to extend HDMI or VGA signals along with analog audio, USB 2.0, IR and serial data using the TCP/IP protocol over regular Gigabit Ethernet networks. When using standard Ethernet cables, this system supports the extension of AVoIP signals up to 100 meters and the extension distance can be further extended by using gigabit network switches. This allows the user to cascade the system without signal loss or introducing delay. The USB functionality allows the system to act like a remote USB hub which provides a flexible remote KVM platform. When the extension system’s units are in multicast mode, a single AV signal can be sent to a large number of receivers within the same local network without the additional receivers increasing the bandwidth requirements. Additionally, that same multicast signal can be used to create large mulitidisplay video walls with amazing simplicity. When combined with the optional IP Master Controller the functionality of the system expands exponentially. Its centralized web-based interface greatly simplifies control and management of large distributed video matrix or video wall systems adding to their flexibility in large home or commercial installations. Configuration information is provided via On Screen Display (OSD) and control is by WebGUI, Telnet, and front panel controls.

Features

  • Video, audio and control transmission over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many, many-to-many) modes
  • When connected, the analog Line In audio is automatically embedded into the transmitted signal for output on connected Receivers via HDMI and their analogLine Out ports
  • The Mic In on a connected Receiver will send audio directly to the analog Line Out on this Transmitter
  • May be powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
  • Supports USB keyboard, mouse and storage extension
Brand:
Cypress Technology
Specifications
Product Type:
Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
8bits
Transmission Range:
100m
Number of Channels:
Sound Field:
Stereo
Special Features:
Video, Audio and Control Transmission Over TCP/IP in Unicast, Multi-Monitor Video Wall Support with 180° and 270° Rotation Options, Pass-Through of Audio Formats, Supports IR and RS-232 Bypass, USB Keyboard, Mouse and Storage Extension
Power Rating:
10W
Chassis Color:
White
Chassis Material:
Aluminium
Applications:
HDMI/VGA/USB/Audio/IR/and RS-232 Extension, Multimedia Display on a Large Number of Displays Via Multicast, Hotel or Convention Centre Display Multi-Monitor Broadcast, Long Distance Data and Video Transmission Via Cascading, Distributed Video Matrix Syste
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
Performance
Video Format:
1080pixels, 4K
Impedance Rating:
48.2kΩ
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:
1xHDMI-Type A, 1xVGA (HD-15), 1xStereo Audio (3.5mm)
Output Port Type:
1xStereo Audio (3.5mm)
Interface Type:
WebGUI
Dimensions
Width:
10.344cm
Depth:
5.4cm
Height:
9.1cm
Weight:
250g
Other
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed

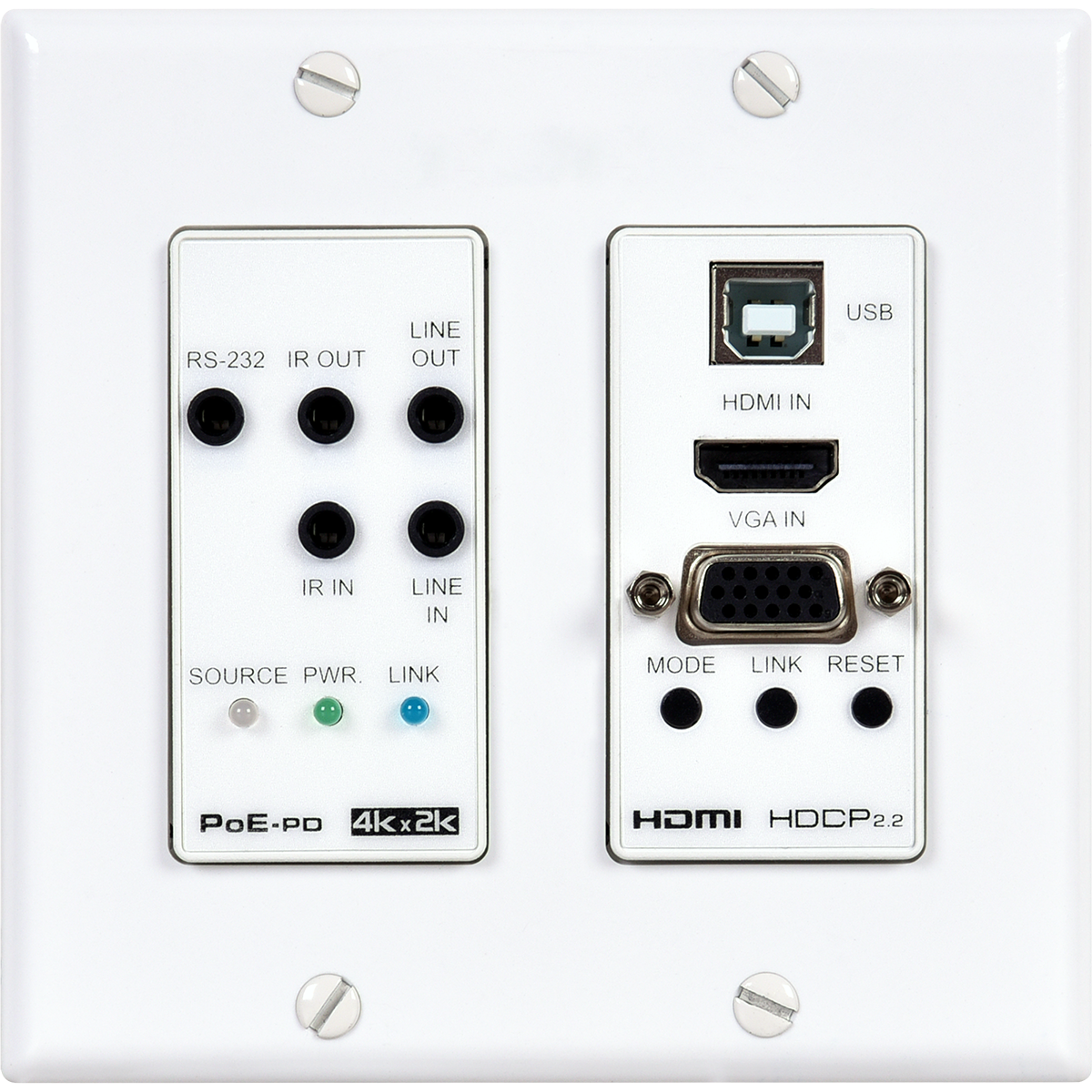

CH-U331TXWPUD 1 (CH-U331TXWPUD_Front_0804082201418.png, 2,179 Kb) [Download]
