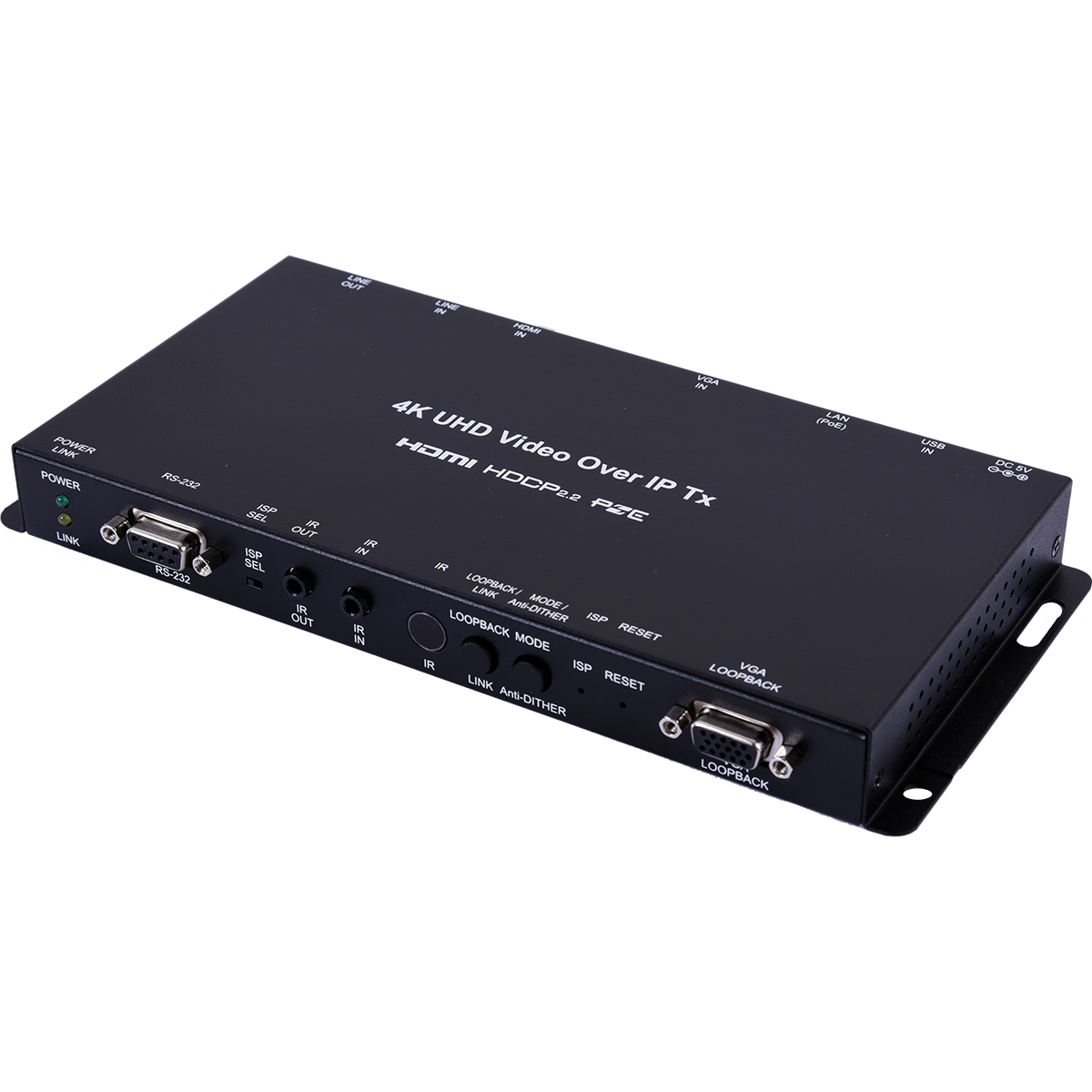

CH-U331TX UHD HDMI/VGA Over IP Transmitter with KVM Extension, 100m Range
Please sign in so that we can notify you about a reply
The CH-U331TX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. The Receiver unit includes a built-in 3 port Ethernet switch which can be used to extend and expand a basic system without the need for an external network switch.
Features- Video, audio and control transmission over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many, many-to-many) modes
- When connected, the analog Line In audio is automatically embedded into the transmitted signal for output on connected Receivers via HDMI and their analog Line Out ports
- The Mic In on a connected Receiver will send audio directly to the analog Line Out on this Transmitter
Brand:
Cypress Technology
Product Type:
UHD HDMI/VGA Over IP Transmitter with KVM Extension
Specifications
Maximum Operating Temperature:
40°C
Encryption:
8-Bit
Transmission Range:
100m
Special Features:
Supports USB Keyboard, Mouse and Storage Extension, Video, Audio and Control Transmission Over TCP/IP in Unicast (Point-to Point) or Multicast (Single-to-Many, Many-to-Many) Modes
Power Rating:
7.15W
Chassis Material:
Metal
Applications:
HDMI, VGA, USB, Audio, IR, and RS-232 Extension, Broadcasting a System Over a Single Cat.5e/6 Cable, Multimedia Display on a Large Number of Displays Via Multicast, Hotel or Convention Center Display Multi-Monitor Broadcast, Long Distance Data and Video T
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Includes:
(1) IR Extender Cable, (1) IR Blaster Cable, (1) 5V/2.6A DC Power Adaptor, (1) Operation Manual
Inputs and Ports
Input Port Type:

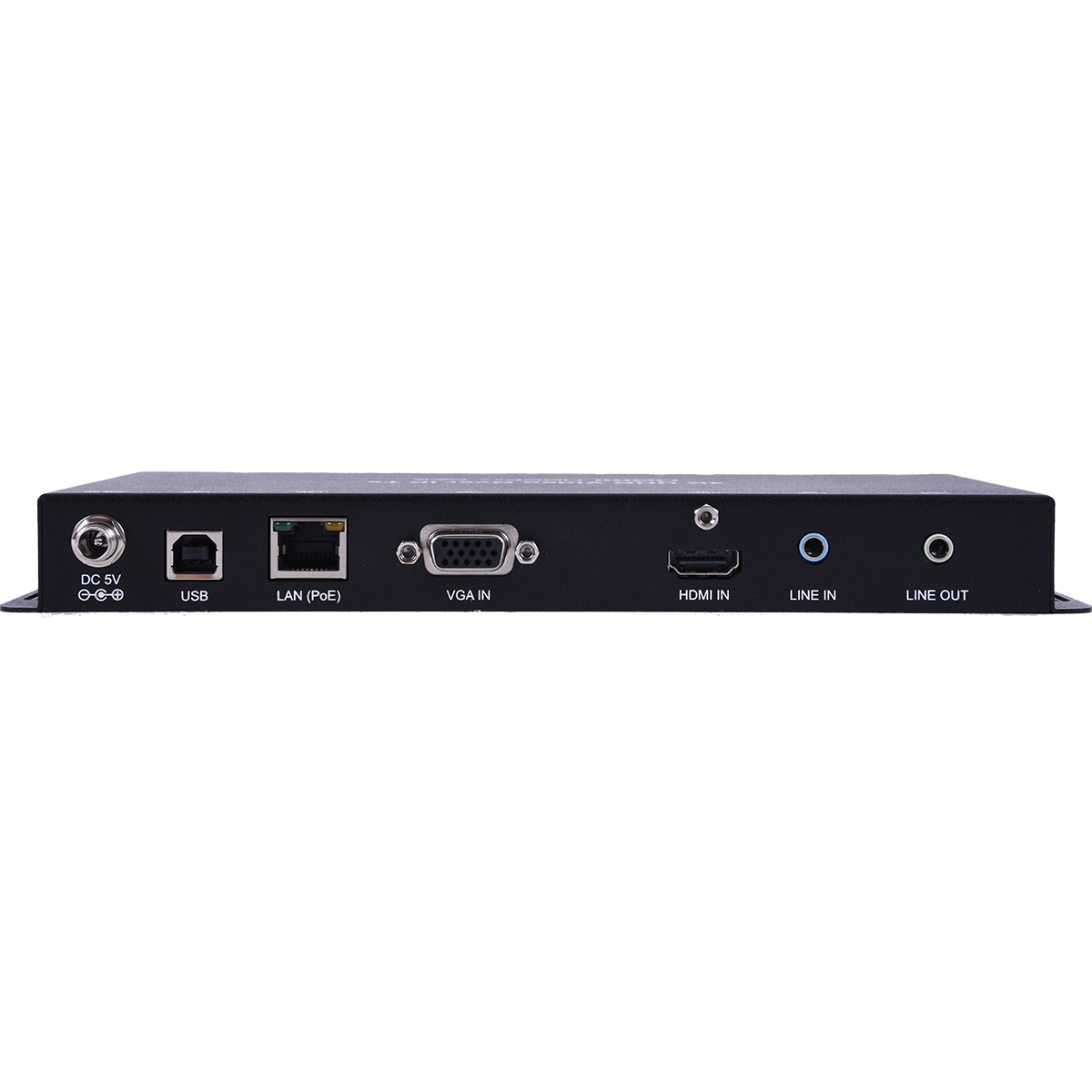

1xHDMI (Type-A), 1xVGA (HD-15), 1xAnalog Stereo (3.5mm)
Output Port Type:
1xVGA (HD-15), 1xAnalog Stereo (3.5mm)
Interface Type:
WebGUI
Power
Current Rating:
2.6A
Dimensions
Width:
23.1cm
Depth:
12cm
Height:
2.5cm
Weight:
660g
Other
Voltage Rating:
5V DC
Standards Met:
US, EU, CE, FCC, UL
