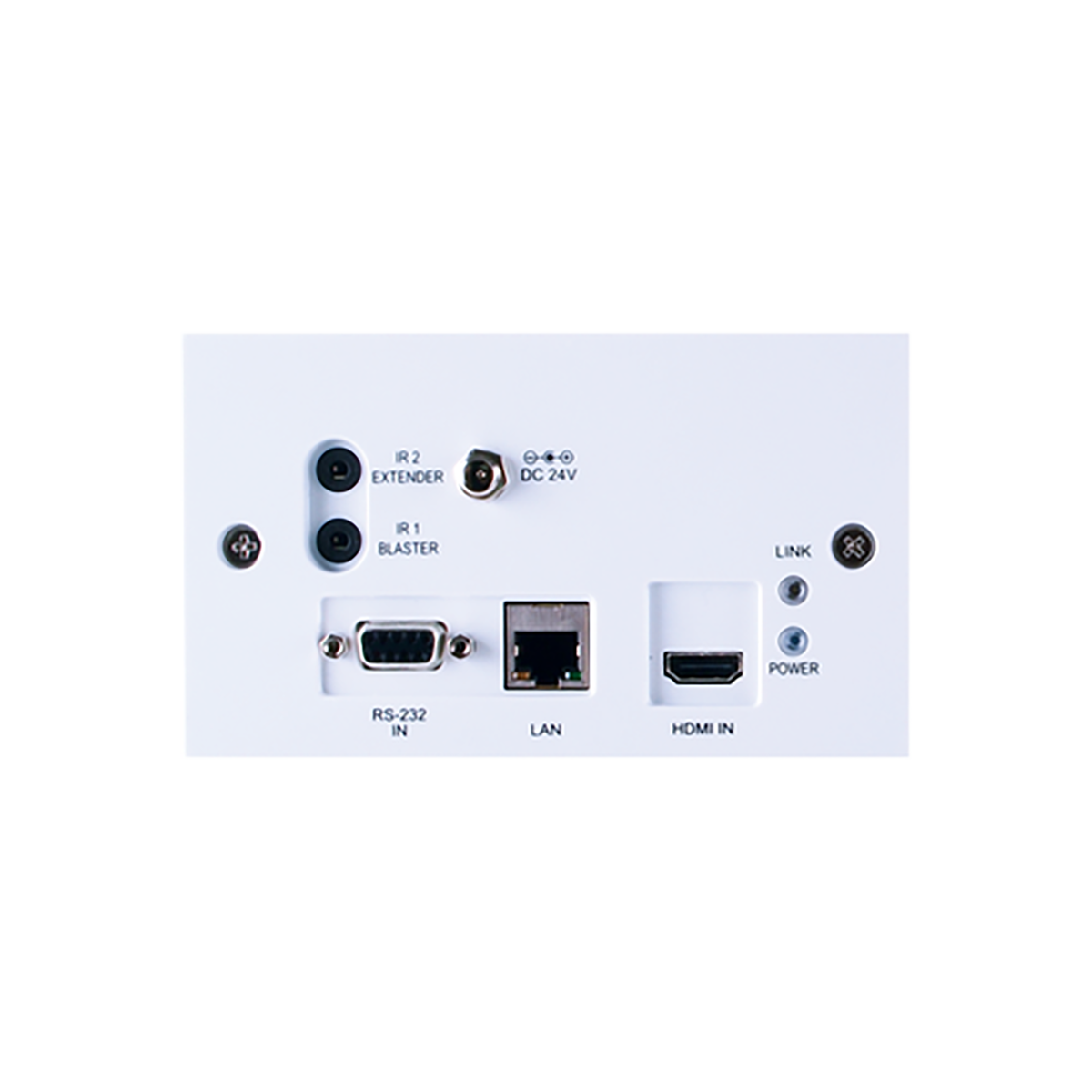

CH-507TXWPBD 4K60 (4:2:0) HDMI over HDBaseT Wallplate Transmitter with IR, RS-232, Bidirectional PoC & LAN (2 Gang UK)
Please sign in so that we can notify you about a reply
The HDMI over Single CAT5e/6/7 Wall-plate Transmitter and Receiver set can send uncompressed video/audio and IP data over a single run of CAT5e/6/7 cable up to 100 meters. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has bi-directional Power over Cable (PoC) functionality that allows for greater flexibility in installations.
Features
- HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant
- Supports HDCP repeater and CEC bypass functions
- Simultaneous transmission of uncompressed video/audio and data over a single CAT5e/6/7 cable up to 100m/328ft
- HDBaseT™ 5Play convergence: uncompressed high-definition Video and Audio, LAN serving, bi-directional Power over Cable (PoC) and IR/RS-232 Control pass-through
- Supports uncompressed video up to 4K2K resolution (3840×2160@30 Hz or 4096×2160@24 Hz)
- Supports pass-through of high-definition audio formats - LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Wall-plate design and installation friendly
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDBaseT Wallplate Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
12bits
Transmission Range:
100m
Special Features:
HDCP Repeater and CEC Bypass Functions, Pass-Through of High-Definition Audio Formats, Wall-Plate Design and Installation Friendly
Power Rating:
12W (PoC), 9W (Stand Alone)
Chassis Material:
Plastic
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
Performance
Video Format:
1080pixels (FHD Video), 4K30 (UHD Video)
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:
1xHDMI, 1xIR Extender, 1xLAN, 1xRS-232
Output Port Type:
1xCAT5e/6/7, 1xIR Blaster
Power
Current Rating:
1.25A
Dimensions
Width:
14.57cm
Depth:
8.5cm
Height:
3.9cm
Weight:
156g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
